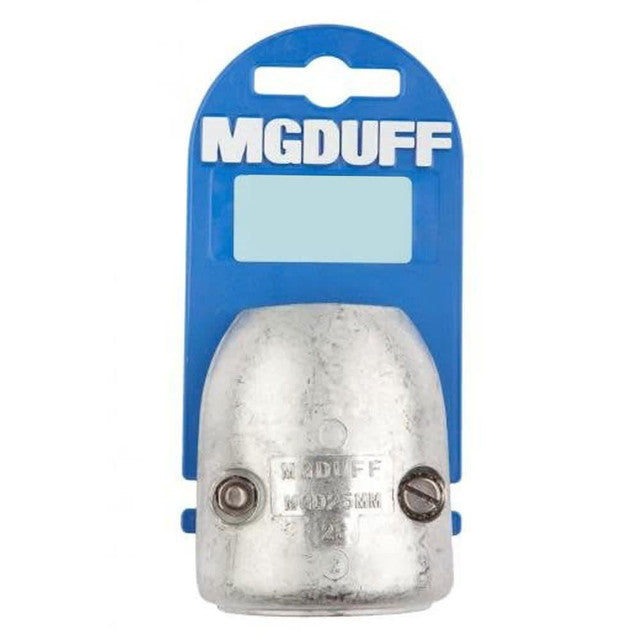

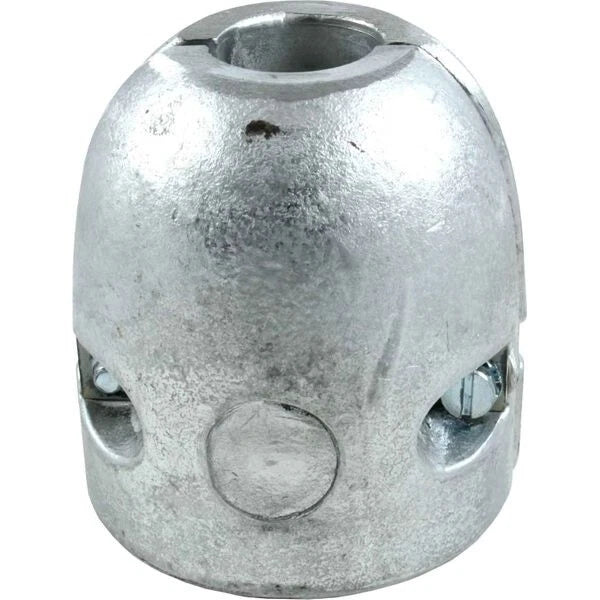

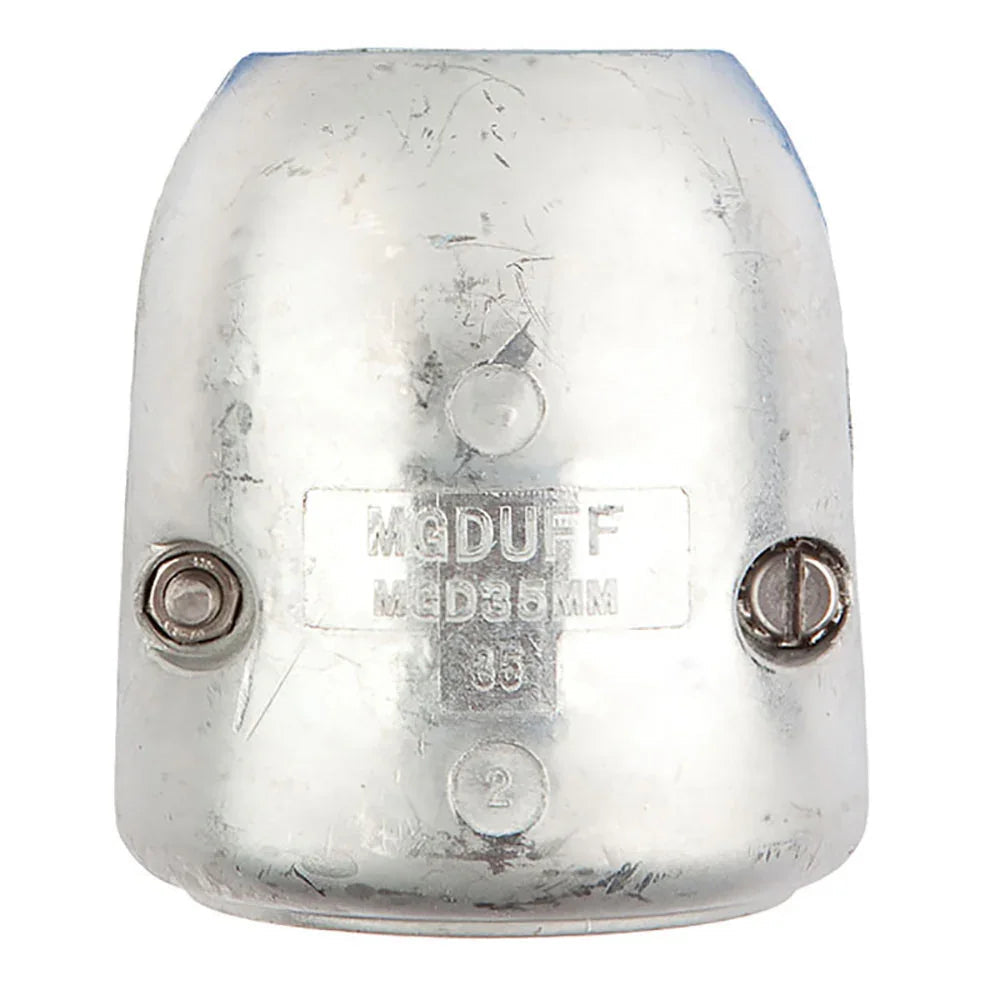

MG Duff MGD35MM Zinc Shaft Anode 35mm Marine Propeller Corrosion Protection
MG Duff MGD35MM Zinc Shaft Anode 35mm Marine Propeller Corrosion Protection
Couldn't load pickup availability
MG Duff Zinc Shaft Anode 35mm
Premium MGD-Series Protection for Salt Water
Protect your vessel's running gear with the MG Duff MGD35MM zinc shaft anode. Part of the highly-regarded MGD range, this anode is specifically engineered for high shaft speeds and harsh marine environments. Manufactured from high-grade zinc alloy to US Mil-Spec standards, it provides exceptional cathodic protection to prevent galvanic corrosion on your propeller shaft and propeller.
Key Features
- ✔ High-Speed Design: Streamlined for efficiency.
- ✔ Stainless Steel Fixings: Socket head bolts with captive nuts.
- ✔ Core Bar Insert: Prevents the anode from vibrating loose.
- ✔ Salt Water Ready: Military-grade zinc alloy.
Technical Specs
| Shaft Diameter: | 35 mm |
| Outer Diameter: | 69 mm |
| Length: | 78 mm |
| Weight: | 1.13 kg |
| Material: | Zinc Alloy |
| Fixing Type: | Allen Bolt (Socket Head) |
Compatibility / Fitment Guide
| System | Application | Notes |
|---|---|---|
| Propeller Shaft | 35mm Metric Shafts | Universal fit for 35mm diameter shafts |
| Water Type | Salt Water Only | Do not use zinc in fresh water |
OEM Cross Reference
| Brand | Part Number |
| MG Duff | MGD35MM / MGD35 |
| Martyr | CM35Z |
| Tecnoseal | 00135 |
| Technoseal | ZS35 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine MG Duff product, a leading name in marine cathodic protection for over 60 years.
How do I know if it is compatible?
Measure the diameter of your propeller shaft with a caliper. If it measures exactly 35mm, this is the correct anode for your application.
What is the benefit of the "Core Bar" design?
The MGD range features a specialized core bar that prevents the anode from coming loose as the zinc erodes. This is essential for high-speed shafts where vibration can cause standard anodes to slip or rattle.
Note: Always ensure a clean metal-to-metal contact between the shaft and the anode for effective protection. Visit 4boats.co.uk for our full range of marine equipment.
