Nuova Rade Oval Boat Drain Socket & Plug 48x36mm White RIB Dinghy 16688
Nuova Rade Oval Boat Drain Socket & Plug 48x36mm White RIB Dinghy 16688
Couldn't load pickup availability

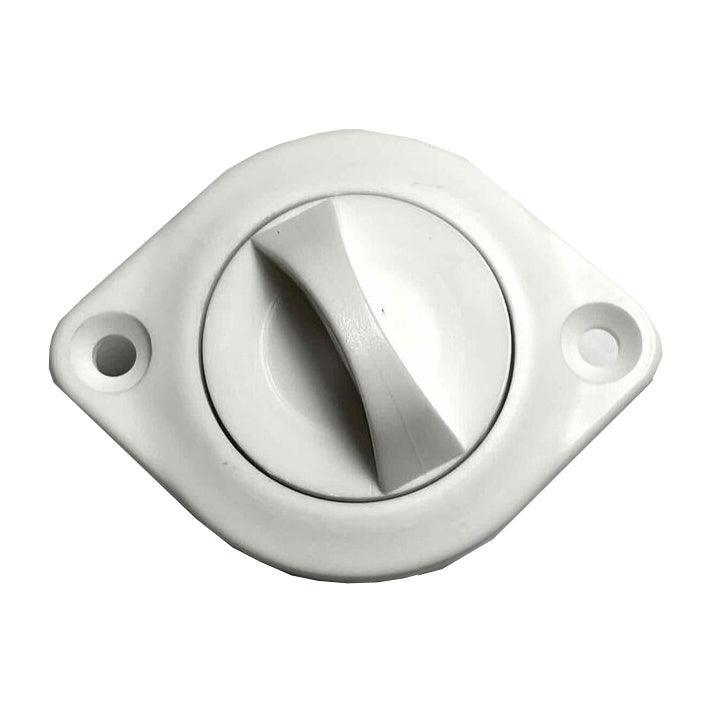

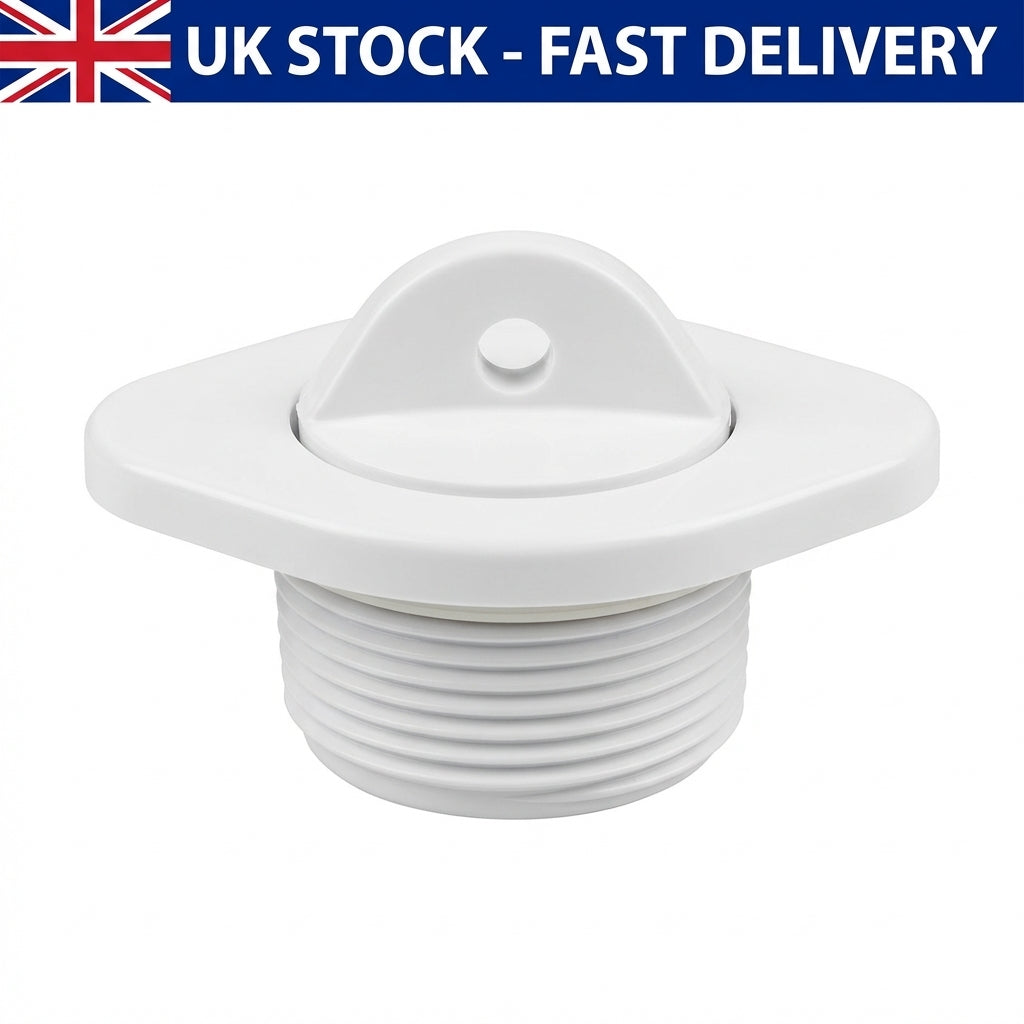

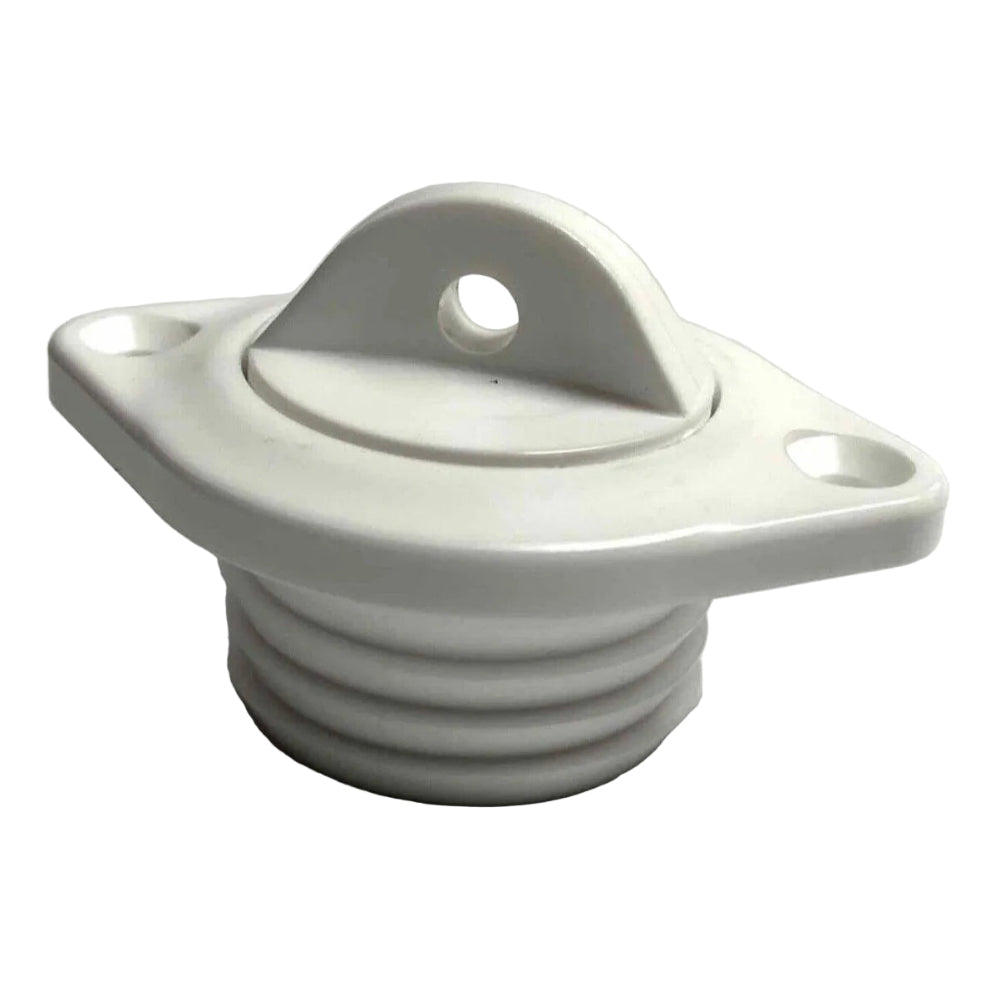

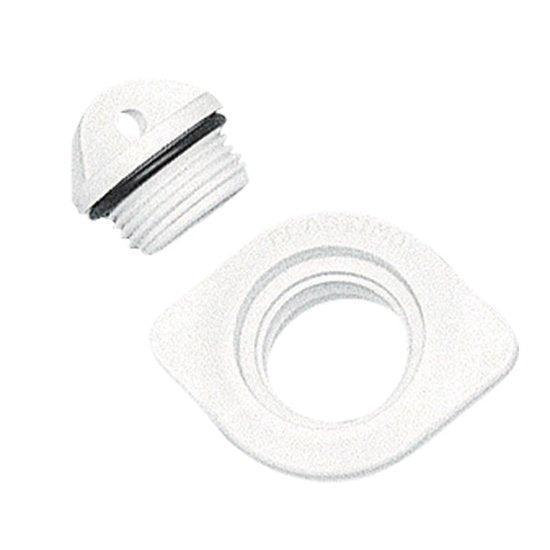

Oval Drain Socket with Plug (48x36mm)
Premium Nuova Rade Marine Hardware
This Nuova Rade 16688 Oval Drain Socket is a high-quality plumbing solution designed for modern marine applications. Featuring a "Plain" low-profile flange without pre-drilled fixing holes, it is ideal for installations where solvent bonding or custom mounting is preferred, providing a sleek and unobstructed finish on your deck or transom.
Key Features
- ✔ Plain flange (No fixing holes) for clean look
- ✔ Watertight O-ring seal on screw plug
- ✔ UV-resistant marine polymer construction
- ✔ Low-profile 28mm total height

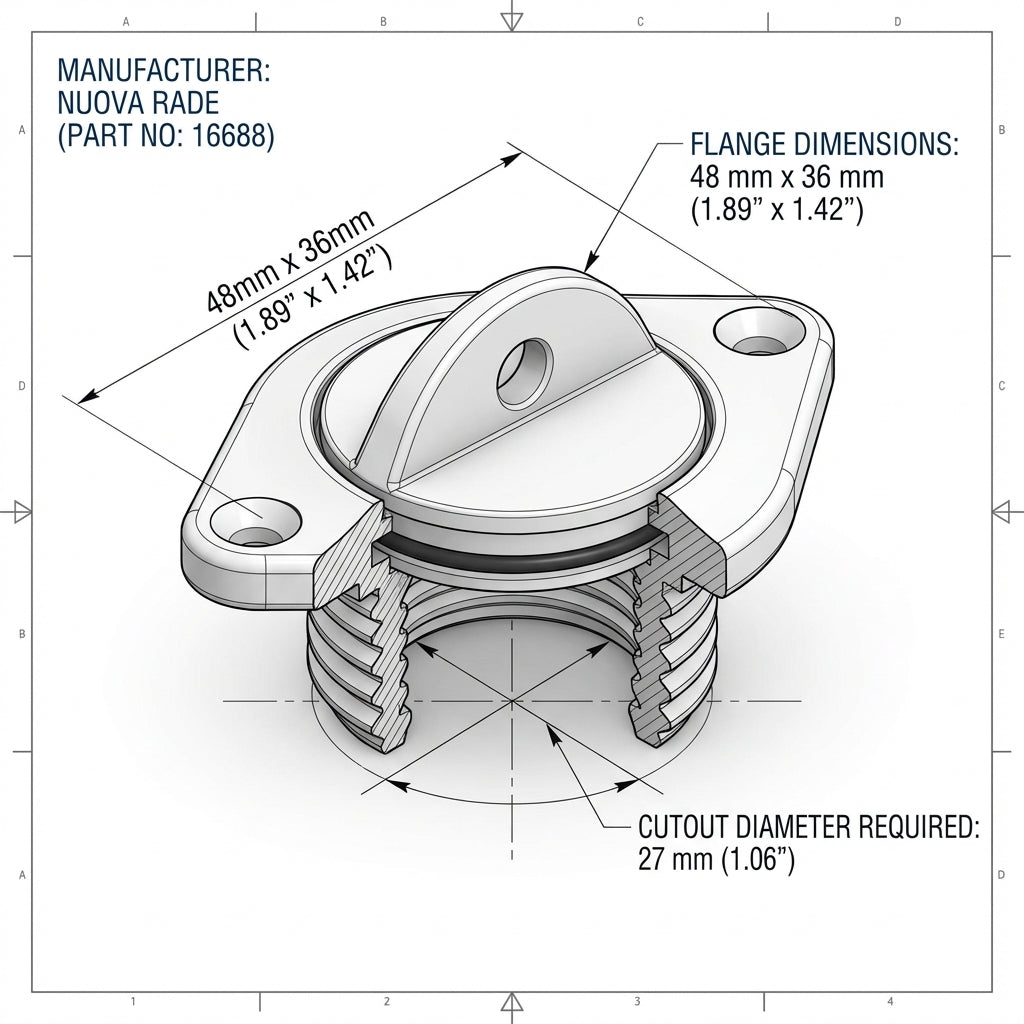

Technical Specs
| Flange Dimensions: | 48mm x 36mm |
| Cutout Required: | 27mm Ø |
| Internal Diameter: | 19mm |
| Depth Below Deck: | 15mm |
| Total Height: | 28mm |
| Material: | White Polyamide |
Compatibility / Fitment Guide
| Application | Compatibility | Notes |
|---|---|---|
| Inflatable Boats | Talamex Aqualine, Zodiac, Highfield | Commonly used on transoms |
| Dinghies / RIBs | Small Fiberglass & PVC Boats | Standard 27mm hole required |
| Marine Plumbing | General Deck Drainage | Accepts 19mm hose |
OEM Cross Reference
| Nuova Rade | 16688 |
| Lalizas | 16688 |
| EAN / Barcode | 5204980166885 |
Questions & Answers
Is this a genuine original part?
This is a premium quality Nuova Rade part, manufactured in Italy to strict marine standards.
How do I know if it is compatible?
We recommend checking the SKU (16688) and the dimensions. This part is a standard fit for most small boats requiring a 48x36mm oval flange and a 27mm cutout.
Does this version have screw holes?
No, this is the "Plain" version (Ref: 16688). It is designed for a flush finish without external screw holes, typically installed using marine-grade adhesive or sealant.
Note: Please verify your original cutout size and flange dimensions before purchasing. Professional installation recommended for hull integrity.
