MODULAR DESIGN: This unit is supplied as the tank body only (W/O Plate). It allows boat owners to customize the tank for Fuel, Fresh Water, or Waste Water by simply selecting the corresponding Easy Switch hatch plate (sold separately).

Key Features

• ✔ CE Approved & ISO 21487 / ISO 8099 Compliant
• ✔ Recyclable High-Density Polyethylene
• ✔ Manual Locking Pin for secure hatch sealing
• ✔ Easy-clean internal design with large hatch access
• ✔ Integrated baffle to reduce liquid splashing

Technical Specs

Capacity:	64 Litres
Length:	650 mm
Width:	360 mm
Height (Tank):	305 mm
Height (inc. Fittings):	~405 mm
Material:	HDPE

Application	Required Plate Color	Notes
Fuel (Petrol/Diesel)	Red Plate	Diesel requires return line kit 197497
Fresh Water	Blue Plate	Food-grade safe material
Waste (Black/Grey)	Brown Plate	ISO 8099 certified for sanitation

Is this a genuine original part?

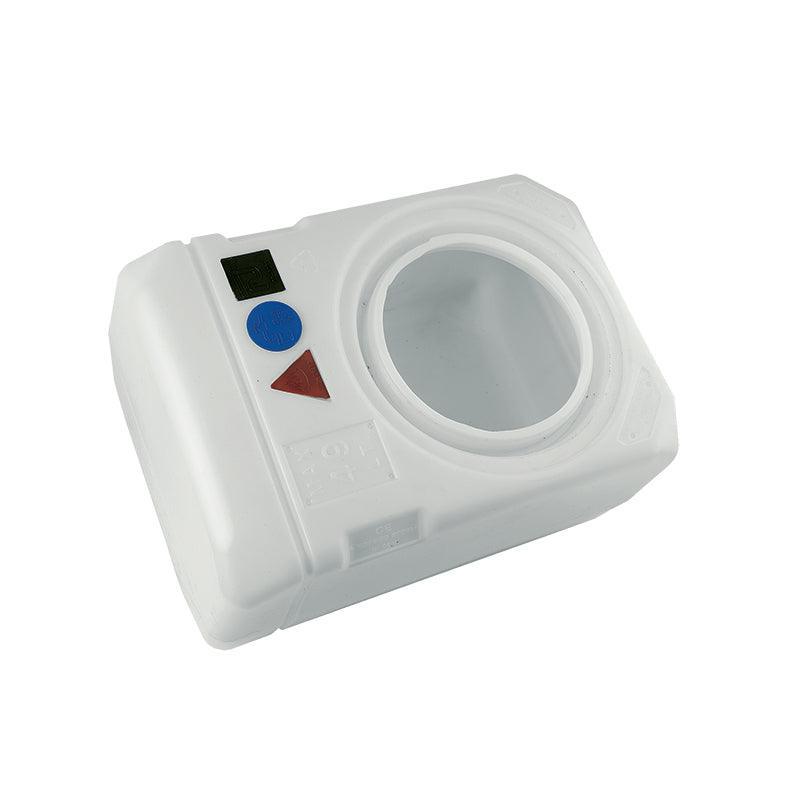

Yes, this is an authentic Nuova Rade Diablo tank body, manufactured in Italy to the highest marine standards.

Why is there no lid/plate included?

The Diablo range is modular. Because the same tank can be used for fuel, water, or waste, the "Easy Switch" lids are sold separately so you only pay for the specific fittings your installation requires.

How much clearance do I need above the tank?

While the tank body is 305mm high, we recommend allowing a total height of 405mm to accommodate the Easy Switch plate, hose connectors, and pipe bends.
