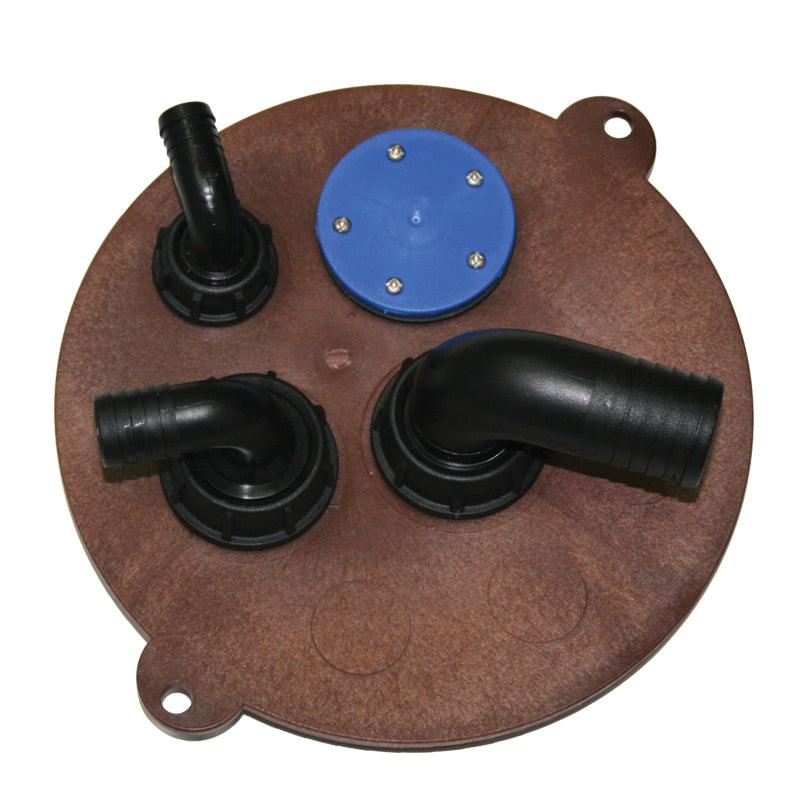

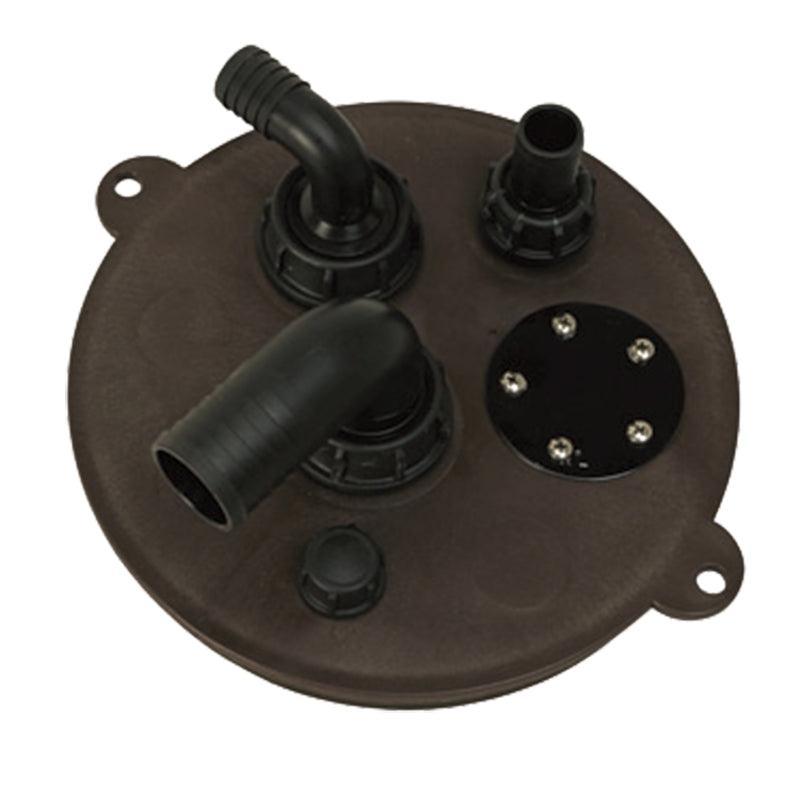

RELIABILITY: Engineered with a secure locking pin to prevent accidental loosening and high-grade gaskets to ensure an odor-free and leak-proof seal in marine environments.

Key Features

• ✔ Easy Switch System: Manual rotation for quick access
• ✔ Color-Coded: Brown for Waste/Black Water
• ✔ Odor Protection: Heavy-duty gasket included
• ✔ Direct Fit: Designed for 230mm profile tanks

Technical Specs

Application:	Waste / Black Water
Tank Height:	230 mm (9.06")
Material:	Chemical Resistant HDPE
Connector 1:	90° Ø38mm (1½” thread)
Connector 2:	90° Ø25mm (1½” thread)
Breather Set:	Ø25mm & Ø20mm (1'' thread)

Tank Model	Height / Volume	Tank Length
Nuova Rade 197477	230mm / 37 Litre	500 mm
Nuova Rade 197478	230mm / 48 Litre	650 mm
Nuova Rade 197479	230mm / 60 Litre	800 mm
Nuova Rade 197480	230mm / 70 Litre	950 mm
Nuova Rade 197481	230mm / 82 Litre	1100 mm

Is this a genuine original part?

This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.

How do I know if it is compatible?

This plate is strictly for the Diablo series tanks with a 230mm height. If your tank is 305mm high, you will require the larger capacity plate (available at 4boats.co.uk).

Does it include the level sender/gauge?

No, this kit includes the plate, gaskets, and plumbing connectors. It features a mounting port for a standard 5-hole level sender, which must be purchased separately.
