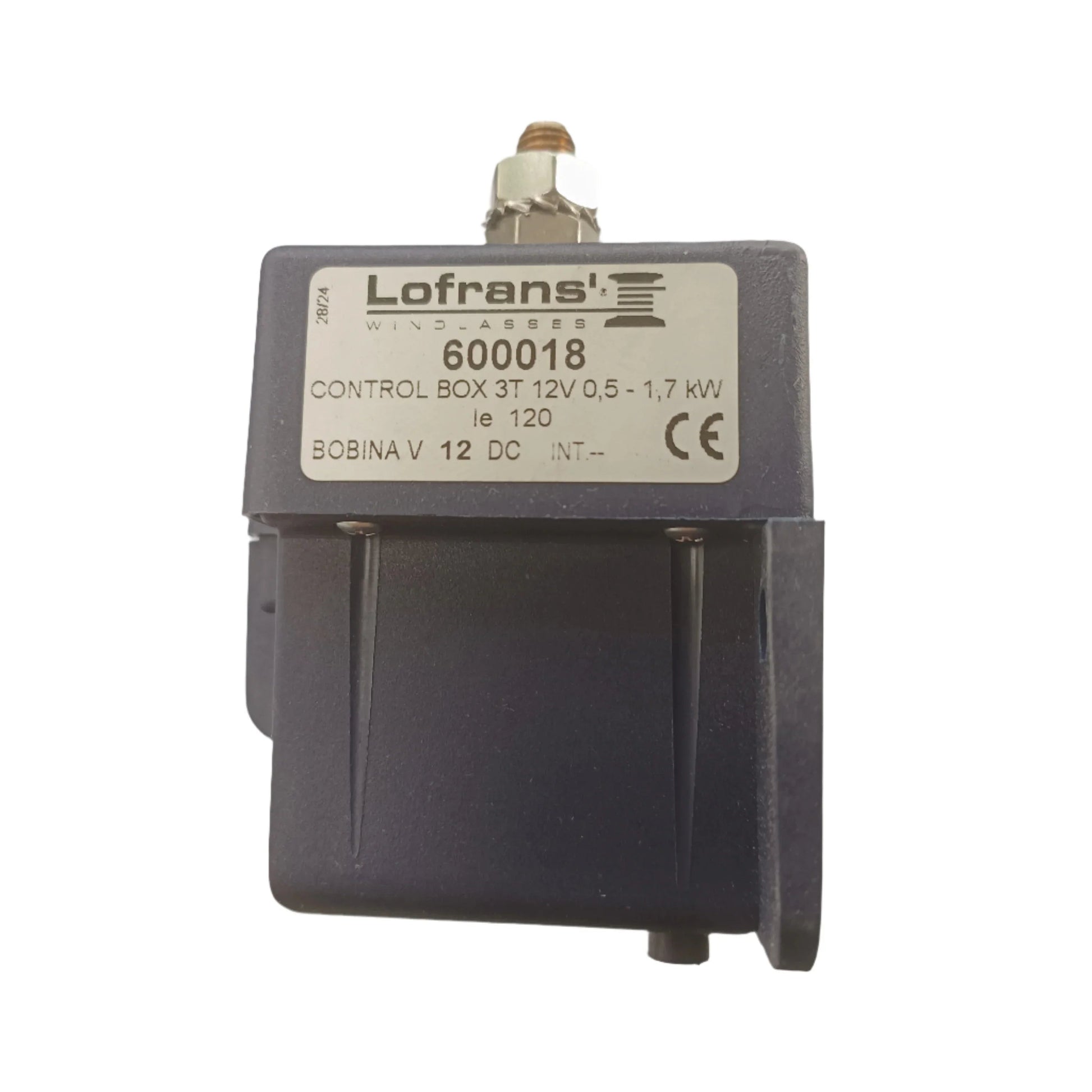

Lofrans 600018 Control Box 3T 12V 0.5-1.7kW Anchor Windlass Solenoid Relay
Lofrans 600018 Control Box 3T 12V 0.5-1.7kW Anchor Windlass Solenoid Relay
Couldn't load pickup availability

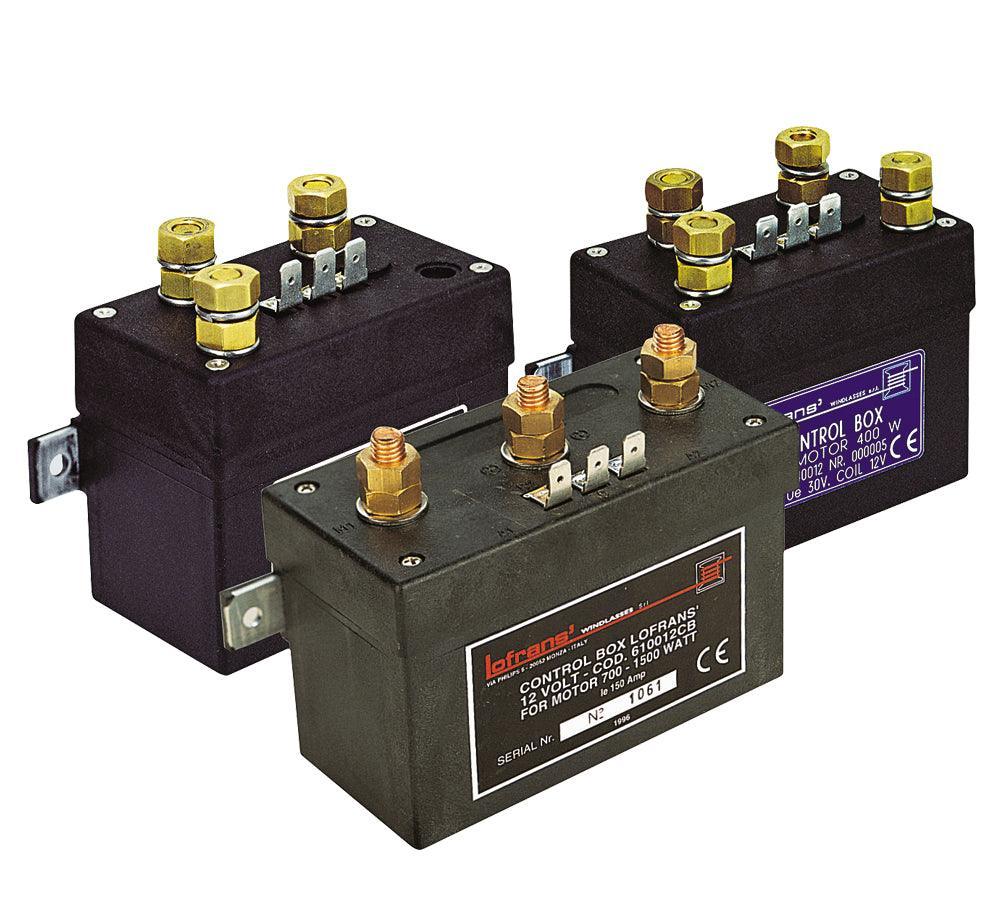

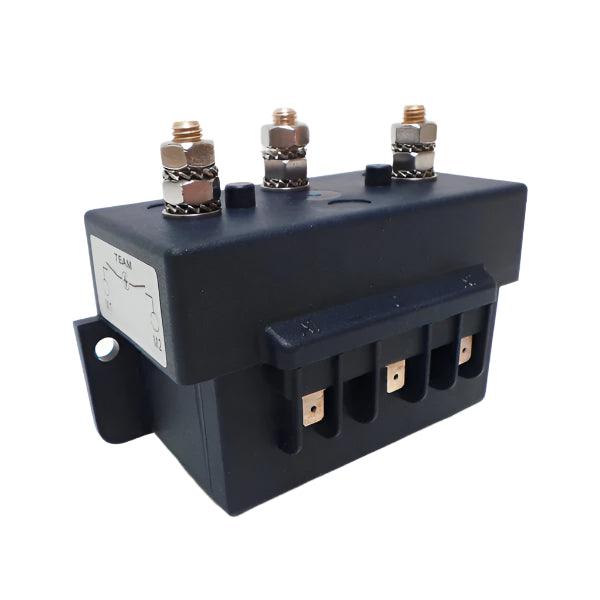

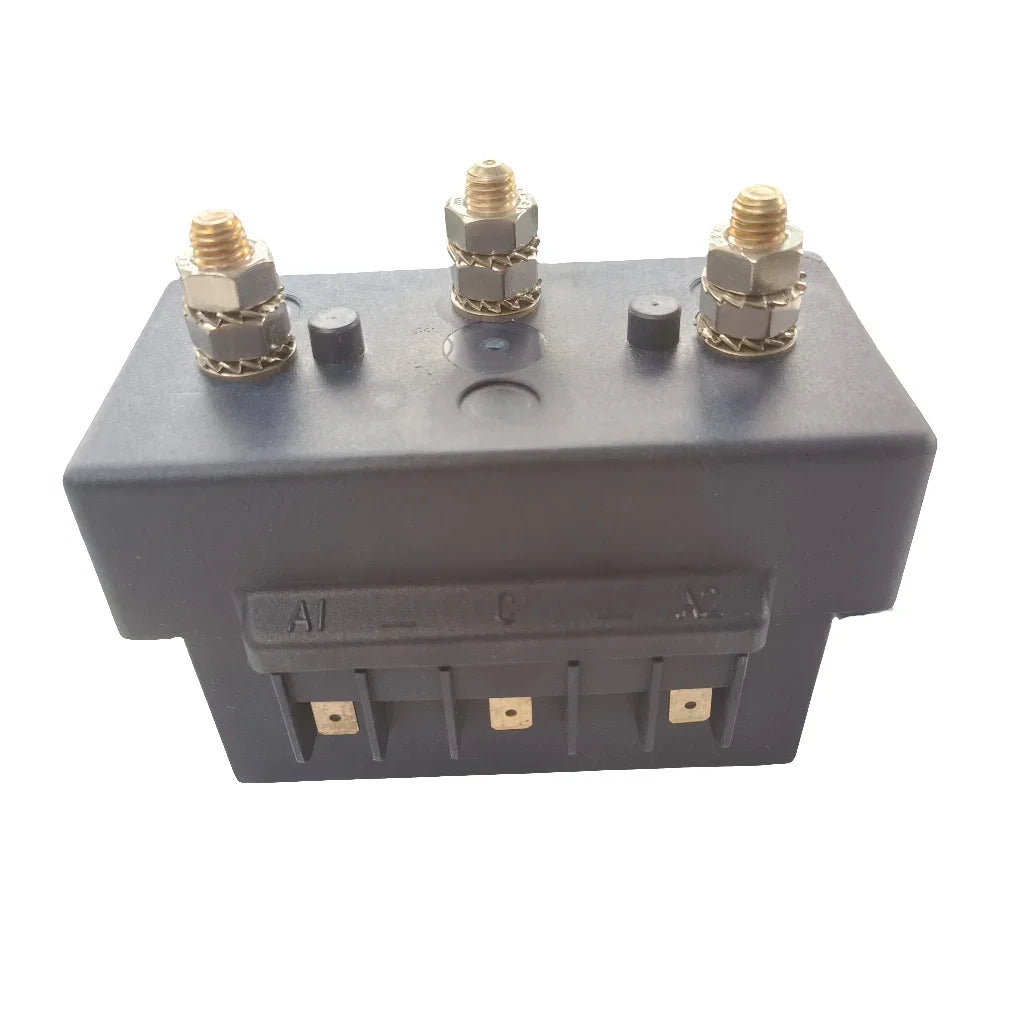

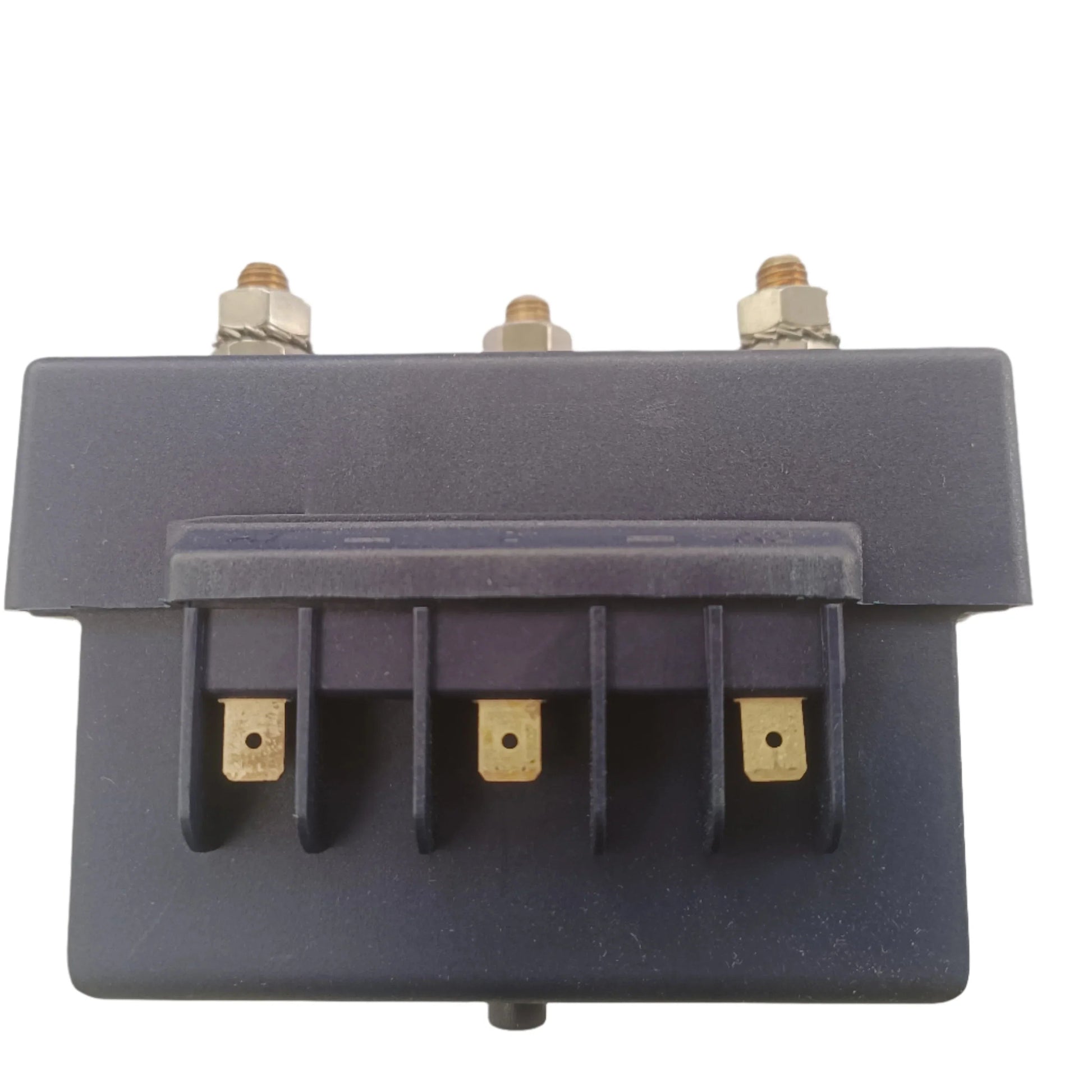

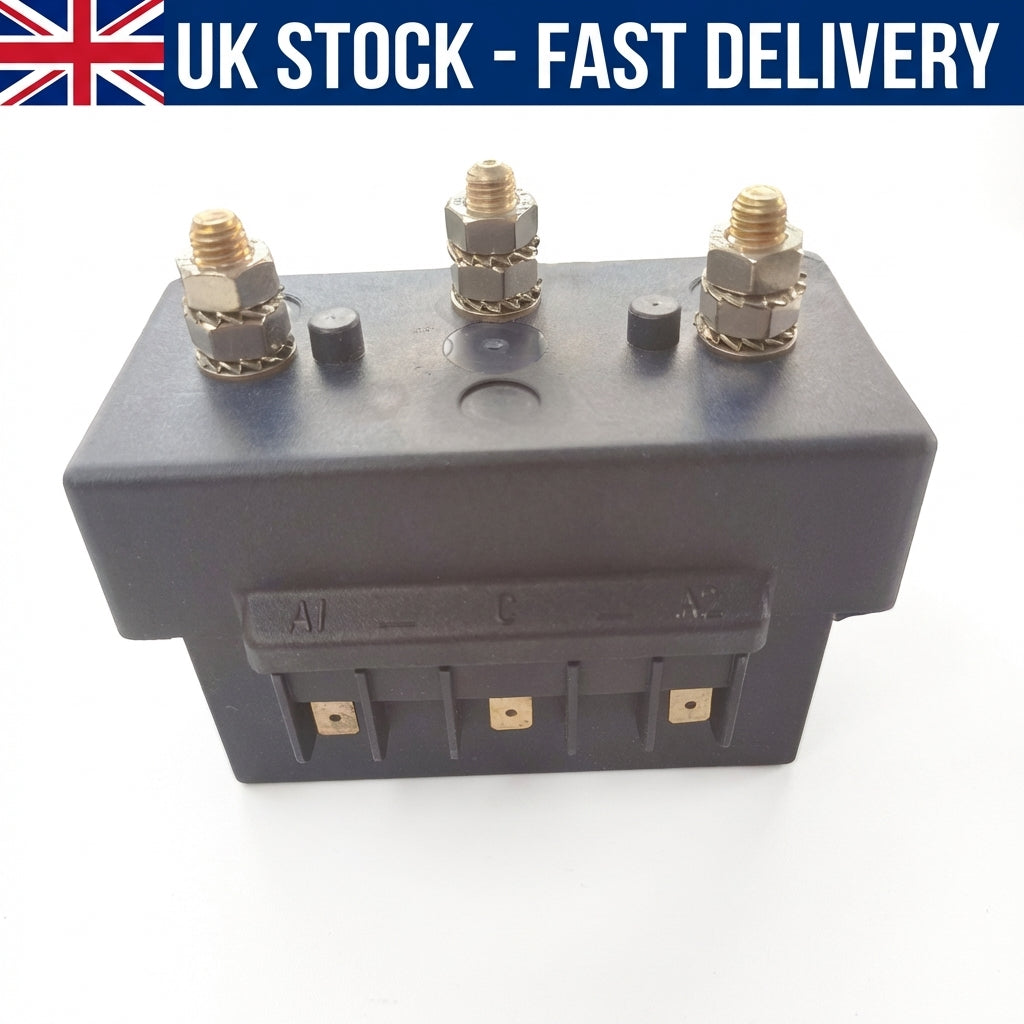

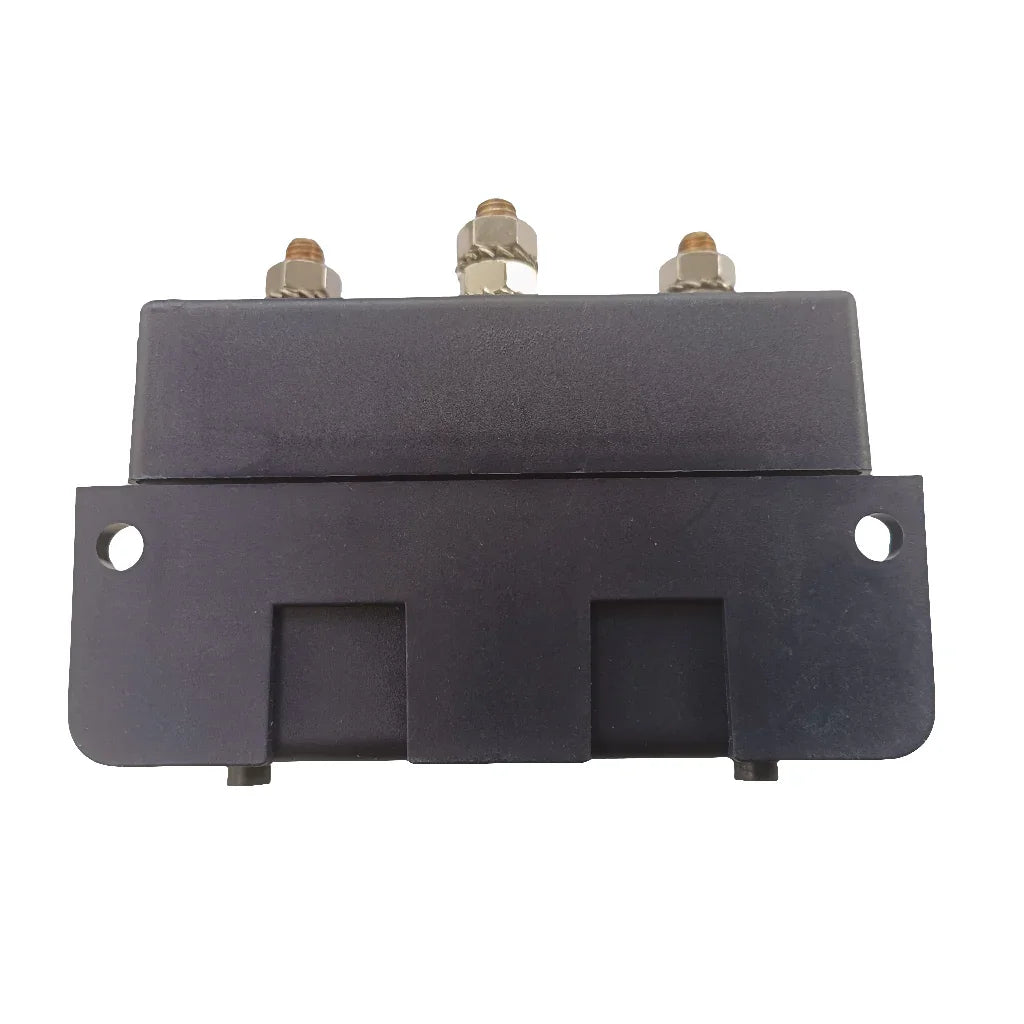

Lofrans Control Box 3T 12V (0.5-1.7kW)
Professional Grade Windlass Solenoid - MPN: 600018
The Lofrans 600018 Control Box is a heavy-duty, dual-direction solenoid relay designed specifically for marine anchor windlasses. This unit centralizes the electrical connections for your windlass, allowing for seamless "up" and "down" or "forward" and "reverse" operation via helm switches or remote controls.
Key Features
- ✔ 3-Terminal Connection Configuration
- ✔ Dual-Direction (Up/Down) Switching
- ✔ Corrosion Resistant Resin Housing
- ✔ External M8 Bolt Terminals for Easy Access

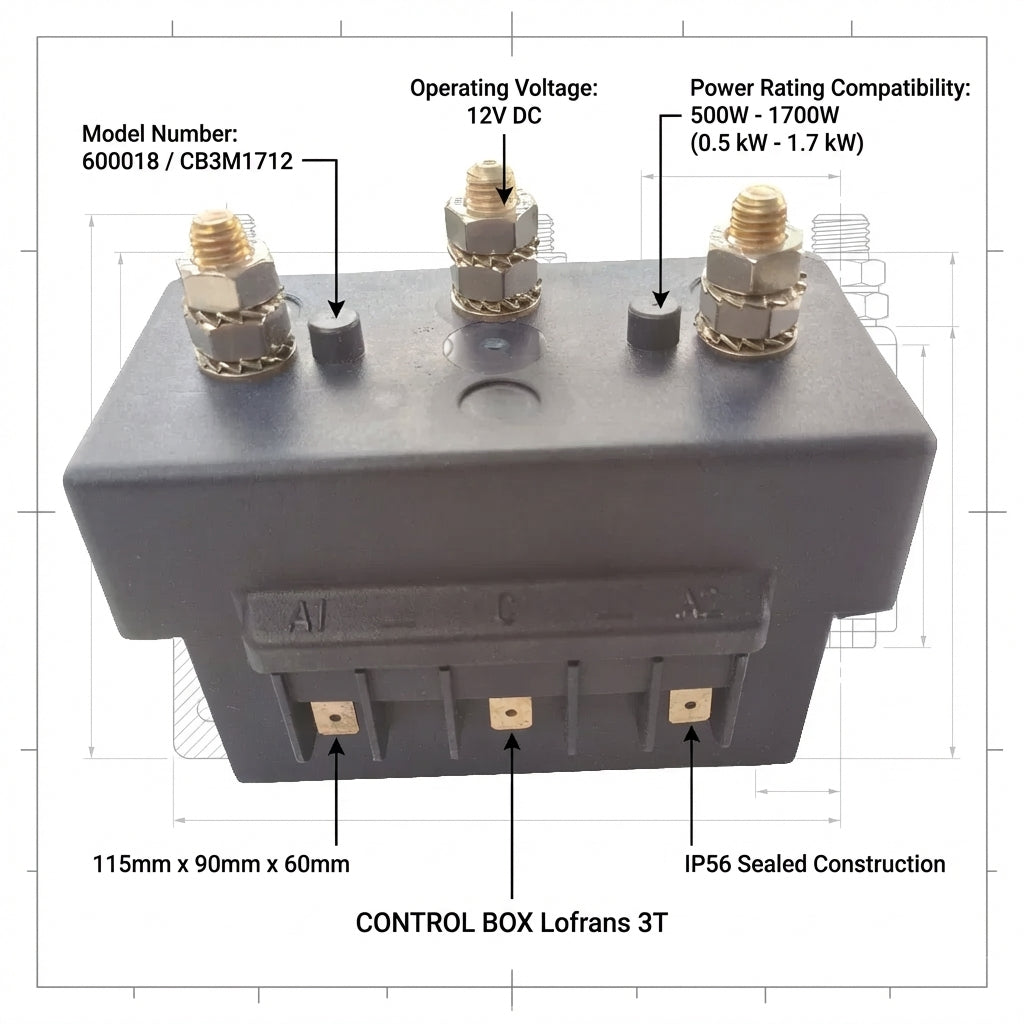

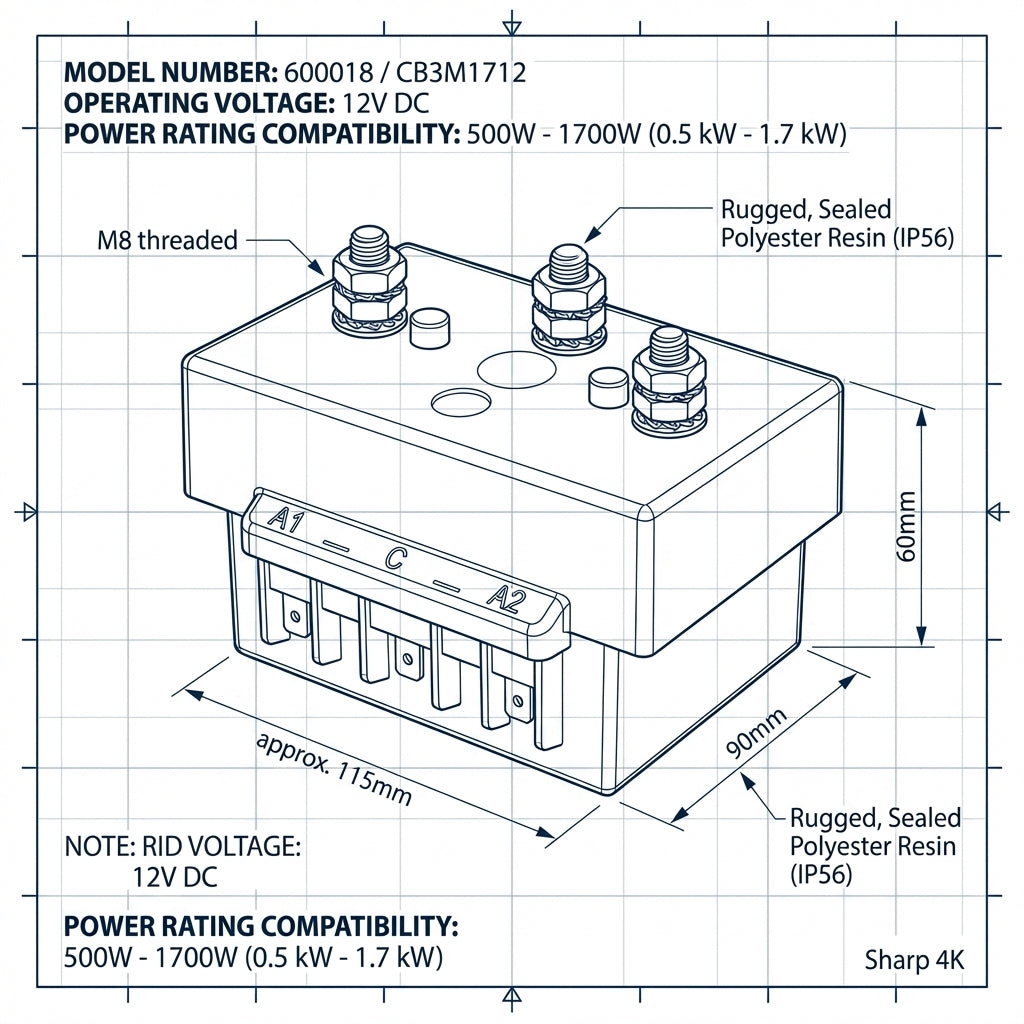

Technical Specs
| Voltage: | 12V DC |
| Power Rating: | 500W - 1700W |
| Terminals: | 3 Poles (M8) |
| IP Rating: | IP56 |
| Model Number: | CB3M1712 |
| Dimensions: | 115 x 90 x 60 mm |
Compatibility / Fitment Guide
| Lofrans Model | Power Requirement | System Type |
|---|---|---|
| X1, X2, X3 | 500W - 1700W | 12V (3-Terminal Motors) |
| Dorado / Kobra | 500W - 1000W | 12V (3-Terminal Motors) |
| Tigres / Cayman / Falkon | 1000W - 1700W | 12V (3-Terminal Motors) |
| Project 1000 / 1500 | 1000W - 1500W | 12V (3-Terminal Motors) |
OEM Cross Reference
| Lofrans MPN | 600018 |
| Lofrans Model | CB3M1712 |
| EAN / Barcode | 3162426000181 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Lofrans part, manufactured in Italy and designed to provide long-term reliability for your vessel's anchoring system.
How do I know if I need a 3-terminal or 4-terminal box?
You must check the motor of your windlass. If your motor has 3 cable connection points (usually marked M1, M2, and positive), you need this 3-terminal (3T) control box. If your motor has only 2 terminals, you require a different 4-terminal (4T) reversing solenoid.
Can this be used for a 24V system?
No, this specific model (600018) is strictly for 12V DC systems. For 24V applications, you would require Lofrans part number 600019.
Note: Please verify your windlass wattage and terminal count before purchasing. Professional marine electrical installation is recommended. Distributed by 4boats.co.uk.
