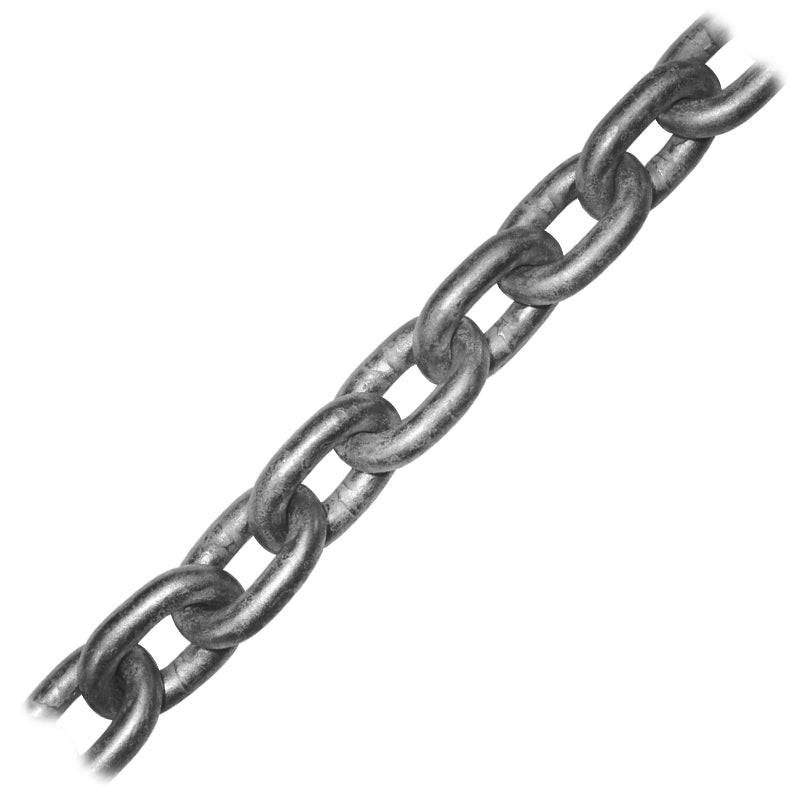

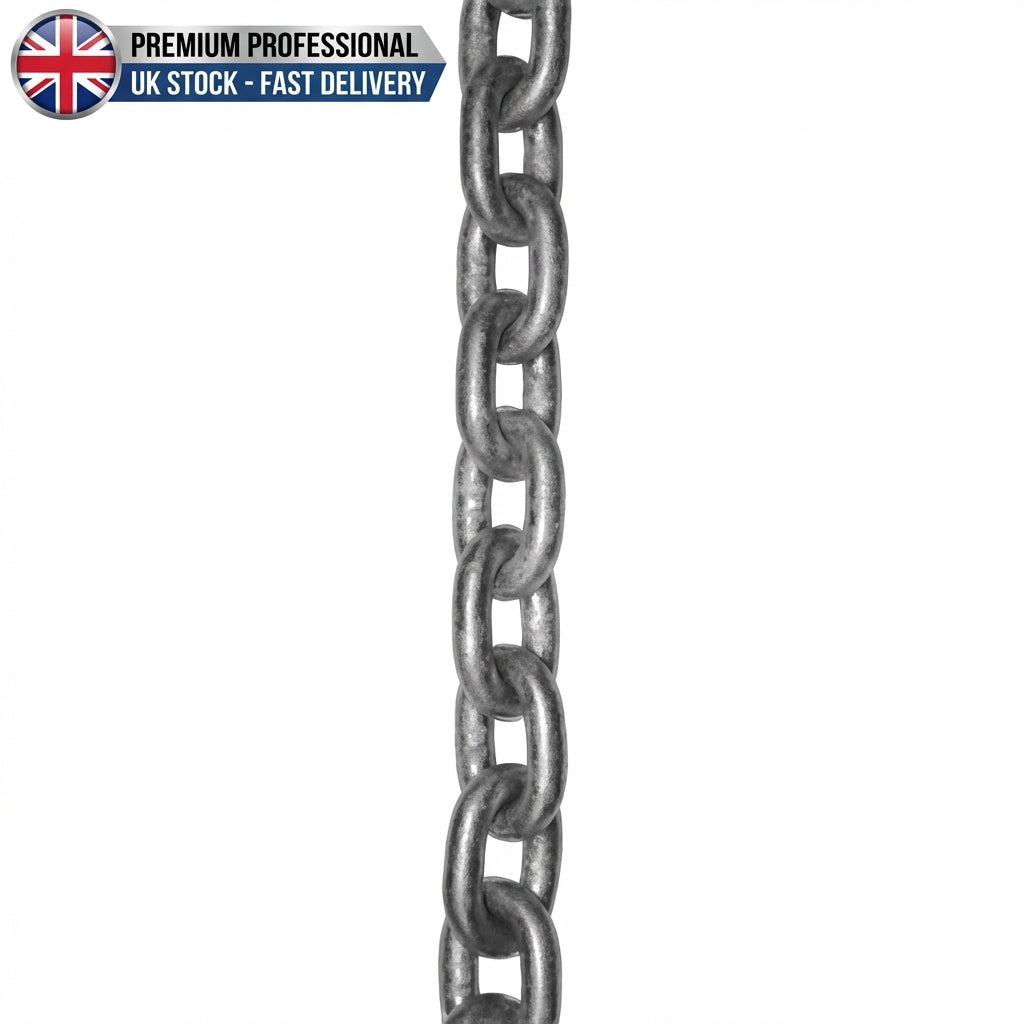

Lalizas 10mm DIN 5685A Genovese Chain
Hot-Dip Galvanized Marine Grade Steel
The Lalizas Genovese DIN 5685A is a premium-grade utility chain specifically engineered for the rigors of the marine environment. Constructed from structural carbon steel and finished with a heavy-duty hot-dip galvanization process, this chain provides exceptional resistance to salt-water corrosion and oxidation.
Key Features
- ✔ Hot-Dip Galvanized (High Zinc Thickness)
- ✔ Structural Carbon Steel Construction
- ✔ Standard DIN 5685A Round Link
- ✔ Superior Saltwater Corrosion Resistance
Technical Data
| Material | Q235 Carbon Steel |
| Finish | Hot Dip Galvanized |
| Standard | DIN 5685A (Short Link) |
| Usage | Non-Lifting (Anchoring/Mooring) |
Lalizas Size & Strength Specifications
| SKU | Diameter | Int. Link (mm) | Breaking Load | Weight/m |
|---|---|---|---|---|
| 72060 | 5mm | 20 x 10 | 775 kg | 0.50 kg |
| 72061 | 7mm | 28 x 14 | 1500 kg | 1.00 kg |
| 72062 | 10mm | 40 x 20 | 3100 kg | 2.05 kg |
| 72063 | 13mm | 52 x 26 | 4600 kg | 3.45 kg |
Compatibility & Fitment
| Application | Fitment Details |
|---|---|
| Anchoring | Suitable for manual anchoring leads and light-duty windlasses (verify DIN fit). |
| Mooring | Ideal for mooring lines, buoy attachments, and harbor security. |
| General Marine | Security cabling for dinghies, outboard motor locks, and dock fendering. |
Questions & Answers
Is this a genuine original part?
This is a genuine Lalizas marine part, manufactured to International DIN 5685A standards.
Can this be used for overhead lifting?
No. DIN 5685A Genovese chain is classified as a commercial/utility chain and is NOT rated for overhead lifting or critical hoisting applications.
What does "Genovese" mean for this chain?
"Genovese" refers to the link style and manufacturing process common in European marine standards, offering a balance of high tensile strength and link flexibility for marine anchoring.
Note: Please verify your required diameter and breaking load against the technical table above before purchasing. Available in various lengths at 4boats.co.uk.
