RELIABILITY: Manufactured from high-tensile steel and hot-dip galvanised to withstand harsh saltwater environments and prevent premature corrosion.

Key Features

• ✔ **Two-Part Design:** Easy to fit through existing links.
• ✔ **Rivet-Style Fixation:** High-security hammer-over rivets.
• ✔ **Marine Grade:** Hot-dip galvanised finish.
• ✔ **Precision Fit:** Designed specifically for 8mm (5/16") chain.

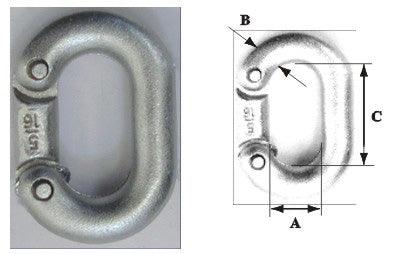

Technical Specs

SKU / Part Number	99394
Chain Diameter	8mm (5/16")
Material	Forged Steel
Finish	Hot-Dip Galvanised
Type	Joiner / Connecting Link

Chain Type	Size	Notes
Galvanised Short Link	8mm / 5/16"	Direct Fit
Anchor Rode / Chain	DIN766 / ISO	Manual peening required

Is this suitable for use with an electric windlass?

While this joiner is high-strength, it is generally slightly larger than a standard chain link once riveted. We recommend caution when using it with an automated windlass, as it may snag on the gipsy. It is best used for static anchor connections or chain repairs.

How do I know if it is compatible?

If you have a standard 8mm (5/16 inch) marine chain, this connector is designed for a direct fit. Simply ensure the internal clearance of your links allows the connector to pass through.

How do you install this link?

Place the two halves through the chain links you wish to connect, align the rivets, and use a heavy hammer and an anvil (or hard surface) to "peen" (flatten) the rivet heads over. This creates a permanent, non-removable connection.
