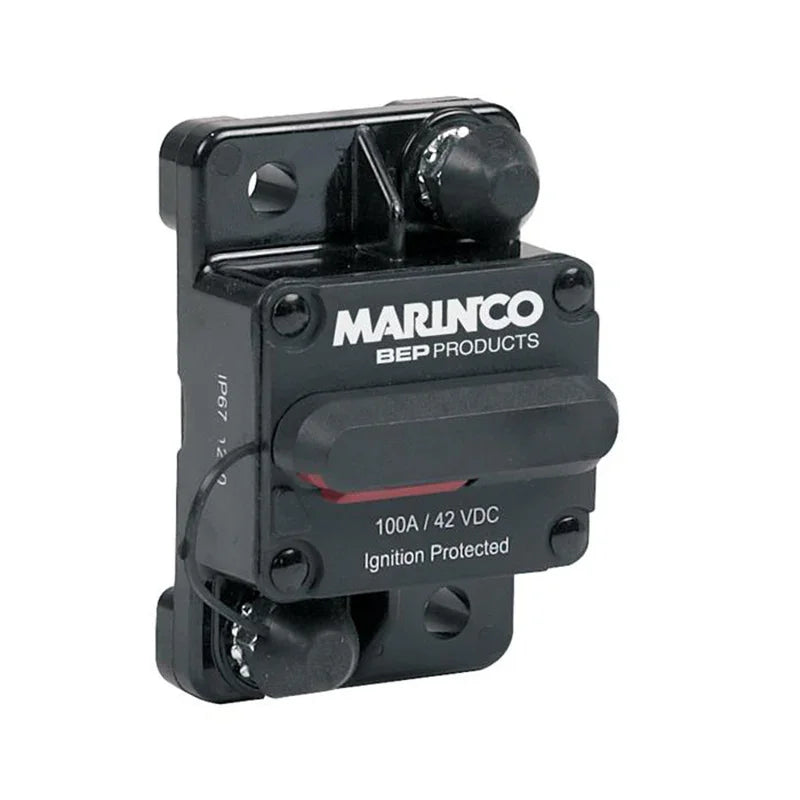

BEP Single-Pole Thermal Breakers, Bulk Pack of 10 | 4Boats

Single-pole thermal type breakers in a bulk pack of 10 - sealed, ignition-protected circuit protection for marine, RV and vehicle auxiliary systems.

• Designed for auxiliary and accessory circuits in trucks, buses, RVs and marine applications, including engine compartment and bilge areas.
• Housing is thermoset plastic, UL 94V-0 rated to 155°C (311°F), with stud insulators and stainless steel locking nuts.
• Tin-plated copper studs and brass rivets provide reliable DC connections.
• Available in 30-150 A and 200 A ratings at 30 V DC, with a 3,000 A interrupt capacity.
• Operating temperature range is −25°F (−32°C) to 180°F (82°C); storage range is −30°F (−34°C) to 300°F (149°C).
• Mount on panel or surface. Terminal stud torque is 5 in-lb (5.36Nm).
• Series 184 & 185 include a unique reset mechanism that provides a visible indication of a tripped condition.
• Ingress protection rating is IP67.
• Complies with SAEJ1635, J1171 and UL1500 (ignition-protected) specifications.
• Bulk pack: Qty 10. Also available to order in BULK. Code: BEP-185030F011.
