Attwood 4142-1 Sahara Shower Sump System 750 GPH 12V Marine Boat Drain Small Box
Attwood 4142-1 Sahara Shower Sump System 750 GPH 12V Marine Boat Drain Small Box
Couldn't load pickup availability
Attwood 4142-1 Shower Sump 750
750 GPH 12V Compact Drain System

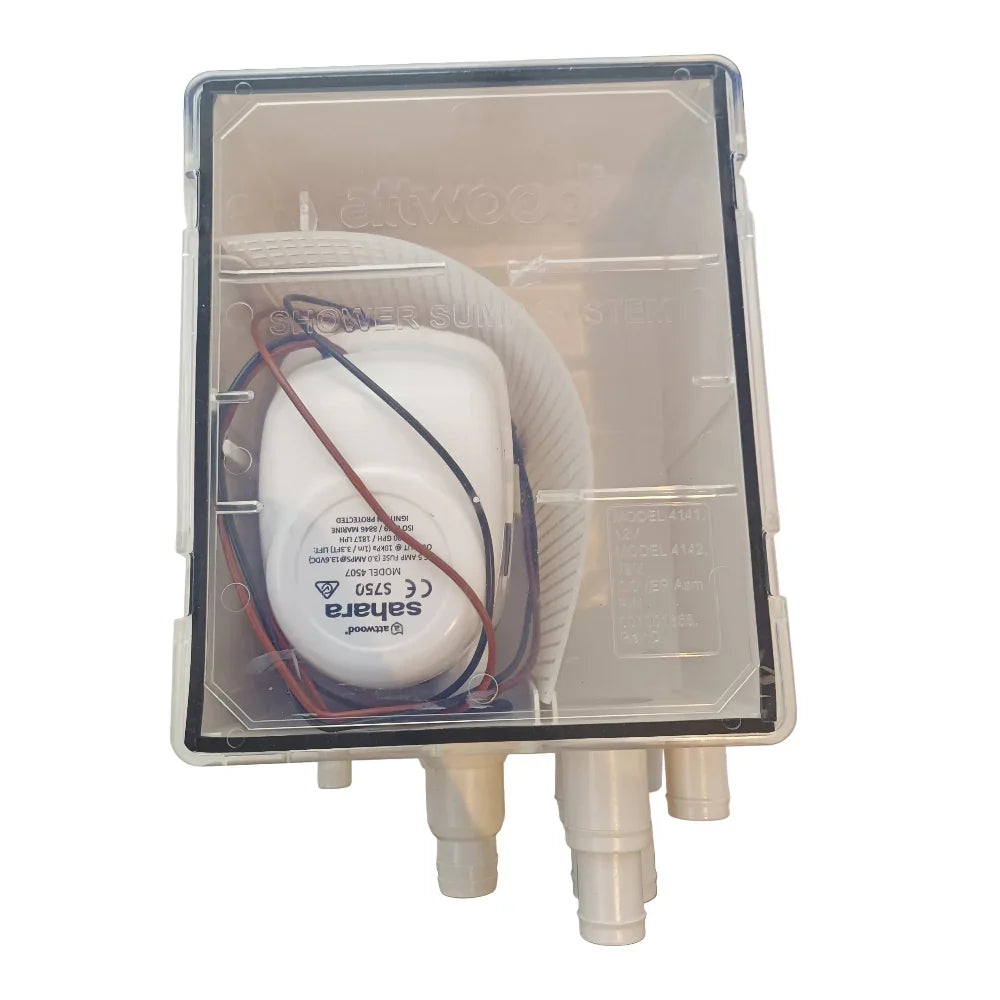

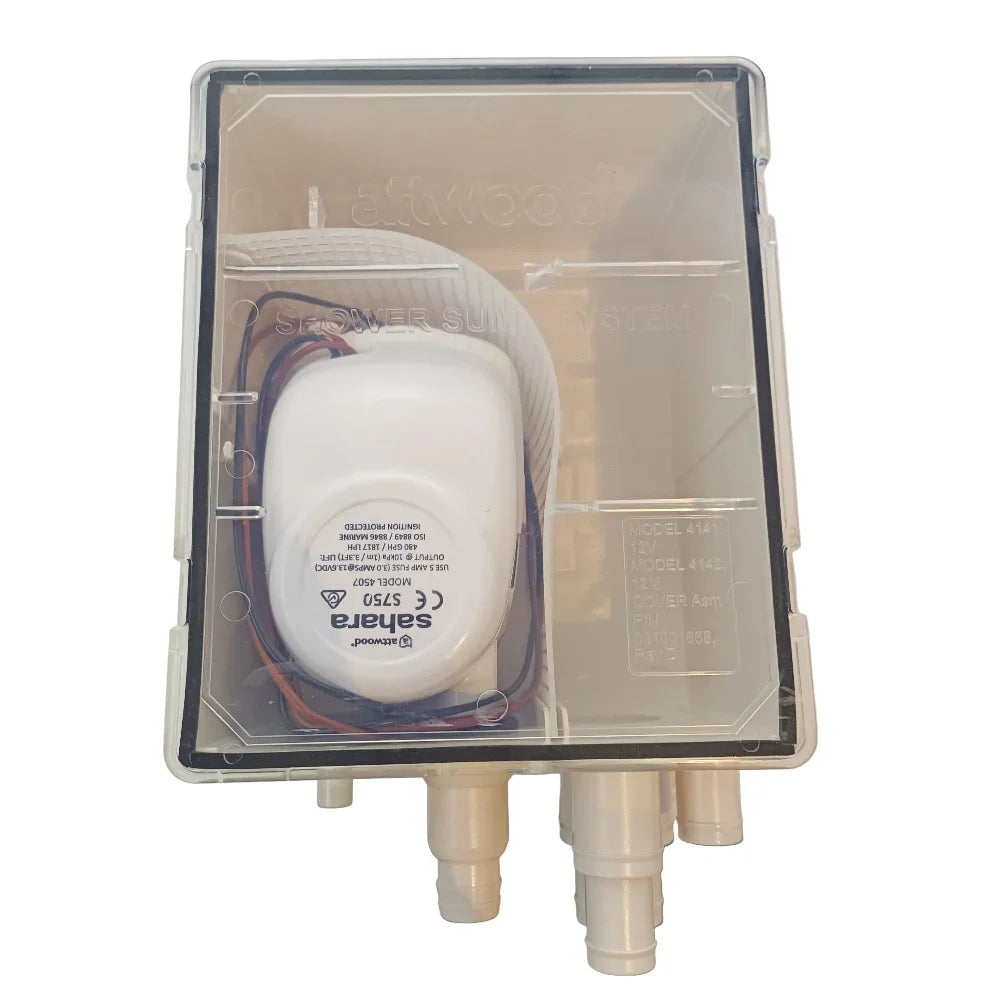

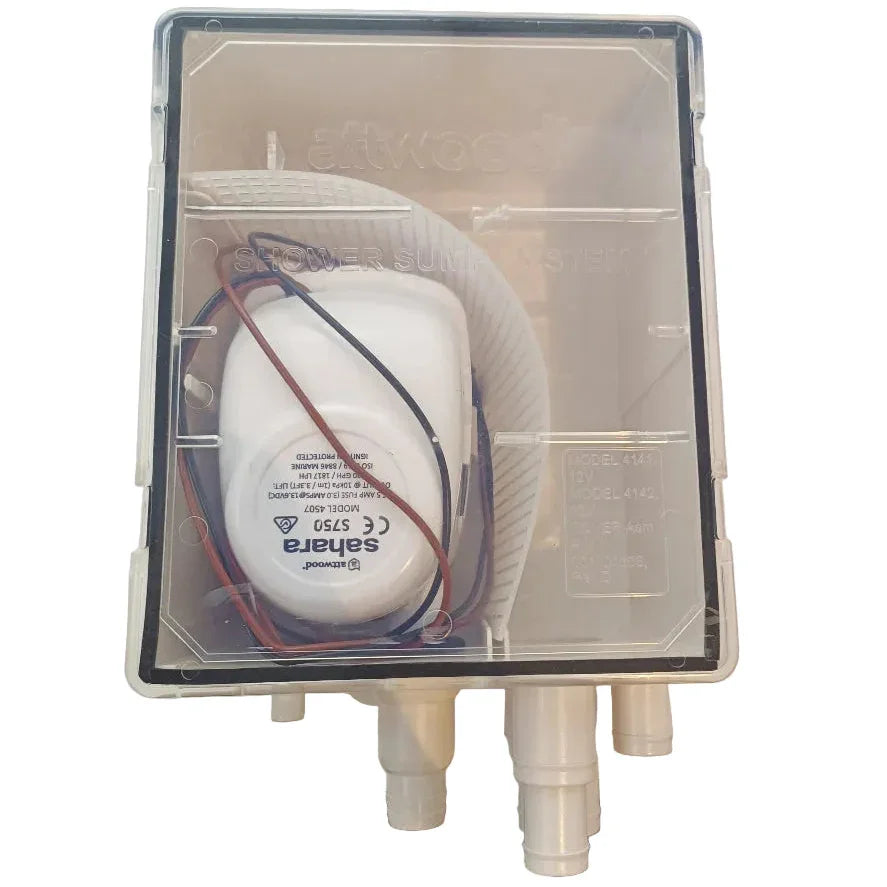

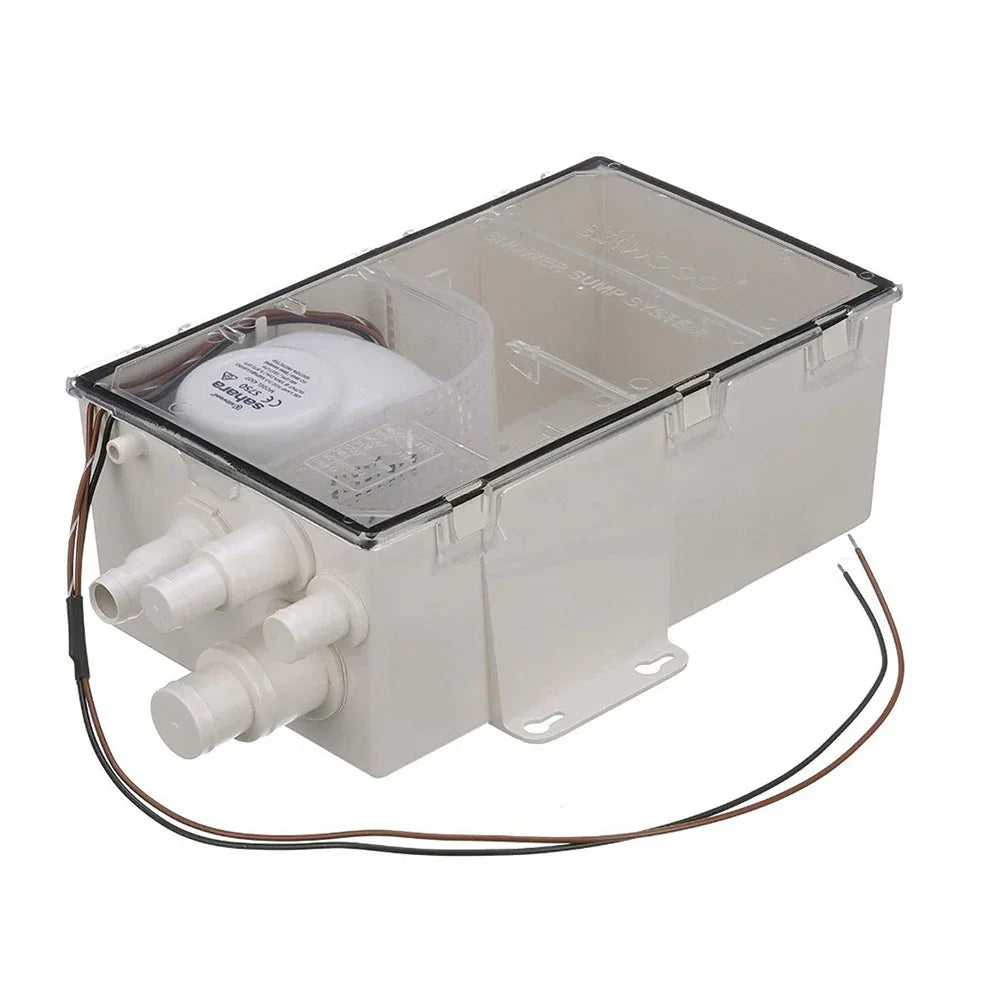

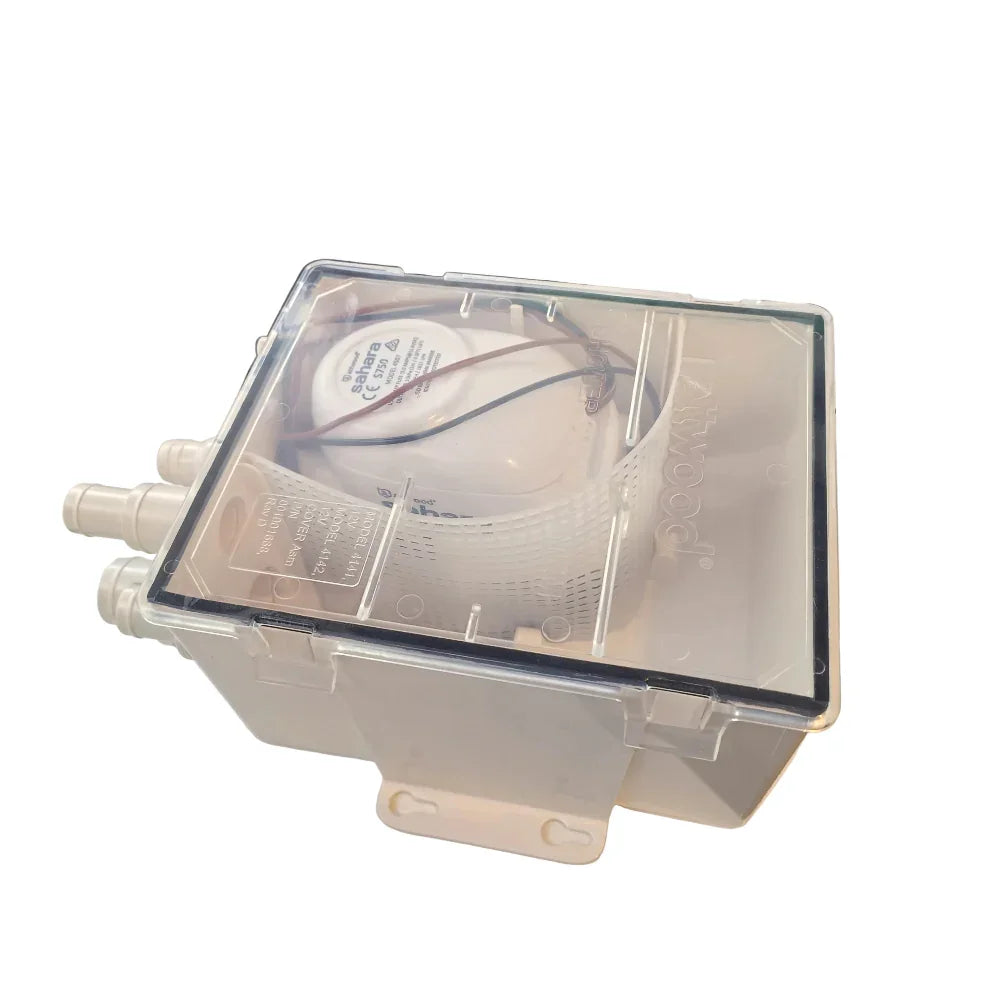

The Attwood 4142-1 Sahara Shower Sump System is a high-capacity, all-in-one solution for managing grey water from boat showers and sinks. Designed with a compact "Small Box" footprint, it fits into tight spaces while providing a powerful 750 GPH flow rate. The system includes an automatic float switch and an internal mesh strainer to prevent debris from clogging the pump.
Key Features

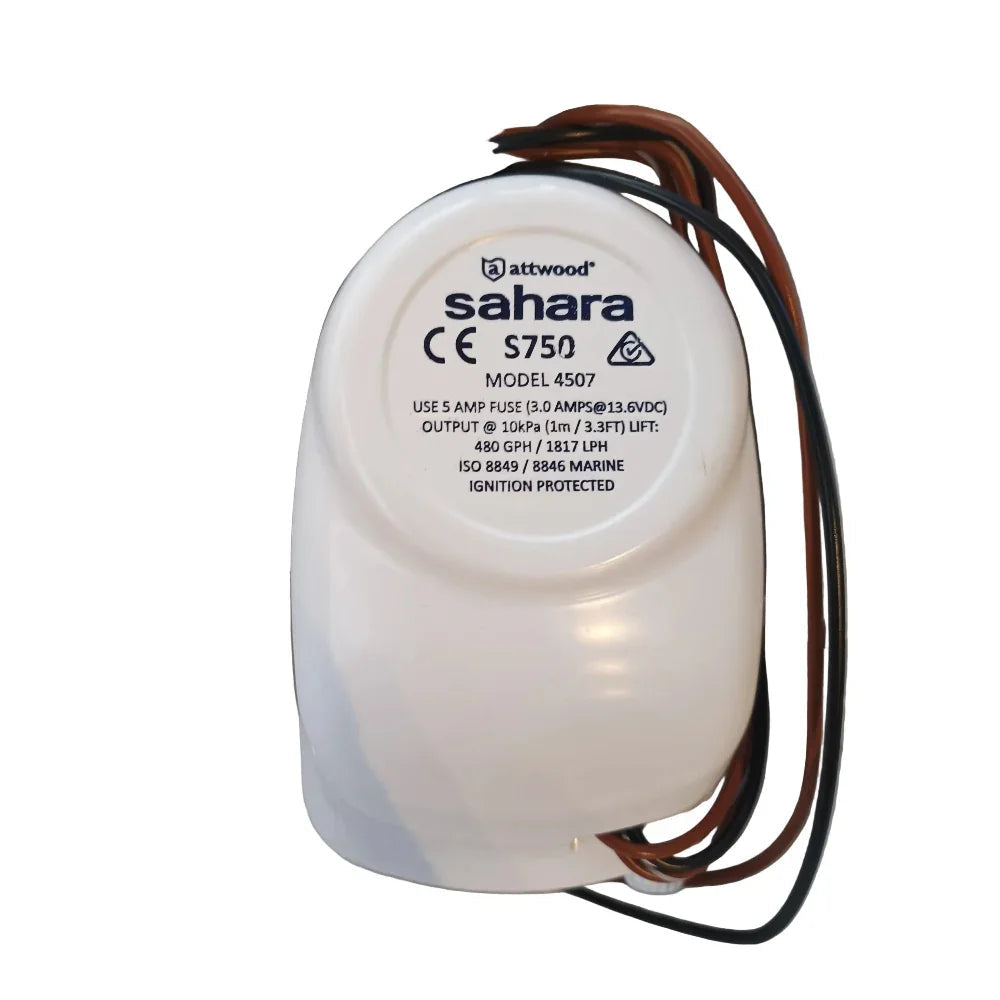

- ✔ 750 GPH high-flow Sahara pump
- ✔ Multiple inlet port configurations
- ✔ Integrated check valve (clapper)

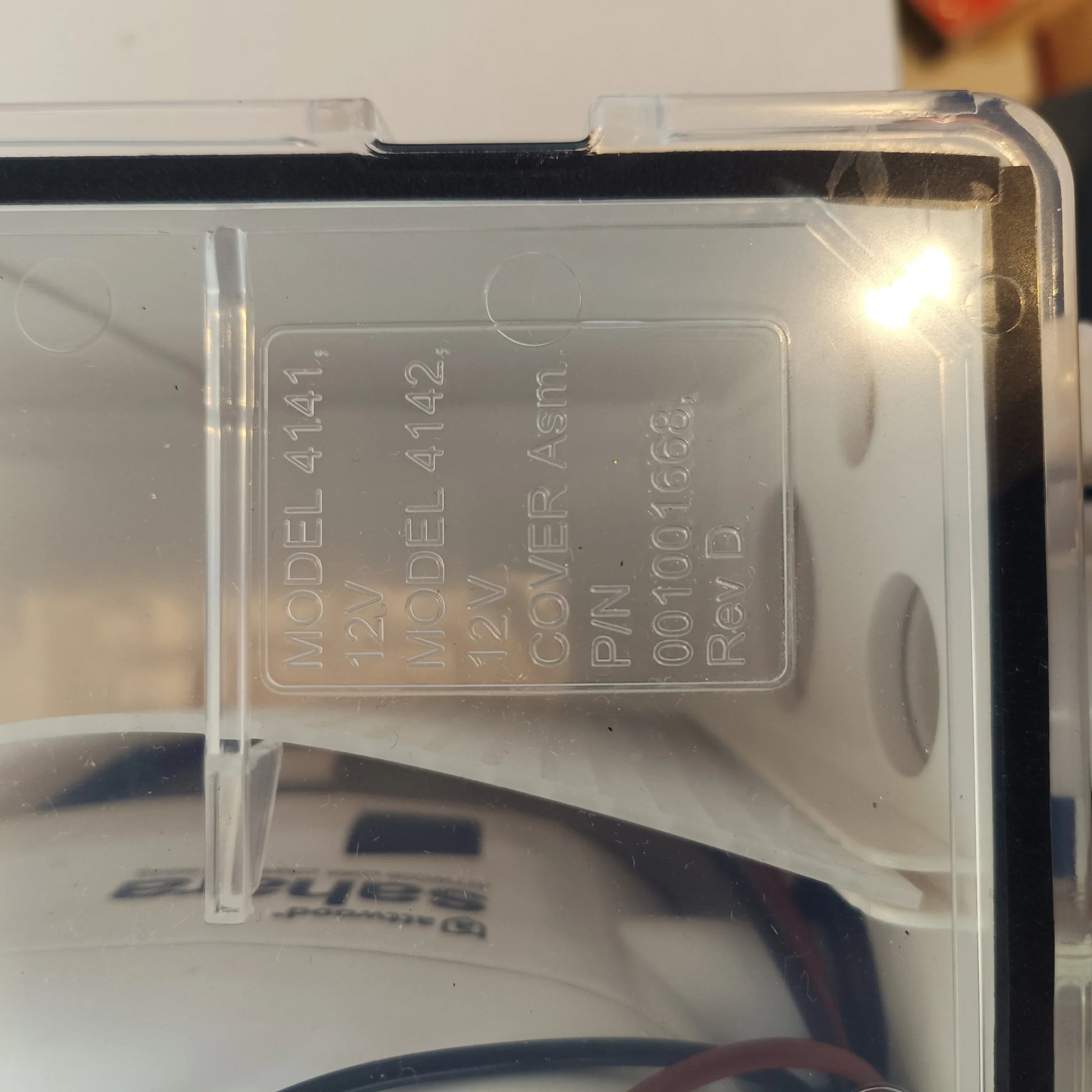

- ✔ Clear inspection lid with gasket
- ✔ Internal easy-clean mesh strainer
Technical Specs
| Voltage: | 12V DC |
| Flow Rate: | 750 GPH |
| Amp Draw: | 2.5 Amps |
| Fuse Size: | 5 Amp |
| Outlet Size: | 3/4" (19mm) |
| Wire Lead: | 36 Inches |
| Standards: | ABYC, USCG |

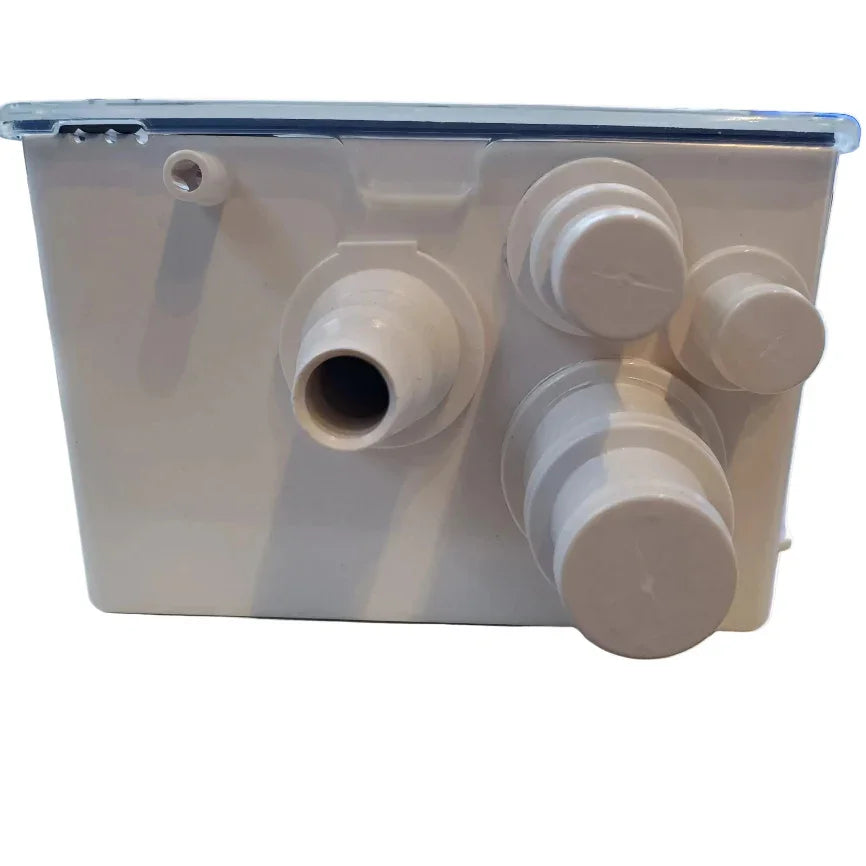

Inlet Port Guide
| Port | Compatible Hose Sizes | Recommended Application |
|---|---|---|
| Inlet 1 | 3/4" or 1" | Sink / Condensate |
| Inlet 2 | 3/4" | Secondary Drain |
| Inlet 3 | 1-1/8" or 1-1/2" | Main Shower Drain |
OEM Cross Reference
| Attwood MPN | 4142-1 (Bulk/Standard Box) |
| UPC | 022697041425 |
| Retail Equivalent | 4142-4 |
| Zoro Reference | G607989583 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Attwood Marine component, manufactured to the highest standards for marine plumbing systems.
How do I know if it is compatible?
Check the dimensions of your current sump box. This "Small Box" (Standard) version measures approximately 10.5" x 8.1" x 4.5". If your mounting area supports these dimensions and uses a 12V 750 GPH pump, this is the correct replacement.
What is the purpose of the integrated check valve?
The 4142-1 includes a clapper-style check valve on the outlet. This prevents water remaining in the discharge hose from flowing back into the sump when the pump shuts off, reducing odors and unnecessary pump cycling.
Note: Fast shipping available across the UK from 4Boats. Please verify your vessel's electrical and hose requirements before purchasing.
