Bruce Type Claw Anchor 20kg Hot Dip Galvanized Steel Boat Marine 35-50ft 44lbs
Bruce Type Claw Anchor 20kg Hot Dip Galvanized Steel Boat Marine 35-50ft 44lbs
Couldn't load pickup availability

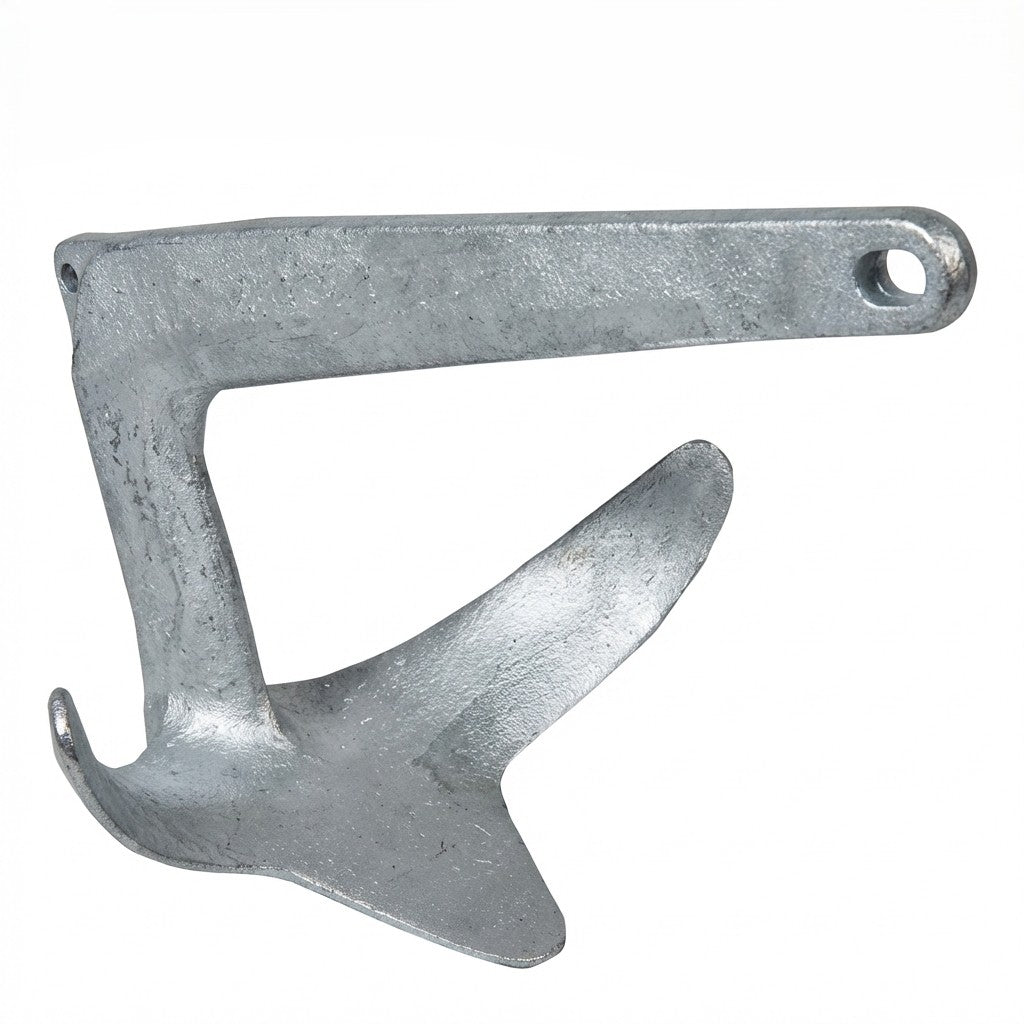

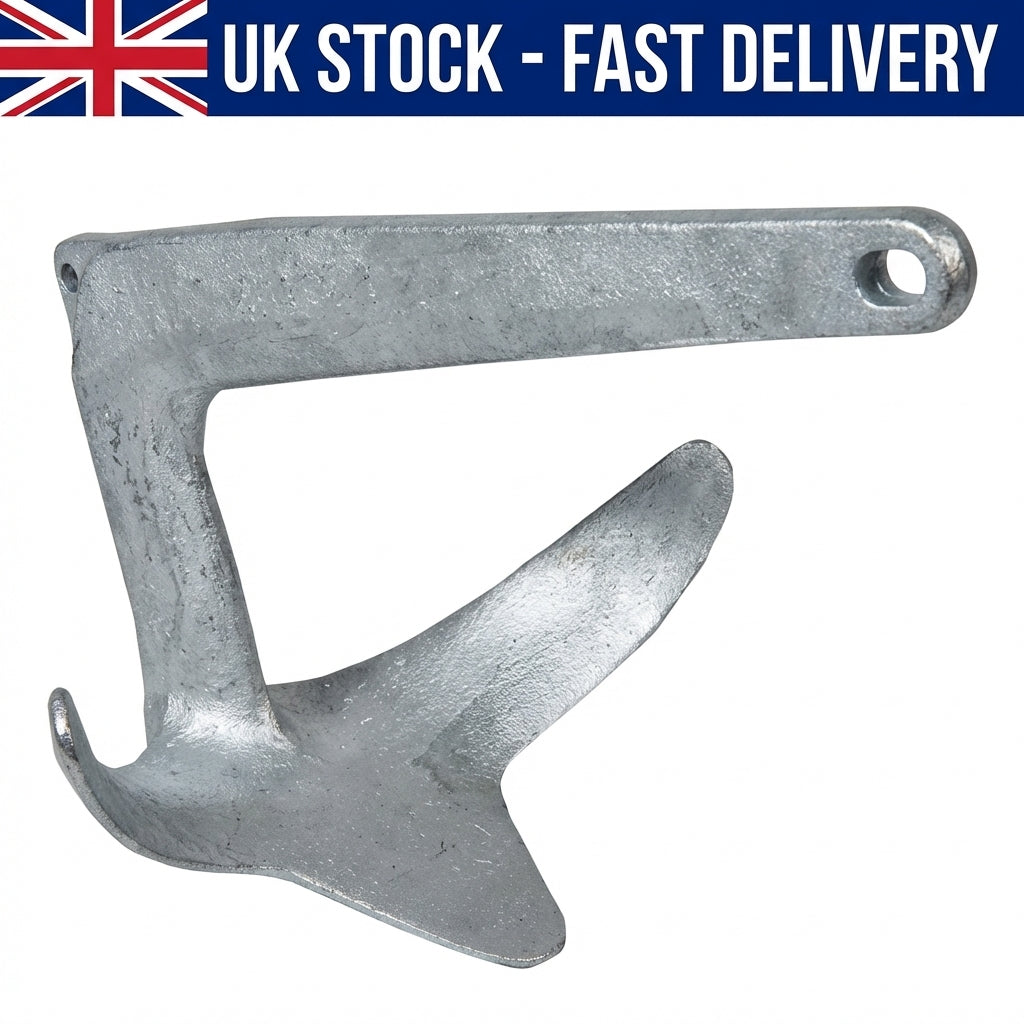

Bruce Type Claw Anchor 20kg

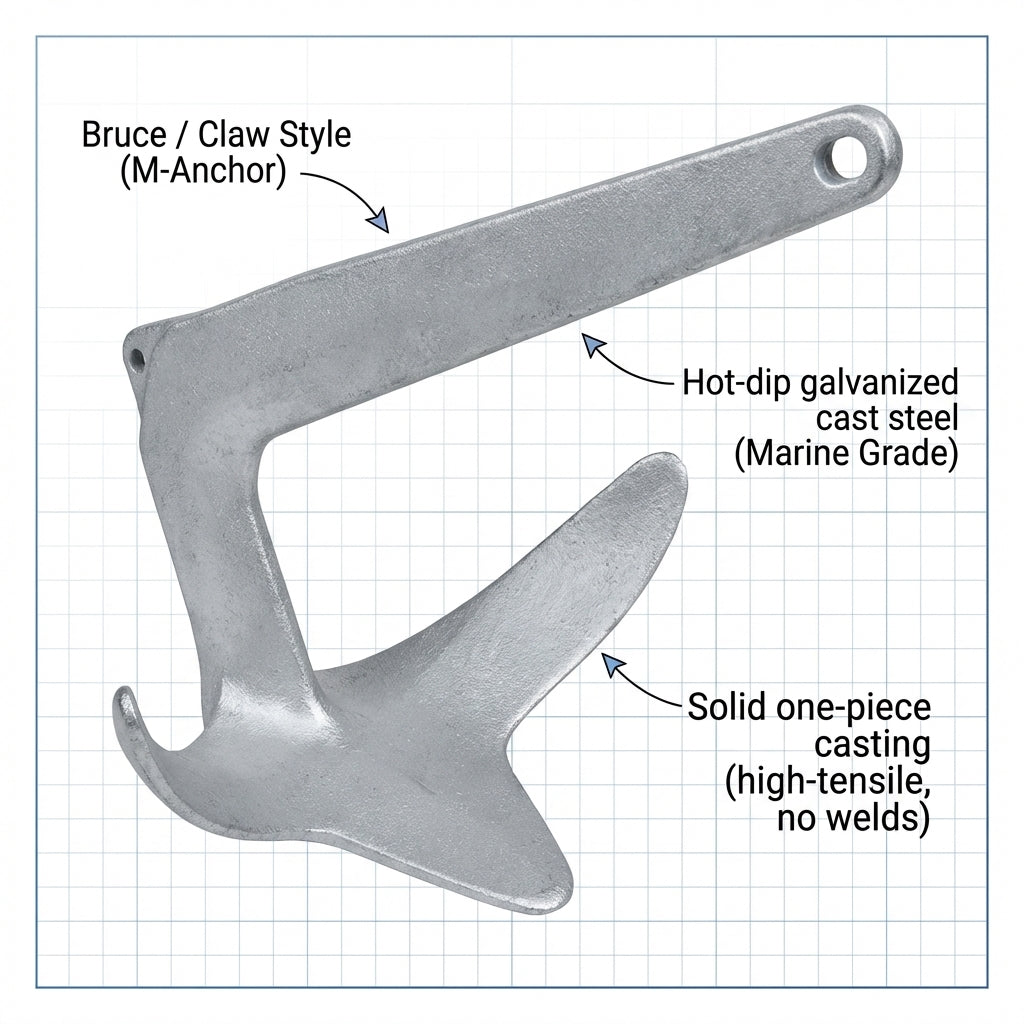

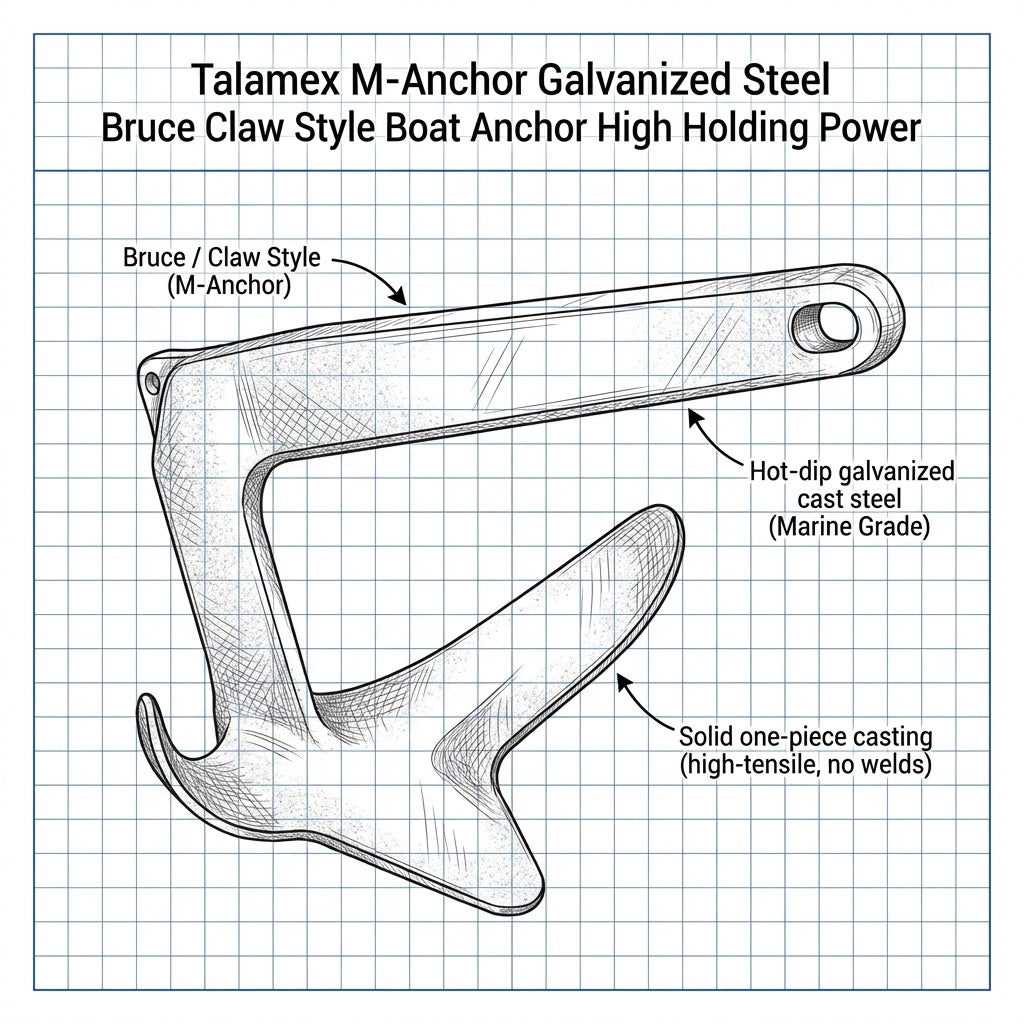

Hot Dip Galvanized High-Tensile Steel
This 20kg (44lbs) Bruce Type Claw Anchor is engineered for maximum holding power and reliability in a variety of seabed conditions. Patterned after the anchors used to secure North Sea oil rigs, its unique one-piece claw design allows it to set quickly and reset automatically if the wind or tide veers. It is a favorite among cruisers for its ability to hold firm in sand, mud, and rock while remaining relatively compact for bow roller storage.
Key Features
- ✔ Self-Setting: Quickly buries itself upon deployment.
- ✔ 360° Stability: Remains stable even under changing tide/wind.
- ✔ Single-Piece Cast: No moving parts to break or jam.
- ✔ Tripping Point: Integrated eye for secondary release line.

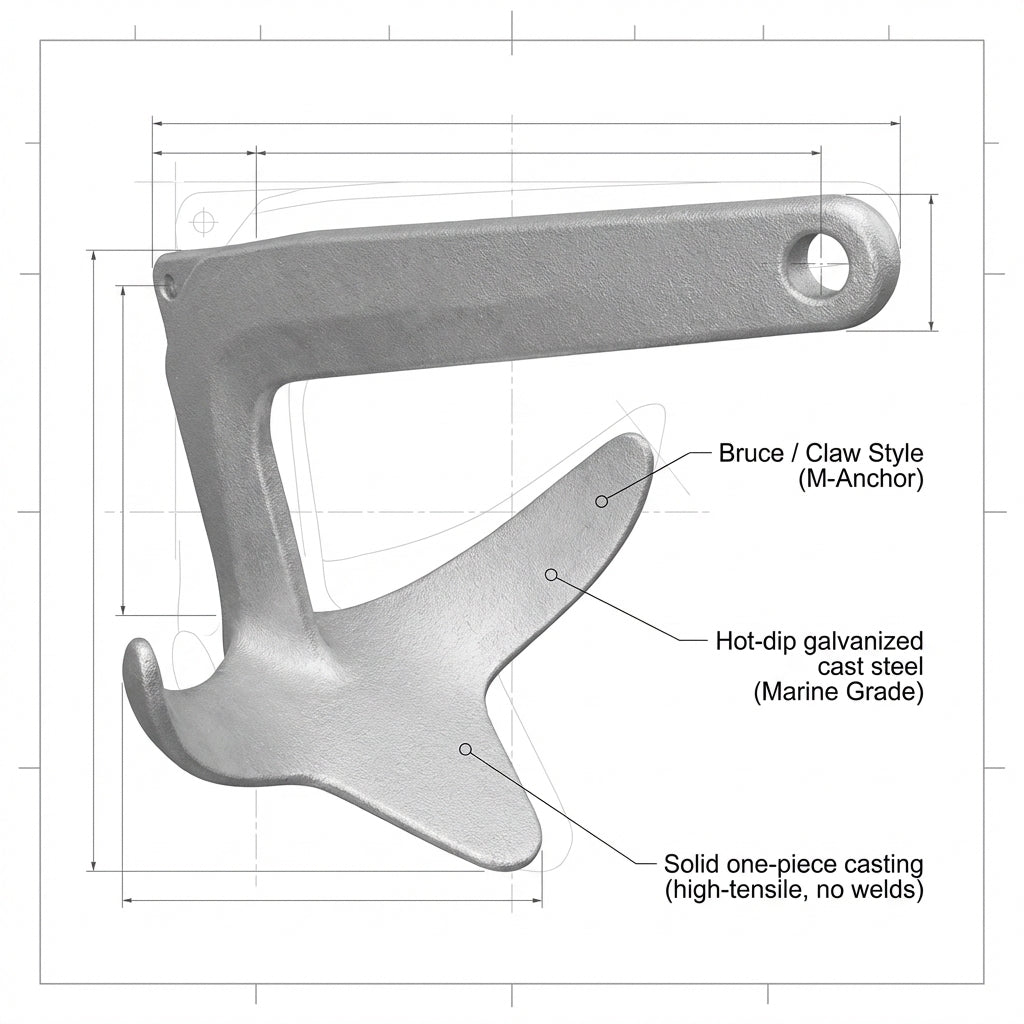

Technical Specs
| Weight: | 20 kg / 44 lbs |
| Material: | Hot Dip Galvanized Steel |
| Shank Length: | ~710 mm |
| Claw Width: | ~440 mm |
| Recommended Chain: | 10 mm |
Compatibility / Fitment Guide
| Application | Boat Length | Recommended Usage |
|---|---|---|
| Sailing Yachts | 35ft - 50ft (11m - 15m) | Primary working anchor |
| Motor Cruisers | 30ft - 45ft (9m - 14m) | Heavy displacement vessels |
| Seabed Types | N/A | Sand, Mud, Rock, Coral |
OEM Cross Reference
| Brand | Reference Number |
|---|---|
| Lalizas | 92245 |
| Plastimo | P206010 / 206010 |
| Sea-Dog | 318520 |
| Lewmar Claw Equiv. | 0057920 (44lb) |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket Bruce-style anchor, manufactured to original design specifications for maximum performance at a fraction of the cost.
How do I know if it is compatible?
We recommend checking the weight requirements for your specific vessel. This 20kg model is typically recommended for boats between 35 and 50 feet depending on weather conditions.
Will this fit on my standard bow roller?
The Bruce type anchor is one of the easiest to stow on a standard bow roller due to its curved fluke and absence of moving parts. Please check the shank dimensions against your roller clearance.
Note: Anchor recommendations are based on average weather conditions. For heavy displacement boats or extreme weather, always consider going one size up. Please visit 4boats.co.uk for more info.
