Anchor Chain Connector AISI 316 Stainless Steel 6mm 8mm Chain Lalizas 98076
Anchor Chain Connector AISI 316 Stainless Steel 6mm 8mm Chain Lalizas 98076
Couldn't load pickup availability

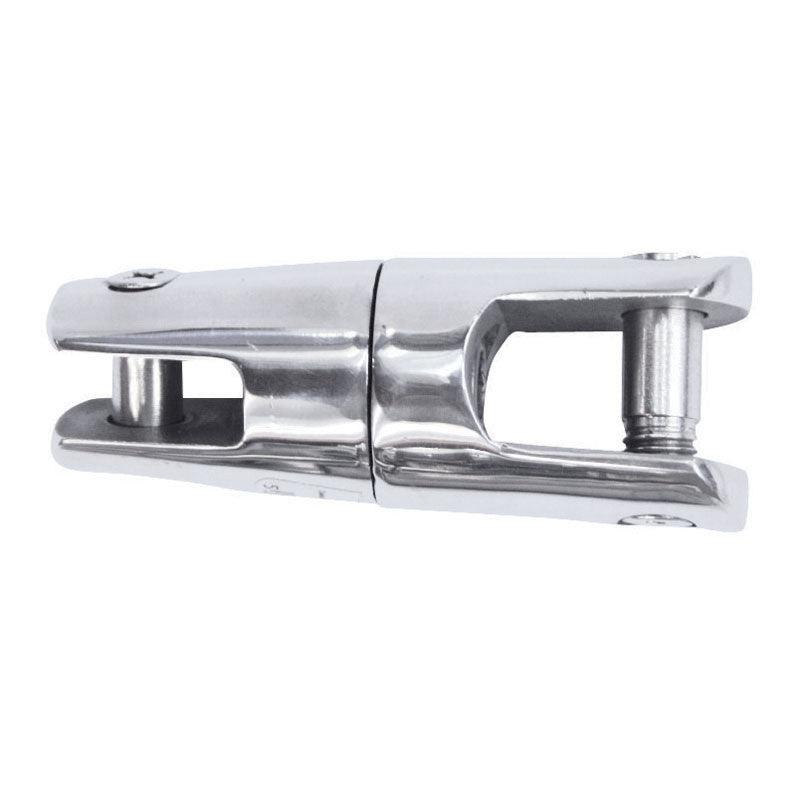

Anchor Chain Connector 6mm - 8mm
AISI 316 Stainless Steel | Marine Grade

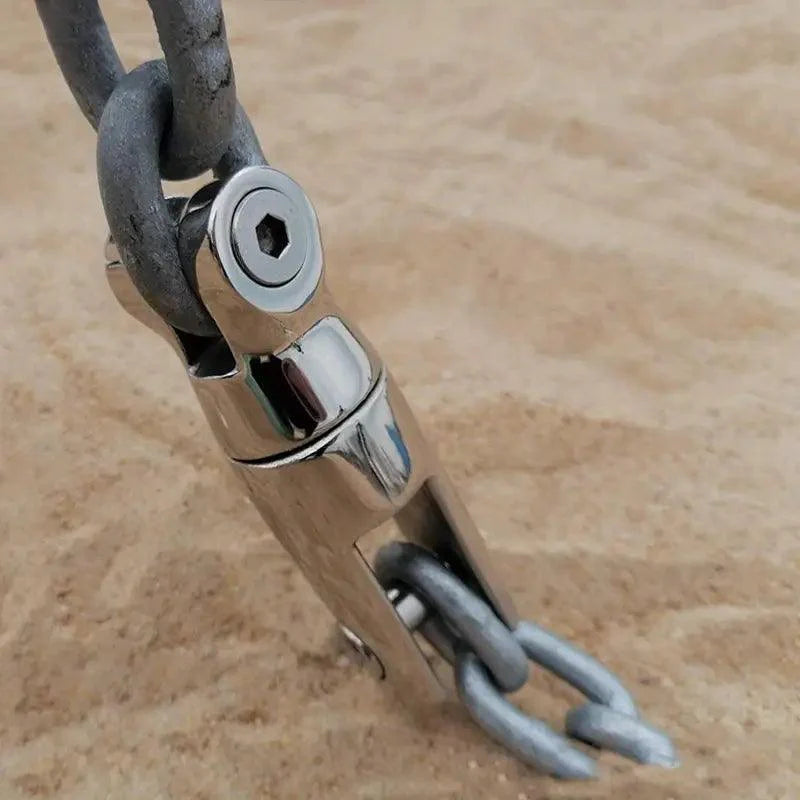

This premium Anchor Chain Connection is engineered from high-grade AISI 316 Stainless Steel to provide a secure and streamlined junction between your anchor and chain. Designed specifically for 6mm and 8mm chains, its slim, protrusion-free profile ensures your ground tackle transitions smoothly over bow rollers and through windlass systems without snagging.
Key Features
- ✔ Universal fit for 6mm & 8mm chain
- ✔ High-strength AISI 316 Stainless Steel
- ✔ Streamlined "No-Snag" design
- ✔ Mirror-polished anti-corrosion finish
- ✔ Captured pins for secure locking

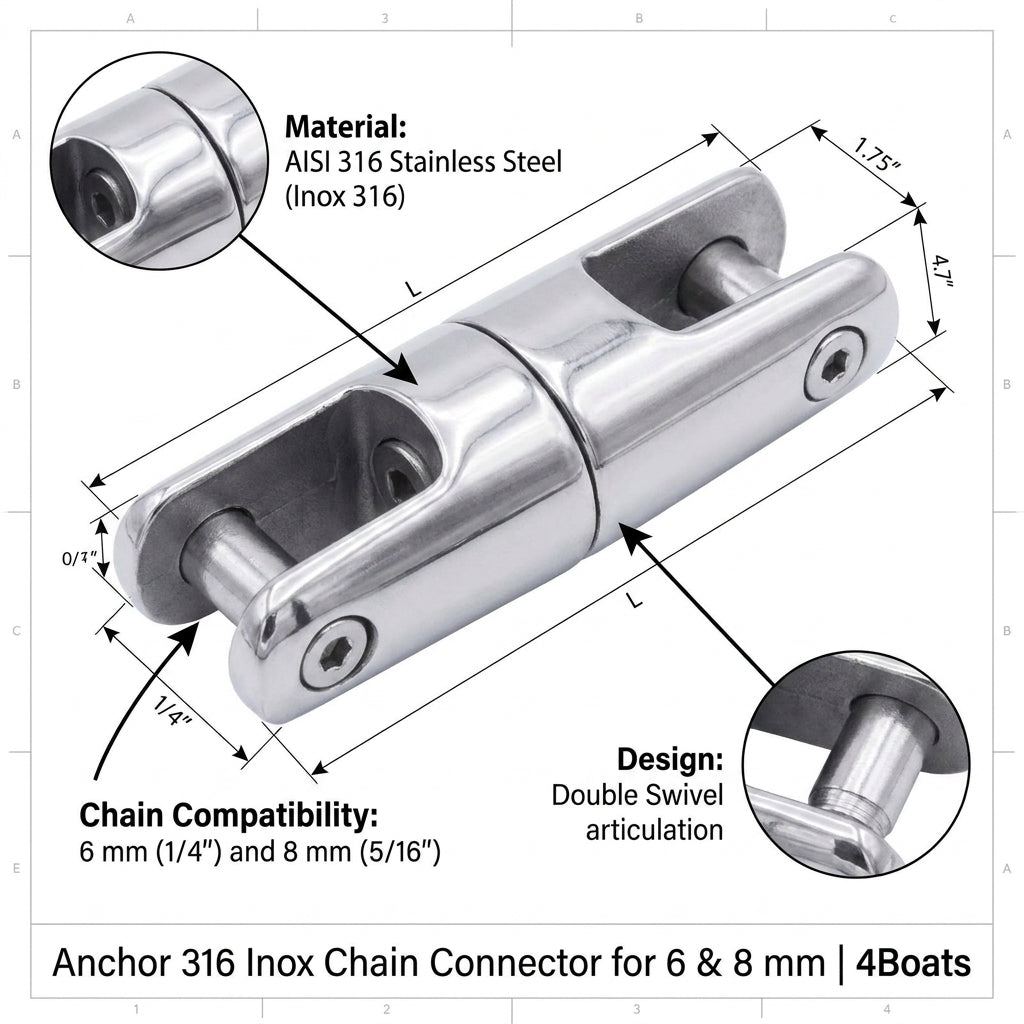

Technical Specs
| Material | AISI 316 Stainless Steel |
| Chain Size | 6mm - 8mm (1/4" - 5/16") |
| Breaking Load | ~ 2,500 kg |
| SWL | ~ 850 kg |
| Finish | Mirror Polished |
Compatibility / Fitment Guide
| Chain Standard | Chain Gauge | Anchor Type |
|---|---|---|
| DIN 766 / ISO 4565 | 6mm (Short Link) | Compatible |
| DIN 766 / ISO 4565 | 8mm (Short Link) | Compatible |
| General Purpose | All standard anchors | Fits most shanks up to 16mm |
OEM Cross Reference
| Lalizas Part Number | 98076 |
| Osculati Equivalent | 01.220.01 / 01.320.01 |
| Marine Town Ref | 805228 |
Questions & Answers
Is this a genuine original part?
This is a premium Lalizas marine component, manufactured to professional maritime standards for reliability and strength.
How do I know if it is compatible?
This connector is suitable for all 6mm and 8mm short-link calibrated chains (DIN766/ISO). If your chain is within this range, it is a guaranteed fit.
Does it come with the locking pins?
Yes, the connector includes two high-tensile stainless steel pins that are tightened flush with an Allen key to prevent snagging on the bow roller.
Note: We recommend using a thread-locking compound (such as Loctite) on the pins during final installation to ensure maximum security. Available at 4boats.co.uk.
