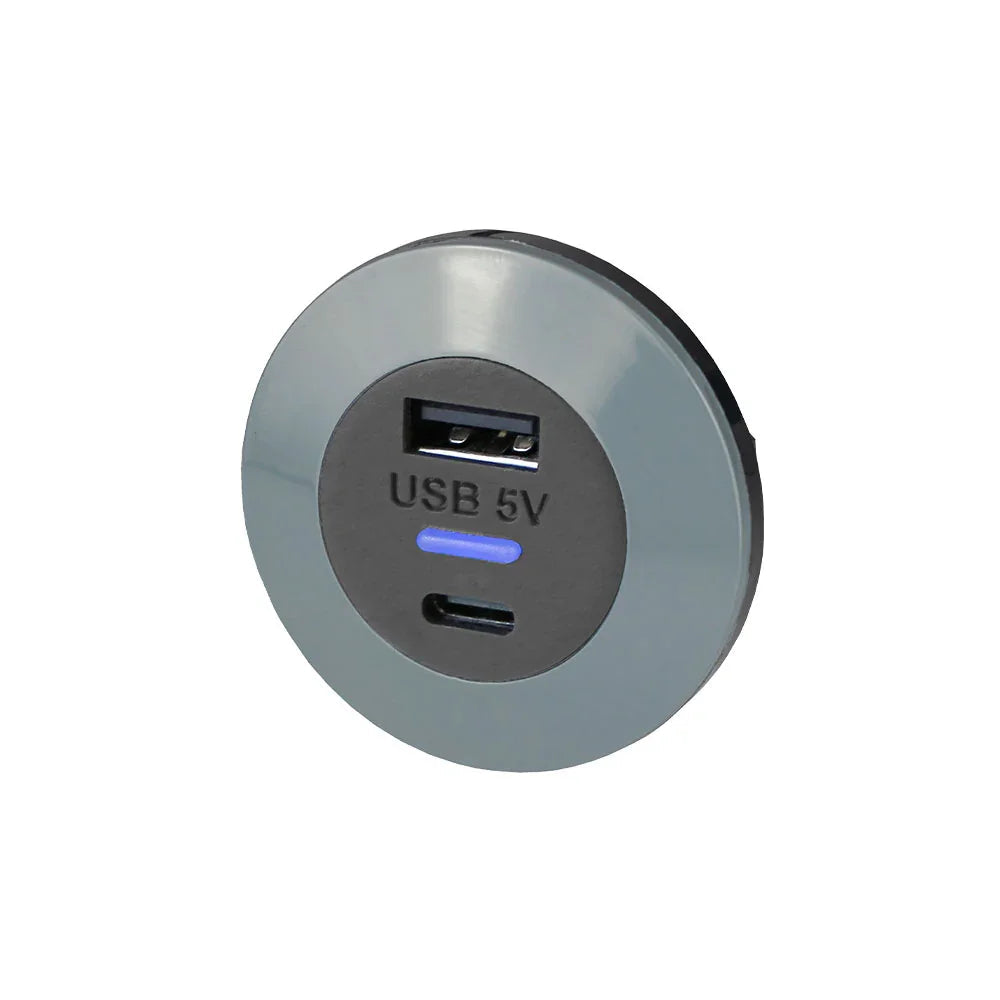

Alfatronix PVPro-ACff USB Charger
Dual USB-A & Type-C | 12V/24V | Front Fit
The Alfatronix PVPro-ACff is a high-performance, professional-grade USB charging socket designed specifically for demanding marine and vehicle environments. Part of the updated PowerVerter Pro range, this unit provides both a traditional USB Type-A port and the latest USB Type-C port, allowing passengers and crew to charge modern smartphones, tablets, and laptops with maximum efficiency.
Key Features
- ✔ Dual Output: 1 x USB-A & 1 x USB-C ports
- ✔ Front Fitting: Easy install in dashboards or panels
- ✔ Auto-Detection: Optimized for Apple & Android devices
- ✔ Blue LED: Subtle indicator for night-time visibility
- ✔ Safe: Short-circuit & over-current protection
Technical Specs
| Input Voltage | 9-32Vdc (12V/24V) |
| Output Voltage | 5.2Vdc +/- 0.2V |
| Total Current | 3.6A Max |
| Quiescent Current | < 2.5mA |
| Mounting Hole | 30mm Diameter |
| IP Rating | IP30 |
Compatibility & Application Guide
| Application | System Type | Notes |
|---|---|---|
| Marine Vessels | 12V/24V DC | Ideal for consoles, cabins, and seating areas. |
| Commercial Vehicles | 12V/24V DC | Buses, coaches, and truck dashboards. |
| Leisure / Off-Grid | 12V/24V DC | Campervans, caravans, and motorhomes. |
OEM & Series Cross Reference
| Part Number / SKU | PVPro-ACff / PVPRO-ACFF |
| Related Models | PVPro-AC (Rear Nut), PVPro-S (Single), PVPro-D (Double) |
| Brand Compatibility | Universal (Alfatronix PowerVerter Series) |
Questions & Answers
Is this a genuine Alfatronix part?
Yes, this is an authentic Alfatronix PVPro series charger, manufactured in the UK to high commercial standards.
What is the benefit of the "Front Fit" version?
The Front Fit (ff) version allows you to screw the charger into the panel from the front. This is vital when you cannot reach the back of the panel to tighten a standard retaining nut.
Can it charge a laptop via the USB-C port?
It provides up to 3.6A total output. While it will provide "charge assistance" for some tablets and smaller laptops, it is primarily designed for high-speed charging of mobile phones and standard tablets.

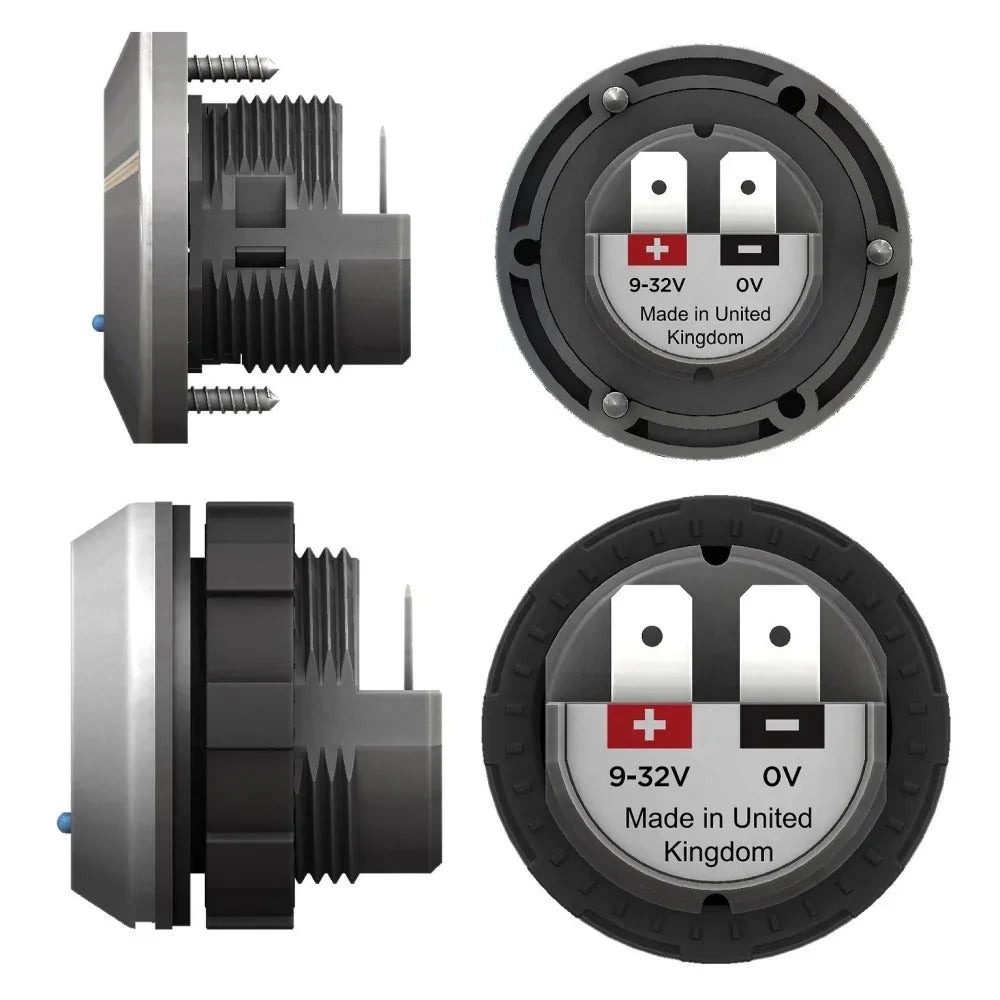

Note: 4boats.co.uk recommends verifying your panel thickness and hole diameter (30mm) before installation. Input connections require 6.3mm push-on blade terminals.
