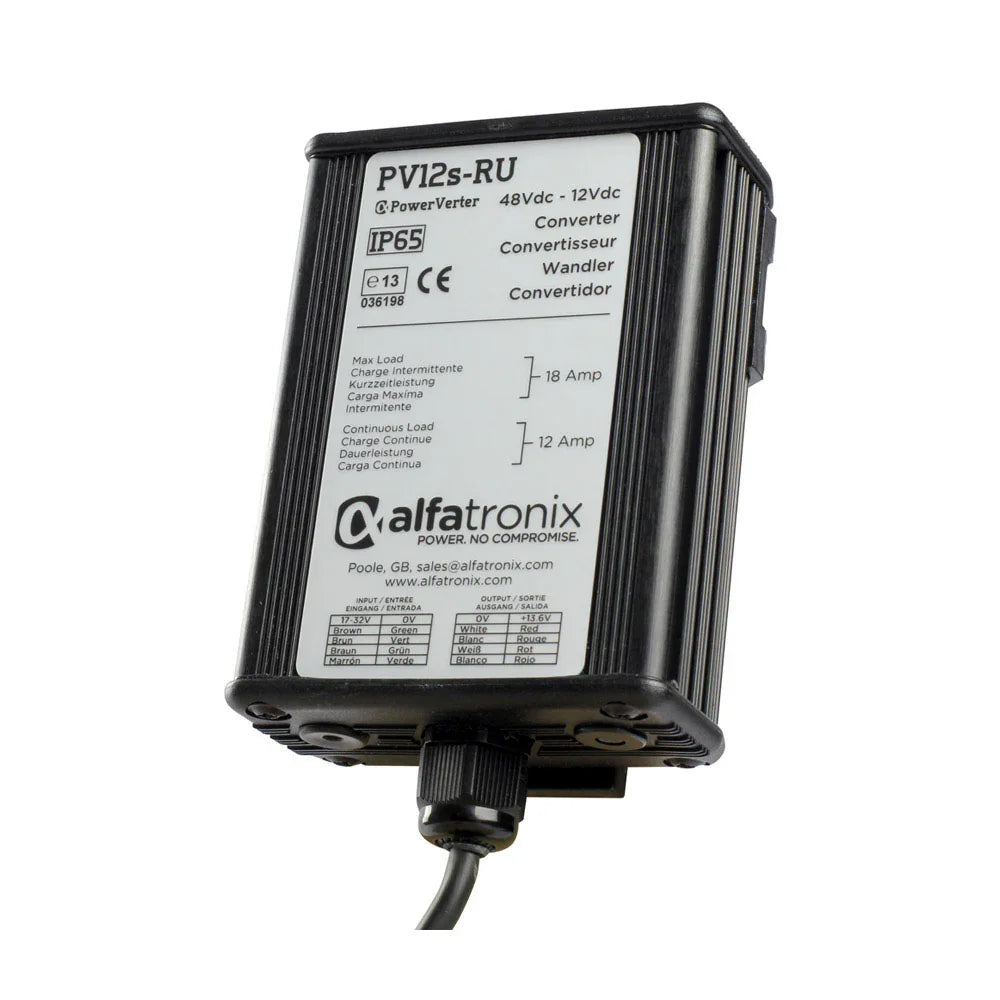

MARINE GRADE PROTECTION: Features an innovative GORE-TEX® breathable vent that prevents internal pressure build-up while maintaining a total seal against water and dust.

Key Features

• ✔ Fully Isolated: Safeguards sensitive electronics.
• ✔ IP65 Rated: Dust-tight and protected against water jets.
• ✔ GORE-TEX® Vent: Prevents seal failure from pressure changes.
• ✔ Click ‘n’ Fit: Fast 3-point mounting on uneven surfaces.
• ✔ Pre-Wired: Supplied with 1m of cable as standard.

Technical Specs

Input Voltage:	17VDC - 32VDC
Output Voltage:	13.6VDC (+15%/-20%)
Cont. Current:	12 Amps
Int. Current:	18 Amps
Efficiency:	Typically 85%
Dimensions:	186 x 91 x 52mm
Weight:	690g

Application	System Type	Notes
Marine Vessels	24V Battery Systems	Perfect for UHF Marine Radios & Navigation.
Commercial HGV	Diesel Engine 24V	Ideal for 12V refrigerators & telematics.
Agriculture/Forestry	Heavy Plant 24V	Designed for high-vibration off-road use.

Is this unit completely waterproof?

Yes, it is rated to IP65. This means it is dust-tight and protected against water projected from a nozzle from any direction. It is suitable for mounting in exposed areas such as boat decks or external vehicle chassis.

What is the benefit of the "Isolated" design?

Isolated converters (Galvanic Isolation) provide a complete electrical break between the input and output. This is essential in marine environments to prevent electrolytic corrosion and to ensure that noise or spikes on the 24V side do not damage sensitive 12V navigation or radio equipment.

Can it handle higher startup currents?

Yes, while the continuous rating is 12A, the PV12I-RU can handle an intermittent load of up to 18A for a maximum of 2 minutes followed by an 8-minute rest period.
