RELIABILITY: Engineered with surface-mount technology (SMT) for superior vibration resistance and an IP53 rating to protect against dust and water spray.

Key Features

• ✔ Galvanic Isolation: Prevents ground loops.
• ✔ Click 'n' Fit Mounting: Quick, 3-point installation.
• ✔ Low Power Consumption: Off-load current <15mA.
• ✔ Status Indicator: LED for instant output confirmation.
• ✔ UK Manufactured: Built to rigorous EU standards.

Technical Specs

Input Voltage:	17VDC - 32VDC
Output Voltage:	13.6VDC (+15%/-20%)
Continuous Rating:	6 Amps (72 Watts)
Intermittent Rating:	10 Amps (Max 2 mins)
Efficiency:	Approx. 85%
Weight:	505g
Dimensions:	127 x 87 x 50mm

System Type	Typical Equipment	Notes
Marine Vessels	VHF Radios, GPS, Radar, Sounders	Isolated design eliminates comms noise.
HGV / Trucks	Tachographs, Telematics, Phone Chargers	Robust IP53 casing for dash/cab mounting.
Off-Grid / Solar	12V LED Lighting, Refrigeration	Suitable for any 24V battery bank source.

Is this a genuine original part?

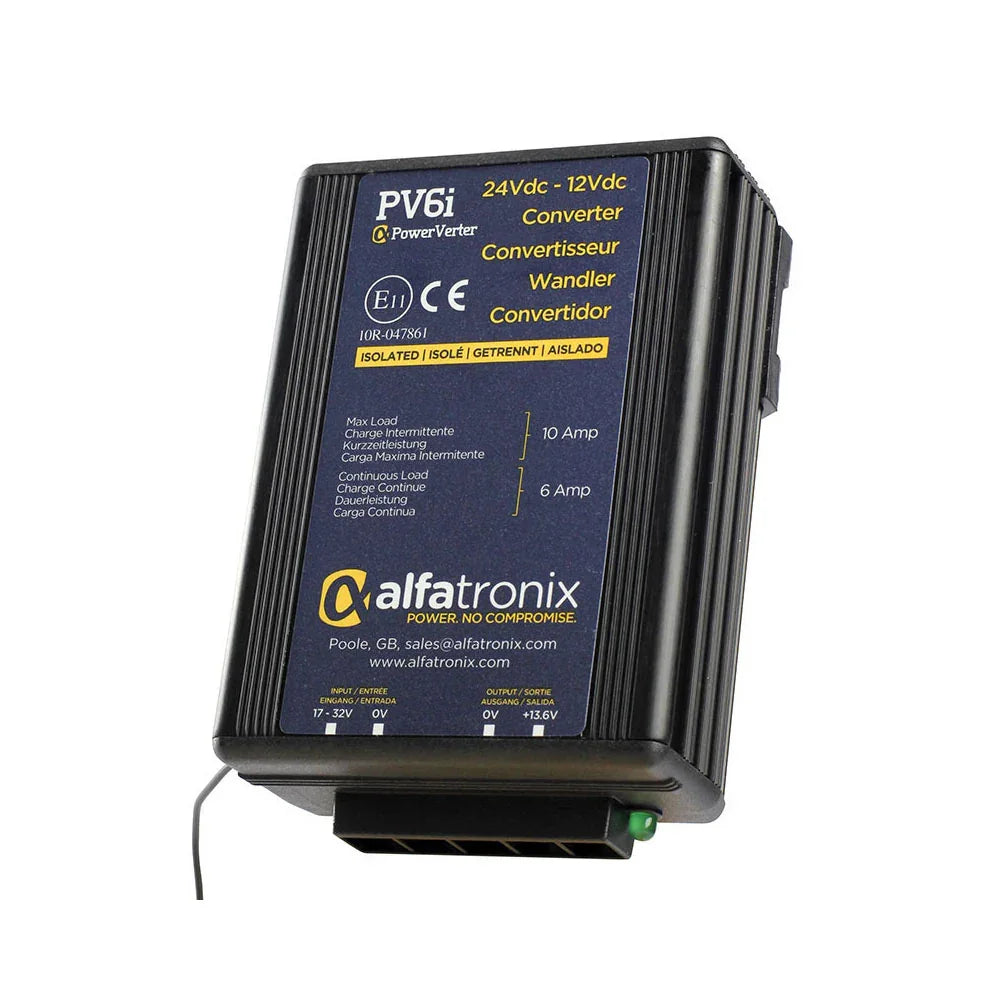

Yes, this is an authentic Alfatronix product, manufactured in the UK and supplied with their industry-leading reputation for reliability.

Why should I choose an "Isolated" version (PV6i) over the "Non-Isolated" (PV6s)?

Isolated converters prevent ground loop interference. They are essential for marine comms, radio equipment, and certain emergency vehicle applications where electrical isolation between the 24V source and 12V output is required for safety or signal clarity.

What happens if I exceed 6 Amps?

The unit can handle up to 10 Amps intermittently (for up to 2 minutes). For continuous loads exceeding 6 Amps, the internal thermal protection will safeguard the unit, but we recommend upgrading to a PV12i or PV18i for higher sustained power requirements.
