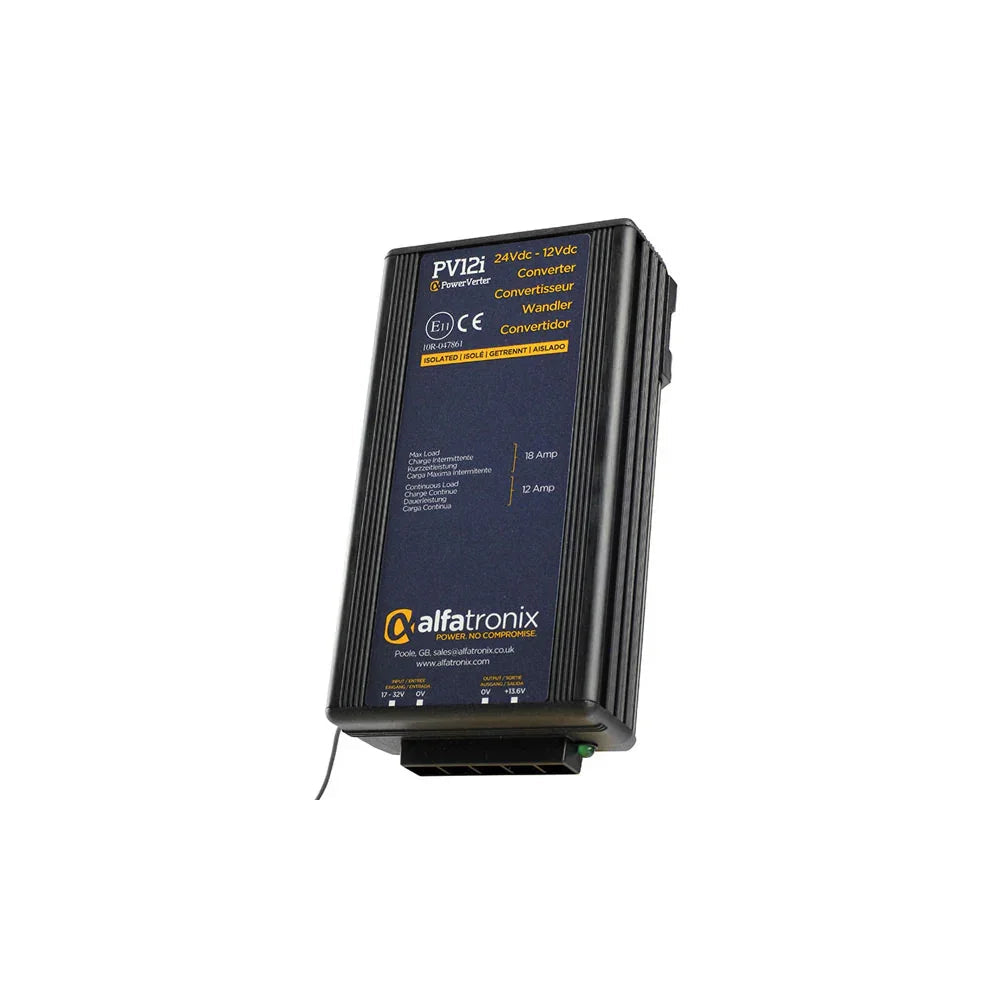

Alfatronix PowerVerter PV12i
24V to 12V Isolated Voltage Converter (12A Continuous)
The Alfatronix PV12i PowerVerter is a professional-grade isolated DC-DC converter designed to provide a stable 12Vdc power supply from 24Vdc electrical systems. This "i" version features galvanic isolation, providing a high level of protection by ensuring there is no direct electrical connection between the input and output, which eliminates ground loop interference and enhances safety on marine vessels and commercial vehicles.
Key Features
- ✔ Galvanic Isolation: Input/Output/Case >400Vrms
- ✔ Click 'n' Fit: Rapid 3-point mounting clip system
- ✔ IP53 Rated: Dust and splash protection (no holes)
- ✔ LED Status: Green indicator for output confirmation
- ✔ Low Drain: Off-load current <15mA
Technical Specs
| Input Voltage | 17V - 32V DC |
| Output Voltage | 13.6V DC |
| Continuous Load | 12 Amps (144W) |
| Intermittent Load | 18 Amps (Max 2 mins) |
| Dimensions | 167 x 87 x 50 mm |
| Weight | 590g |
Compatibility / Fitment Guide
| System Type | Typical Application | Suitability |
|---|---|---|
| Marine Vessels | Yachts, Tugs, Workboats | VHF, GPS, Nav Equipment |
| Commercial Vehicles | Trucks, Coaches, Fire Engines | Tachographs, Mobiles, PA Systems |
| Industrial | Plant Machinery, Forestry | CCTV, Telematics, Trackers |
OEM Cross Reference
| Manufacturer PN | PV12i |
| Order Code | 7052 / 1182706 / 011-PV12I |
| Series | Alfatronix PowerVerter Isolated |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Alfatronix product manufactured in the UK, provided with a lifetime manufacturer's warranty.
What is the benefit of an "Isolated" converter?
Isolated converters (PV12i) ensure there is no electrical path between the input and output. This prevents interference on sensitive radio and navigation equipment and is often required for safety in marine environments.
Can I use this for a 12A constant load?
Yes, the PV12i is rated for a continuous load of 12 Amps. It can handle intermittent peaks up to 18 Amps for short durations (max 2 minutes).
Note: Please ensure your current draw does not exceed 12A continuous for optimal performance and longevity. Contact 4boats.co.uk support for technical advice.
