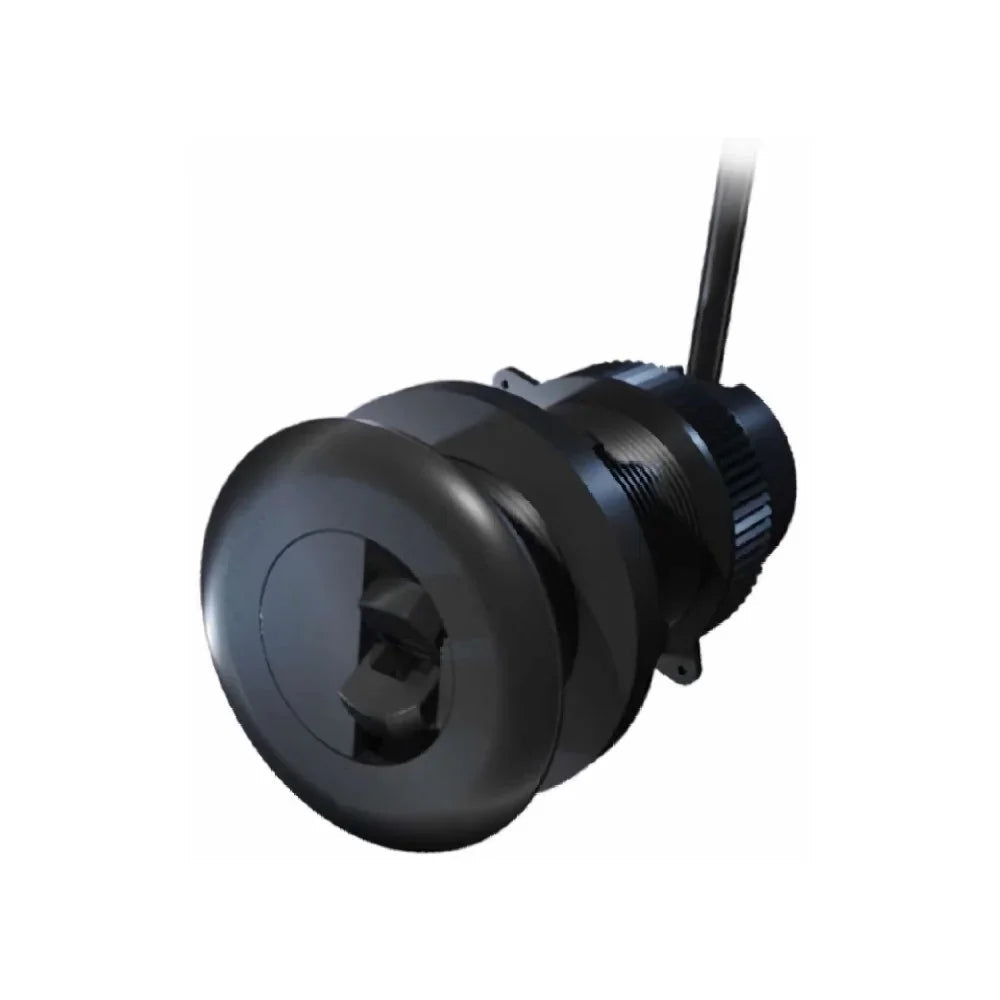

Airmar DST810 Smart Multisensor NMEA 2000 Depth Speed Temp Attitude Transducer
Airmar DST810 Smart Multisensor NMEA 2000 Depth Speed Temp Attitude Transducer
Couldn't load pickup availability
Airmar DST810 Smart Multisensor
Depth, Speed, Temperature & Vessel Attitude
The Airmar DST810 represents the next generation of marine sensing. This Smart™ Multisensor combines precise depth, speed, and temperature signals with an integrated attitude sensor for heel/trim and pitch/roll data. Utilizing a redesigned Gen2 paddlewheel, it delivers industry-leading low-speed performance starting at just 0.3 knots.
Key Features
- ✔ 5Hz Speed Output: Visibly smoother reporting
- ✔ Integrated Attitude Sensor: Heel & trim data
- ✔ Gen2 Paddlewheel: Responsive from 0.3 to 45 knots
- ✔ Bluetooth Calibration: Fast & wireless setup
- ✔ 235 kHz Frequency: No interference with fishfinders
Technical Specs
| Interface: | NMEA 2000® / Bluetooth |
| Mounting: | 51mm (2") Hole |
| Max Depth: | 100m (330 ft) |
| Voltage: | 9 - 16 VDC (N2K) |
| Deadrise: | Up to 22° |
| Cable Length: | 6m (20') |
Compatibility / Fitment Guide
| Network/Brand | Compatibility | Notes |
|---|---|---|
| NMEA 2000® | Universal | Works with Garmin, Simrad, B&G, Furuno, etc. |
| Raymarine | SeaTalk NG | Requires NMEA2000 to SeaTalkng adapter cable. |
| Retrofit | DST800 / DT800 | Fits existing Airmar 2" P617V housings. |
| Hull Material | GRP / Metal | Plastic housing model (Not for wood hulls). |
OEM Cross Reference
| Airmar MPN | DST810-PV-N2 / 61259 |
| Garmin Part Number | 010-02264-00 |
| Navico (Simrad/B&G) | 000-15736-001 |
| Raymarine SKU | E70667 (SeaTalkng Version) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Airmar Smart™ Multisensor, the industry standard for NMEA 2000 data sensing.
How do I know if it is compatible?
If you have a NMEA 2000 backbone and a 51mm (2 inch) hole (or an existing DST800 housing), this sensor is a direct fit. Check your plotter for NMEA 2000 support.
Can I calibrate this without a multi-function display?

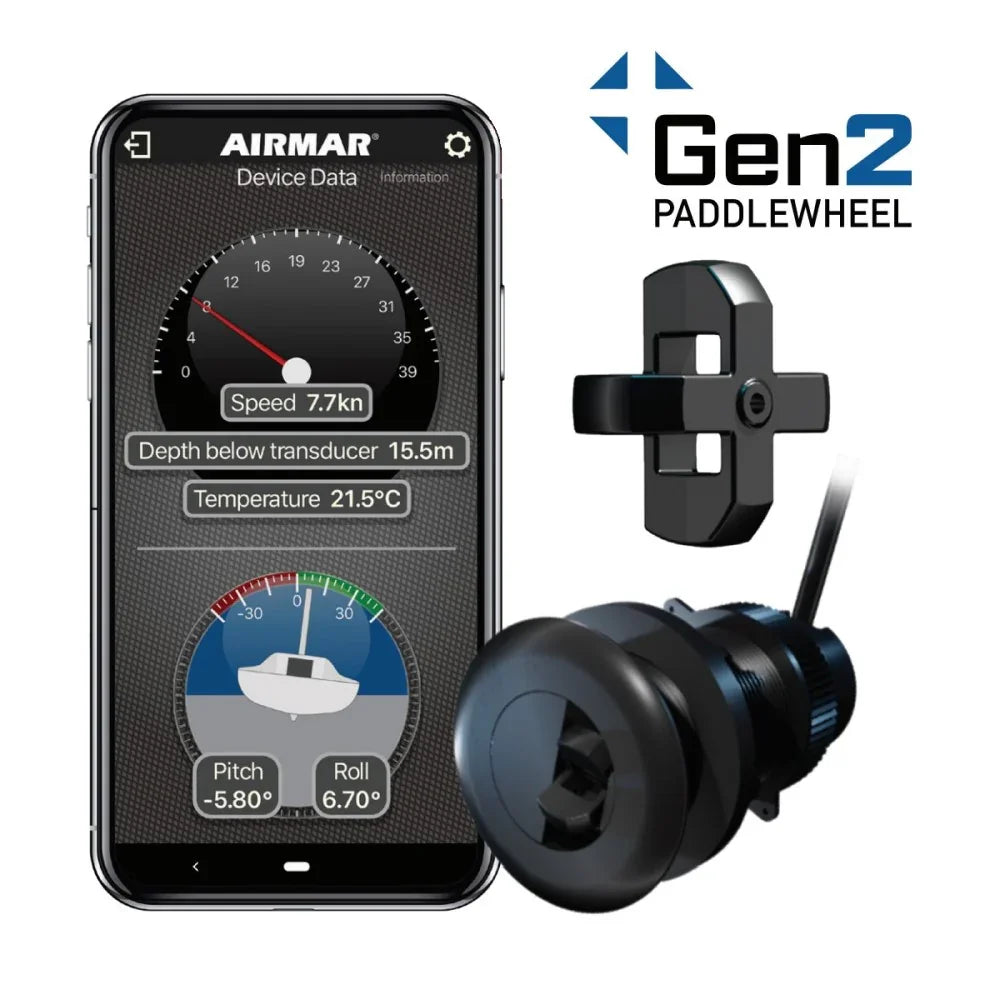

Yes. One of the primary advantages of the DST810 is that it can be calibrated directly via Bluetooth using the Airmar CAST™ app on any smartphone or tablet.
Note: Please verify your hull material before installation. Plastic housings are suitable for fiberglass and metal hulls only. For wood hulls, a bronze housing is required.
