RELIABILITY: Engineered with Actisense's award-winning ISO-Drive technology, this unit provides complete galvanic isolation to prevent hazardous ground loops and protect your expensive electronics.

Key Features

• ✔ Bi-directional 0183 to 2000 conversion
• ✔ Integrated WiFi streaming (TCP/UDP)
• ✔ Voyage data logging via Micro SD slot
• ✔ ISO-Drive isolated serial interface
• ✔ IP67 rated waterproof enclosure

Technical Specs

Supply Voltage:	9 to 30V DC
N2K LEN:	2 (100mA max)
Baud Rate:	Up to 230,400 bps
WiFi Protocol:	802.11 b/g/n
Operating Temp:	-20°C to +70°C

System Type	Compatible Brands	Notes
NMEA 2000 Networks	Garmin, Simrad, Lowrance, Furuno	Standard Micro-C M12 Male connection
NMEA 0183 Devices	Legacy GPS, AIS, Wind/Depth sensors	Bare wire ISO-Drive interface
WiFi Mobile Apps	Navionics, iNavX, Aqua Map, TimeZero	Streams NMEA 0183 over WiFi

Is this a genuine original part?

Yes, we are authorized suppliers. This is a genuine Actisense product manufactured in the United Kingdom.

How do I know if it is compatible?

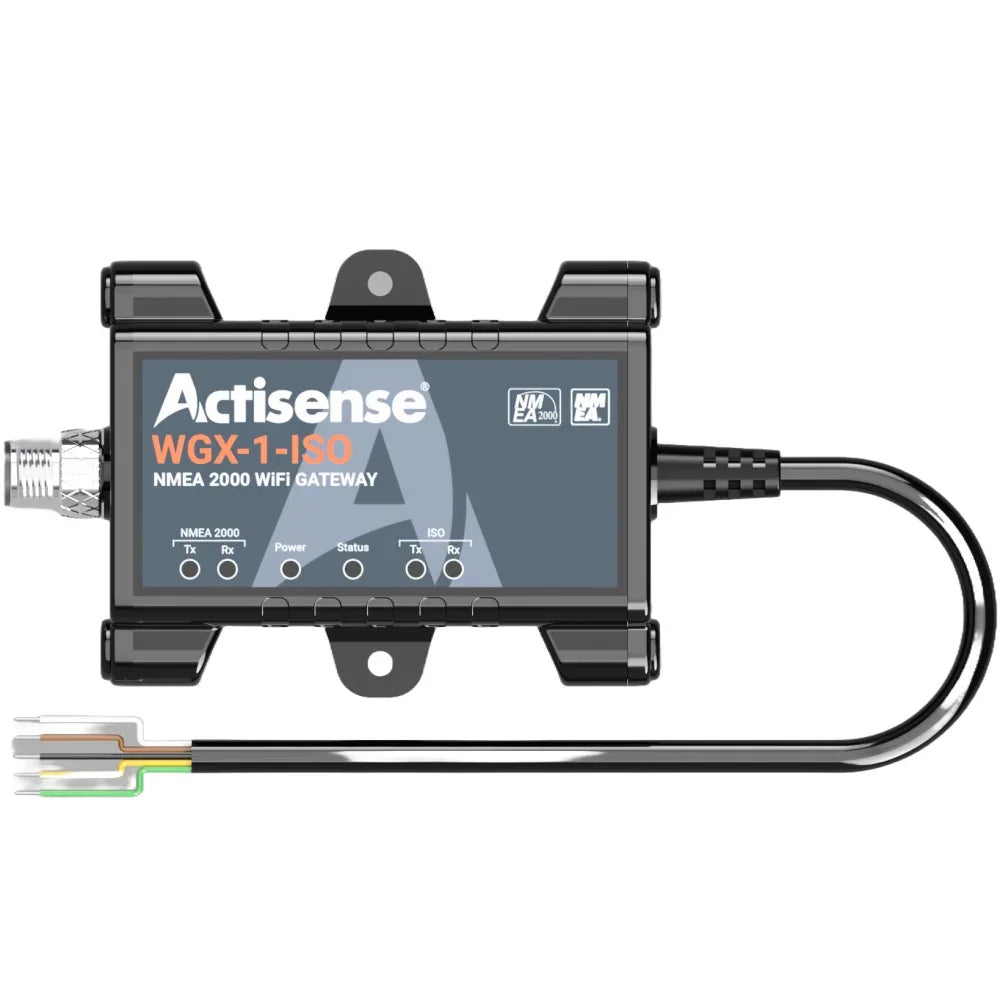

If you have NMEA 0183 equipment (bare wires) and want to connect it to an NMEA 2000 backbone while also seeing data on your phone, the WGX-1-ISO is the correct choice.

Can it work as an Access Point?

Yes, the WGX-1-ISO can act as its own WiFi Access Point or connect to an existing on-board WiFi network as a client.
