Actisense PRO-NDC-1E2K NMEA 0183 Multiplexer & NMEA 2000 Gateway Type Approved
Actisense PRO-NDC-1E2K NMEA 0183 Multiplexer & NMEA 2000 Gateway Type Approved
Couldn't load pickup availability

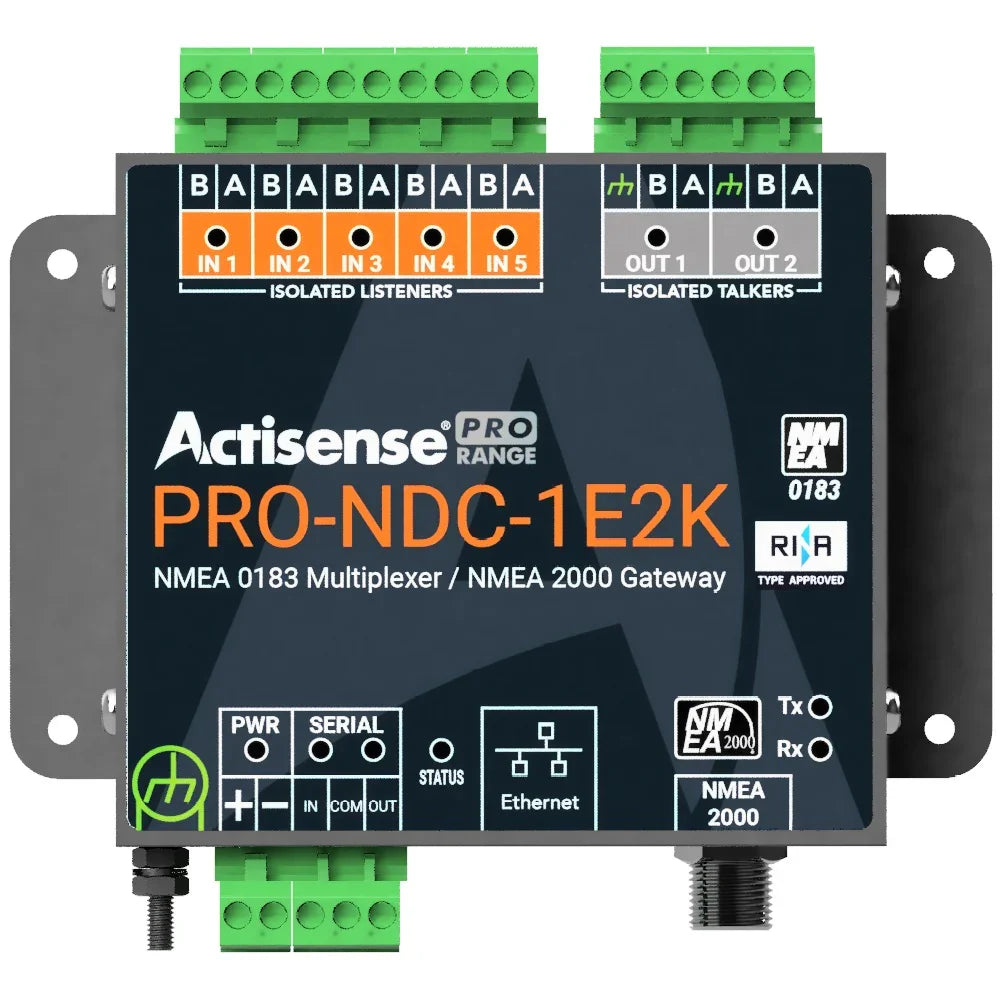

Actisense PRO-NDC-1E2K
Intelligent NMEA 0183 Multiplexer & NMEA 2000 Gateway
The Actisense PRO-NDC-1E2K is a professional-grade, RINA type-approved solution designed for complex marine networks. Combining a powerful NMEA 0183 multiplexer with a bi-directional NMEA 2000 gateway, it allows for seamless data flow between legacy equipment, modern chartplotters, and Ethernet-based systems. Its rugged stainless steel construction and industry-leading isolation ensure your marine electronics are protected from hazardous ground loops.
Key Features
- ✔ 5 OPTO-isolated NMEA 0183 inputs
- ✔ 2 ISO-Drive NMEA 0183 outputs
- ✔ Bi-directional NMEA 2000 Gateway (M12)
- ✔ Ethernet port for streaming & web config
- ✔ Advanced data filtering & routing
Technical Specs
| Supply Voltage: | 9 to 35 V DC |
| Current Draw: | 150mA max @ 12V DC |
| NMEA 2000 Port: | M12 Male (Integrated) |
| Ethernet: | 10/100 Base-T (RJ45) |
| Baud Rates: | 4800 to 115200 bps |
| Housing: | Stainless Steel 304 |
| Dimensions: | 139 x 98 x 26 mm |
Compatibility / Fitment Guide
| Network Type | Device Support | Notes |
|---|---|---|
| NMEA 0183 | Legacy GPS, Depth, AIS, Wind | Supports RS422, RS232, & RS485 |
| NMEA 2000 | Garmin, Raymarine, Simrad, Lowrance | Standard M12 Micro-C connection |
| Ethernet | PC-based Nav (TimeZero, OpenCPN) | Streaming over TCP/UDP |
OEM Cross Reference
| Brand | Part Number (SKU) |
| Actisense | PRO-NDC-1E2K |
| Predecessor (0183 only) | NDC-5 |
| Related Model | PRO-NDC-1E |
Questions & Answers
Is this a genuine Actisense part?
Yes, this is an authentic Actisense professional series product, supplied in original packaging with full manufacturer certification.
How do I know if it is compatible?
If you need to bridge NMEA 0183 data (like an old AIS or GPS) onto an NMEA 2000 backbone while multiplexing multiple signals, this unit is the industry standard for that application.
Does it require a special PC cable for setup?
No. The PRO-NDC-1E2K features a built-in web server. You simply connect a standard Ethernet cable to your laptop or network and configure it via any web browser.
Note: Please verify your original part number against the references above before purchasing. Professional installation is recommended for commercial NMEA networks.
