Actisense A2K-FFC-SM NMEA 2000 Field Fit Connector Straight Male Micro-C IP67
Actisense A2K-FFC-SM NMEA 2000 Field Fit Connector Straight Male Micro-C IP67
Couldn't load pickup availability

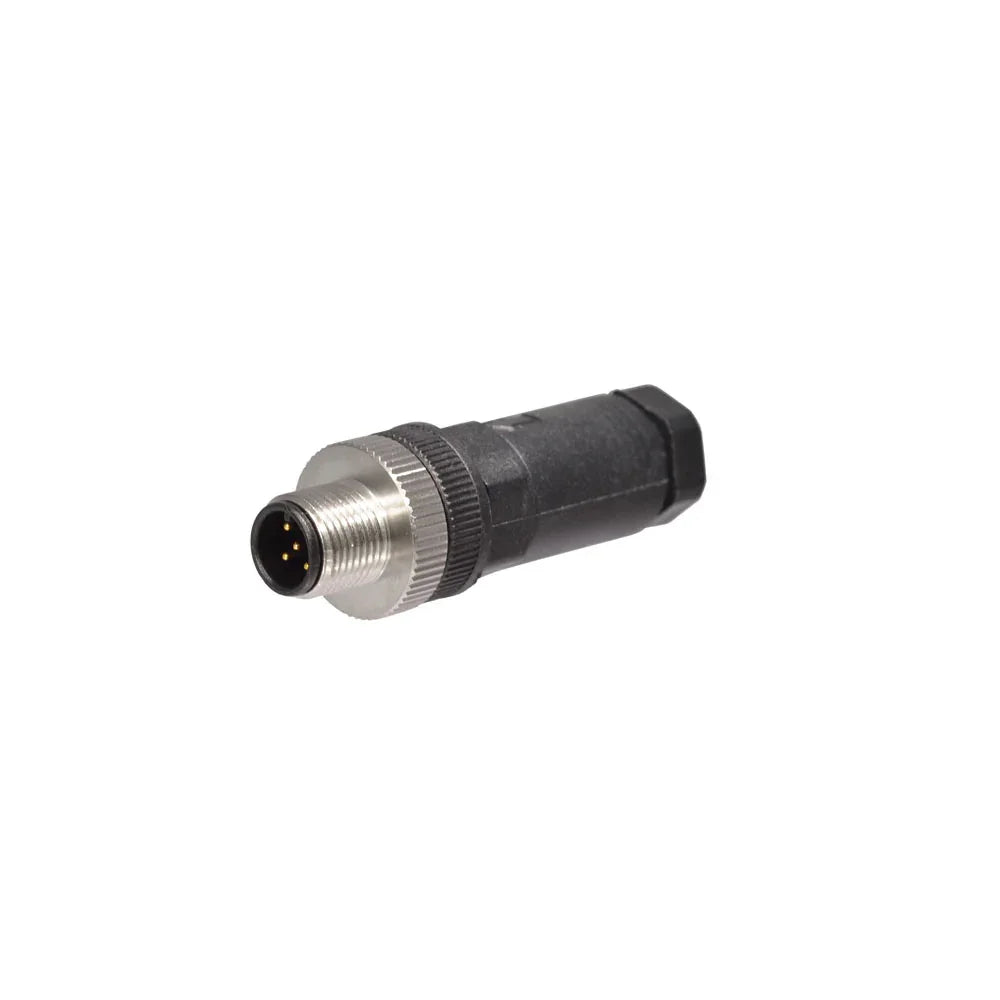

Actisense A2K-FFC-SM Connector
NMEA 2000 Field Fit Straight Male Micro-C
The Actisense A2K-FFC-SM is a professional-grade NMEA 2000 Field Fit Connector designed to allow installers and boat owners to create custom-length cables or perform on-site repairs with ease. This straight male connector eliminates the need for excess coiled cable behind panels by enabling you to cut bulk NMEA 2000 "Lite" or "Micro" cable to the exact length required.
Key Features
- ✔ Easy Install: Simple screw terminals—no soldering required.
- ✔ Waterproof: IP67 rated (when mated) for harsh bilge or deck use.
- ✔ Universal: Fully compatible with all NMEA 2000 Micro-C networks.
- ✔ Custom Fit: Use with bulk cable to create the perfect backbone layout.
Technical Specs
| Rated Current: | 4 Amps |
| Rated Voltage: | 60 VDC |
| Contact Material: | Brass, Gold-Plated |
| Body Material: | PA + Glass Fiber |
| Wire Range: | 22 AWG (0.34mm²) |
| Cable Gland: | 6mm - 8mm (PG9) |
| Mating Thread: | Standard M12 "A" |
Compatibility / Fitment Guide
| Network System | Device Compatibility | Notes |
|---|---|---|
| NMEA 2000 Micro-C | Garmin, Simrad, Lowrance, B&G, Furuno | Direct connection to standard backbone/drop. |
| Raymarine SeaTalk NG | Axiom, i70, Evolution Autopilots | Requires SeaTalk NG to N2K adapter cable. |
| Custom Backbone | Actisense Bulk Cable Reel | Ideal for 100M bulk cable projects. |
OEM Cross Reference
| Garmin Part Number | 010-11094-00 / 010-11080-00 |
| Maretron Part Number | FA-CM-ST |
| Ancor Part Number | 270104 |
| Navico / Lowrance | 000-0119-79 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Actisense A2K series component, engineered by the NMEA experts in the UK for high-performance data networking.
How do I know if it is compatible?
If you have a standard NMEA 2000 network (Micro-C connectors) from Garmin, Lowrance, or Simrad, this male connector will fit perfectly. It is designed for use with Lite/Micro-size marine cable.
Do I need special tools to install this?
No special crimping tools are required. You only need standard wire strippers and a small screwdriver to secure the internal screw terminals.
Note: Please verify your existing cable diameter (6-8mm) before purchase to ensure the watertight sealing gland fits your specific cable. Distributed via 4boats.co.uk.
