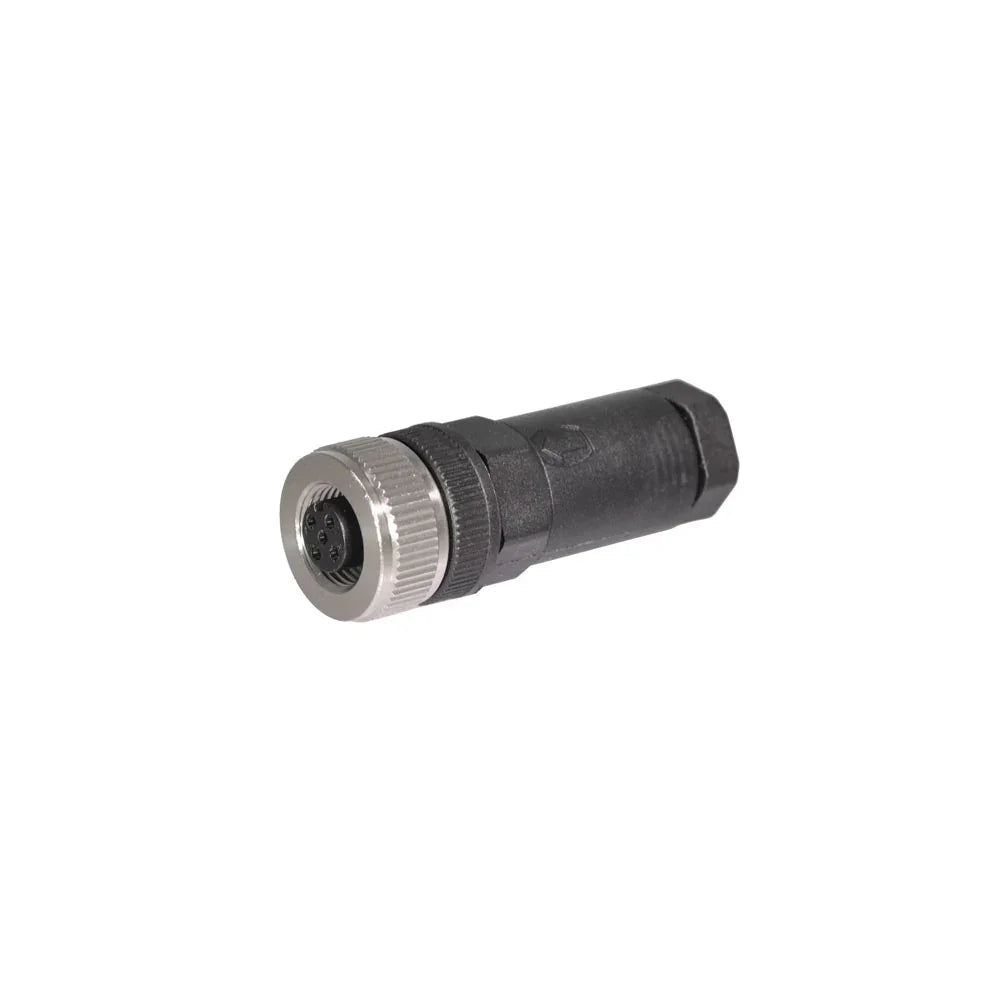

Actisense A2K-FFC-SF NMEA 2000 Field Fit Connector Straight Female Micro-C
Actisense A2K-FFC-SF NMEA 2000 Field Fit Connector Straight Female Micro-C
Couldn't load pickup availability
Actisense A2K-FFC-SF Connector
NMEA 2000 Field Fit - Straight Female
The Actisense A2K-FFC-SF is a premium Micro Field Fit Connector designed to allow installers and boat owners to create custom-length NMEA 2000 cables or repair existing backbone and drop lines. By utilizing screw terminals, it eliminates the need for specialized crimping tools while maintaining a professional-grade connection.
Key Features
- ✔ Straight Female Micro-C orientation
- ✔ Gold-plated brass contacts
- ✔ Tool-less field installable (Screw terminals)
- ✔ IP67 Waterproof rating (when mated)
Technical Specs
| Rated Current: | 4A |
| Rated Voltage: | 60V DC |
| Mating Thread: | M12 |
| Polarization: | Standard "A" |
| Cable Gland: | PG9 (6-8mm Cable) |
| Wire Gauge: | 22 AWG / 0.34mm² |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| NMEA 2000 | Universal Micro-C Backbone | Compatible with all N2K networks |
| Garmin | Marine Network / GMN | Standard Micro-C Fitment |
| Navico / Simrad | SimNet / Micro-C | B&G, Lowrance compatible |
| Raymarine | SeaTalk NG (via adapter) | Uses DeviceNet standard pins |
OEM Cross Reference
| Actisense SKU: | A2K-FFC-SF |
| UPC / EAN: | 5060998710058 |
| Reference Style: | Micro-C Straight Female Field Mount |
Questions & Answers
Is this a genuine original part?
This is a genuine Actisense component, widely regarded as the industry standard for high-reliability NMEA 2000 networking equipment.
How do I know if it is compatible?
If your network uses standard "Micro-C" or "Lite" cabling (the most common NMEA 2000 standard used by Garmin, Lowrance, and Simrad), this connector is a guaranteed fit.
Does this require soldering?
No, this connector features internal screw terminals. You only need a small screwdriver to secure the wires, making it ideal for on-boat repairs and custom installations.
Note: Ensure the sealing gland is tightened correctly to maintain the IP67 waterproof integrity of the connection on your 4boats.co.uk equipment.
