Nuova Rade Male Fuel Connector
1/4-inch NPT | Suzuki / Chrysler >60 CV | Code 31946

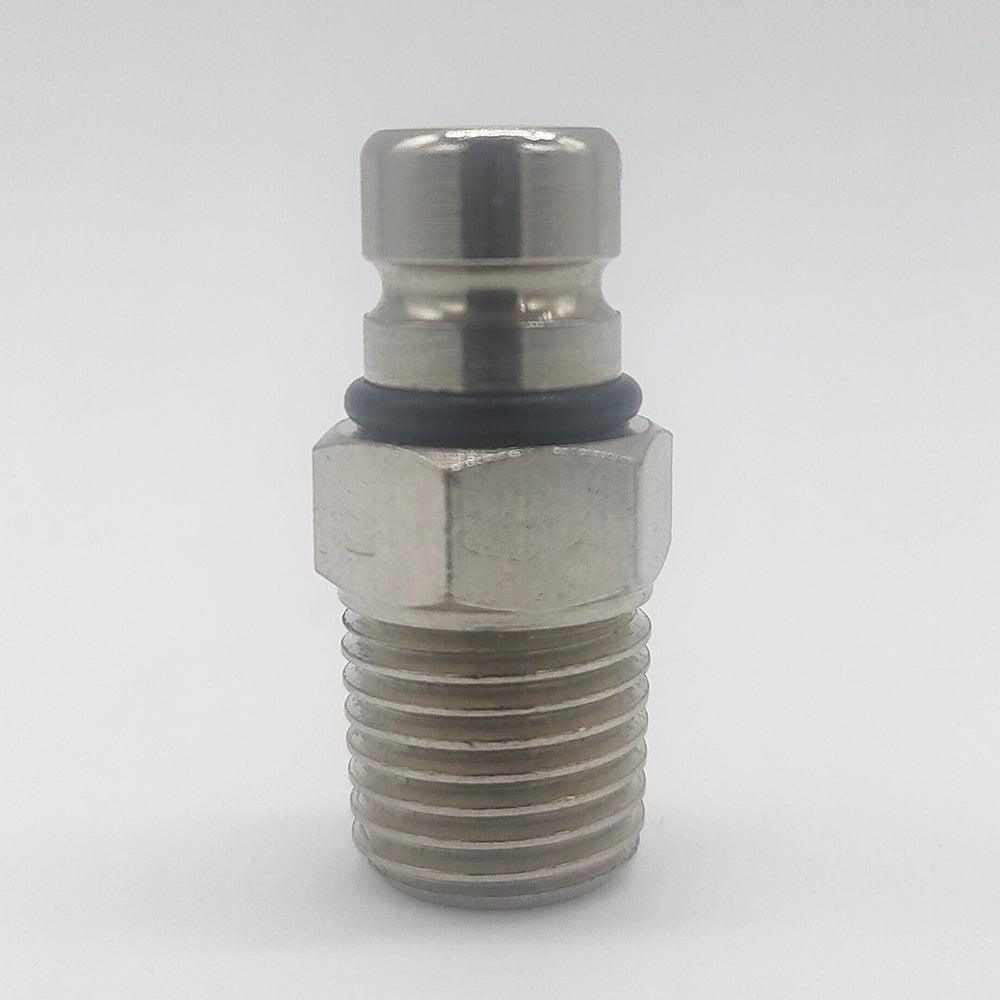

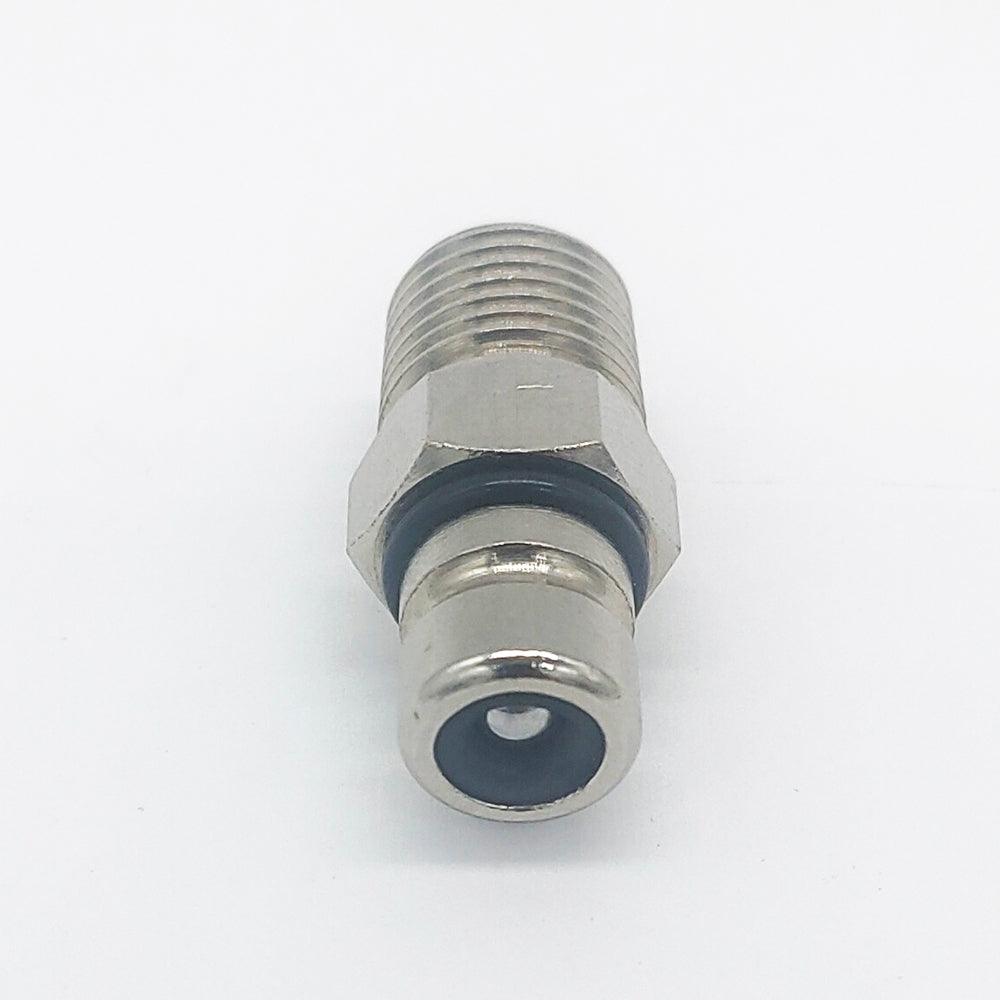

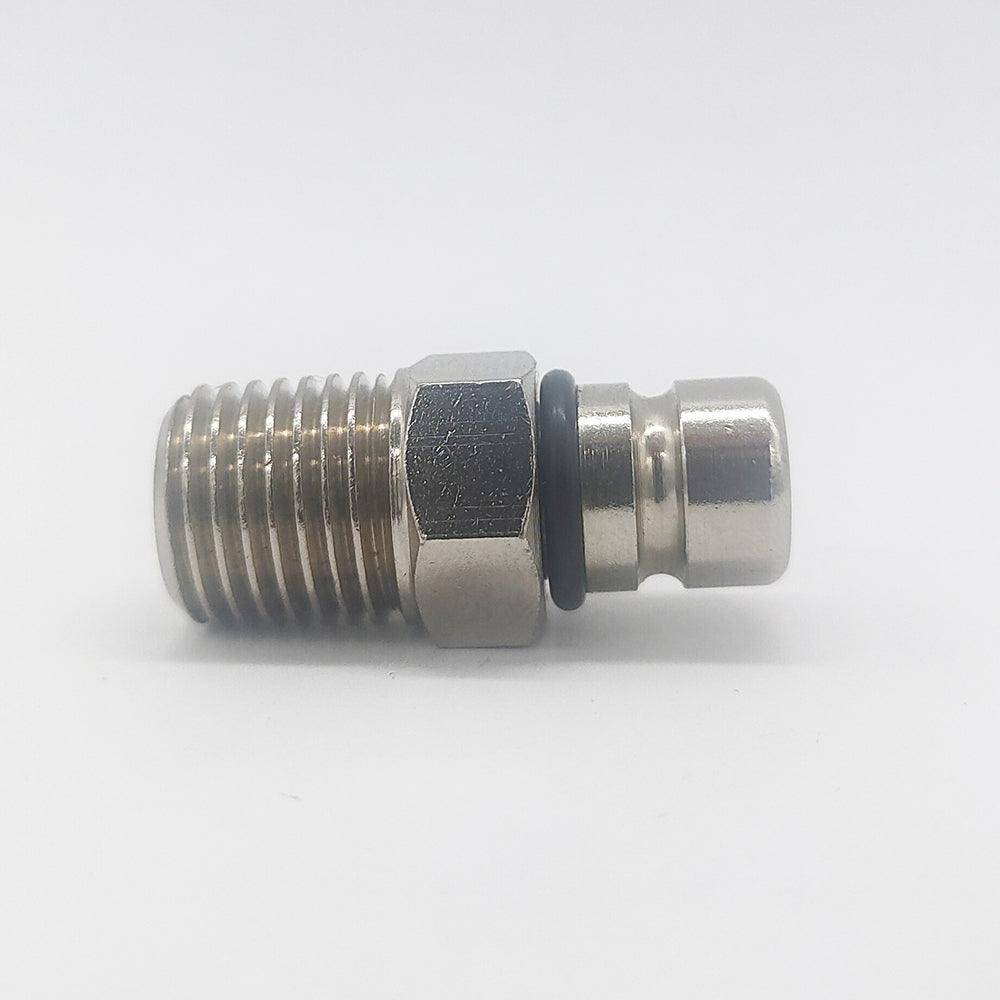

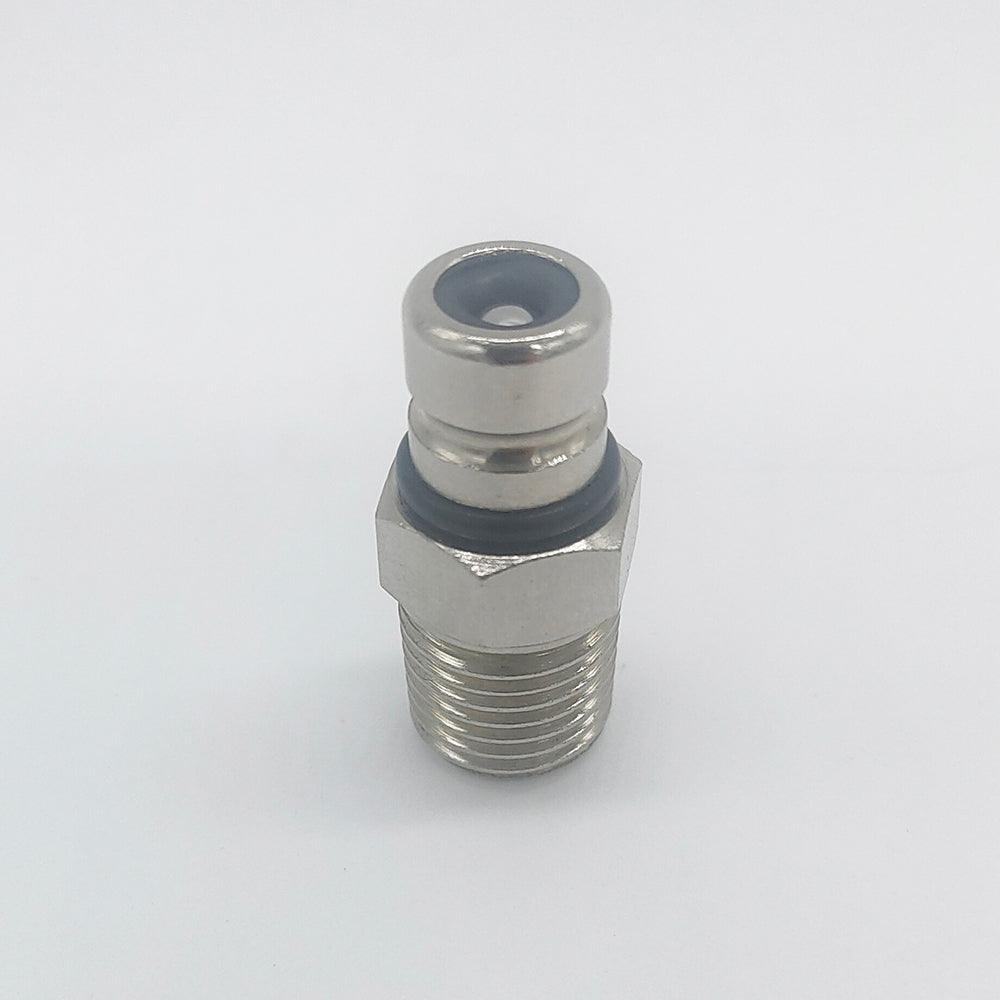

Nuova Rade code 31946 is a chrome-plated brass male fuel connector with a 1/4-inch NPT threaded end. The manufacturer catalogues it for Suzuki/Chrysler outboard fuel-system applications above 60 CV.
Key Features
- Male quick-connect fuel fitting
- 1/4-inch NPT male threaded connection
- Chrome-plated brass construction
- Catalogue application: Suzuki / Chrysler over 60 CV
- Single replacement connector
Technical Specs
| Product code | 31946 |
| Connector gender | Male quick-connect |
| Thread | 1/4-inch NPT male |
| Material | Chrome-plated brass |
| Application class | Suzuki / Chrysler, over 60 CV |
| Quantity | 1 connector |
Compatibility / Fitment Guide
This fitting is selected by the mechanical interface, not simply by Suzuki branding. The engine or tank must have the matching quick-connect arrangement and a compatible 1/4-inch NPT female threaded port.
| Manufacturer application | Suzuki and Chrysler outboard fuel systems listed for the >60 CV connector family |
| Thread requirement | 1/4-inch NPT female port; do not substitute BSP or straight threads |
| Mating connector | Must match the Suzuki/Chrysler quick-connect profile used with Nuova Rade 31946 |
| Installation position | Install only where the original male connector uses the same thread and orientation; compare the removed fitting |
| Sealing | Use a fuel-compatible NPT thread sealant sparingly and keep sealant out of the fuel passage |
| Pre-use test | Prime the system and inspect for leakage, air ingress and secure latching before running the engine |
Not universal: Do not use on every Suzuki/Chrysler outboard, on BSP-threaded ports, or solely because the engine exceeds 60 hp. Match the actual fitting and thread.
Part Number Cross Reference
| Nuova Rade / Lalizas code | 31946 |
| 4Boats SKU | 31946 |
| Catalogue description | Male fuel connector, 1/4-inch NPT, >60 CV, Suzuki/Chrysler |
No unrelated OEM number is claimed. Compare code, NPT thread and connector shape with the original part.
Frequently Asked Questions
Is 1/4-inch NPT the same as 1/4-inch BSP?
No. The thread forms and sealing methods differ; forcing the wrong fitting can damage the port or leak fuel.
Will it fit every Suzuki over 60 hp?
No. The >60 CV note identifies the catalogue family, but the 1/4-inch NPT port and mating connector must also match.
Is a hose barb included?
This listing is for the threaded male connector shown; verify all pictured components before ordering.
What should I check after fitting?
Prime the line without starting the engine, inspect for fuel leakage and confirm the connector locks and releases correctly.
Fuel-system work should be carried out with ignition sources removed and adequate ventilation. Replace damaged hose, seals or clamps rather than reusing suspect parts.
