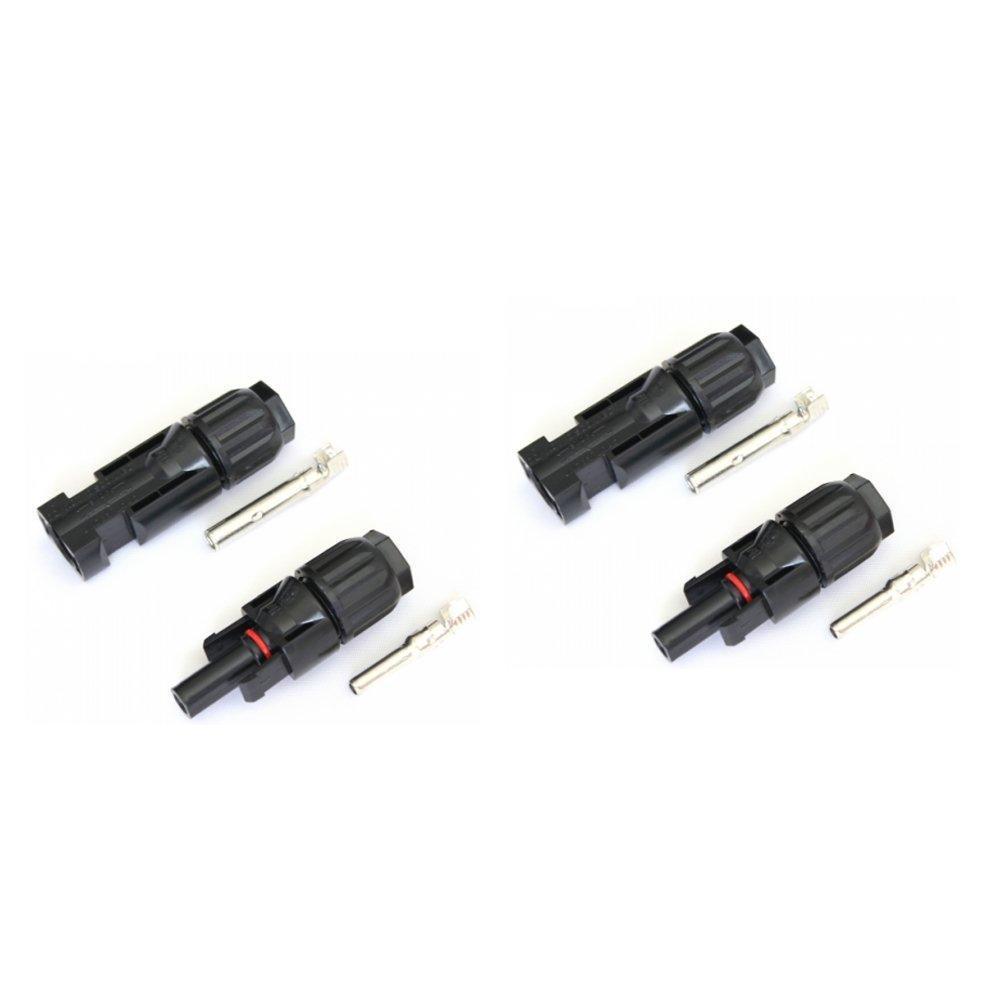

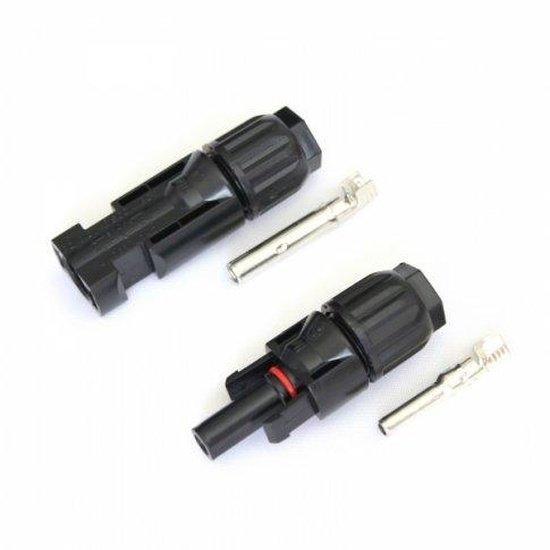

2 Pairs MC4 Solar Connectors for 10mm2 Cable 8AWG PV Panel Extension Lead IP67
2 Pairs MC4 Solar Connectors for 10mm2 Cable 8AWG PV Panel Extension Lead IP67
Couldn't load pickup availability
MC4 Solar Connectors for 10mm² Cable
Premium 2-Pair Kit (Male & Female Sets)
Upgrade your solar array with these heavy-duty MC4 compatible connectors, specifically engineered to accommodate 10mm² (8AWG) cable. Most standard connectors are designed for smaller 4mm² or 6mm² wires; these specialized variants feature larger internal crimp terminals and wider seals to ensure a secure, weather-tight connection for high-current applications and long-distance cable runs.
Key Features
- ✔ Complete Kit: Includes 2x Male and 2x Female connectors.
- ✔ 10mm² Optimized: Fits larger 8AWG solar cables.
- ✔ IP67 Rated: Fully waterproof and dust-proof.
- ✔ Safe Locking: Stable self-locking system for secure attachment.
Technical Specs
| Rated Current: | 45A - 50A |
| Rated Voltage: | 1000V DC / 1500V DC |
| Cable Size: | 10mm² (8AWG) |
| Waterproof Class: | IP67 |
| Temperature: | -40°C to +90°C |
| Contact Material: | Copper, Tin Plated |
Compatibility / Fitment Guide
| Application | Compatibility Notes |
|---|---|
| Solar Panels | Compatible with all PV panels pre-fitted with MC4 standard leads. |
| Cable Type | Specifically for 10mm² (8AWG) cross-section solar cable. |
| Systems | Ideal for high-power residential, marine, or commercial PV arrays. |
OEM Cross Reference
| Stäubli (Multi-Contact) Ref: | 32.0034P0001 (Female) / 32.0035P0001 (Male) |
| Generic SKU: | MC4-10MM-2P / PV-KBT4-KST4-10 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
If you are using 10mm² (8AWG) solar cable, these are the correct connectors. They plug directly into the standard MC4 connectors found on the back of almost all solar panels.
Do I need a special tool to install these?
Yes, we highly recommend using a dedicated MC4 crimping tool designed for 10mm² terminals to ensure a gas-tight connection and optimal power transfer.
Note: Please verify your original cable diameter against the references above before purchasing. Available at 4boats.co.uk.
