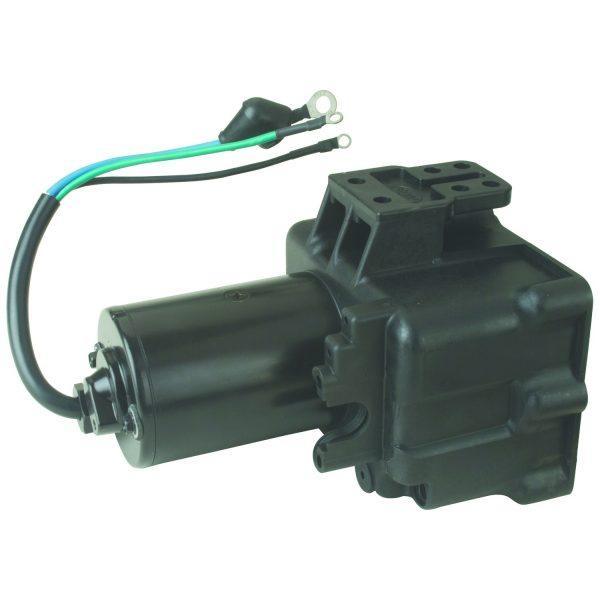

Tilt Trim Motor for Mercury & Volvo Penta Outboards 3-Wire 67914A2 76395A5

Tilt Trim Motor for Mercury & Volvo Penta Outboards 3-Wire 67914A2 76395A5

£199.00 GBP
£199.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Mercury / Volvo Penta Tilt Trim Motor

Premium 3-Wire Replacement (67914A2 / 76395A5)

This high-performance tilt trim motor is designed for the older "Prestolite-style" 3-wire systems used extensively by Mercury, Mariner, and Volvo Penta from the late 1970s through the mid-1980s. Engineered to handle the harsh marine environment, this unit comes complete with the motor, mounting reservoir, and a pre-wired harness.

RELIABILITY: Built with high-grade copper windings and marine-sealed housing to meet or exceed OEM specifications for durability and lift speed.

Key Features

  • ✔ Complete Motor & Reservoir Assembly
  • ✔ 3-Wire Configuration (Black/Blue/Green)
  • ✔ Tanged (Slotted) Shaft Drive
  • ✔ SAE J1171 Marine Ignition Protection

Technical Specs

Voltage 12V DC
Rotation Reversible
Length 8.177 in / 207.7mm
Diameter 3.07 in / 78mm
Shaft OD 0.311 in / 7.9mm

Compatibility / Fitment Guide

Make/System Model/Application Notes
Mercury Marine 35HP - 225HP Outboards Approx. 1975–1984
Mariner V6 Models & Various Mid-range Check for 3-wire harness
Volvo Penta AQ Petrol & Diesel Sterndrives AQ125, AQ131, AQ145, AQ151

OEM Cross Reference

Mercury / Mariner 67914A2, 76395A2, 76395A5, 88475A5, 92975A28, 92975A6, 93247A4, 93247A7
Volvo Penta 850834-3
Aftermarket Interchange Arco 6217, Sierra 18-6763, MES T1074M, Prestolite ERH4102

Questions & Answers

Is this a genuine original part?

This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.

How do I know if it is compatible?

We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.

What is the difference between 2-wire and 3-wire motors?

This is a 3-wire motor (Blue for Up, Green for Down, Black for Ground). Many newer systems transitioned to 2-wire systems that reverse polarity via relays. If your current motor has 3 wires coming directly out of the motor body, this is the correct replacement.

Note: Please verify your original part number against the references above before purchasing. Available at 4boats.co.uk.
