Talamex 8mm Short D-Shackle Forged 316 Stainless Steel Marine Rigging 08.556.108
Talamex 8mm Short D-Shackle Forged 316 Stainless Steel Marine Rigging 08.556.108
Couldn't load pickup availability

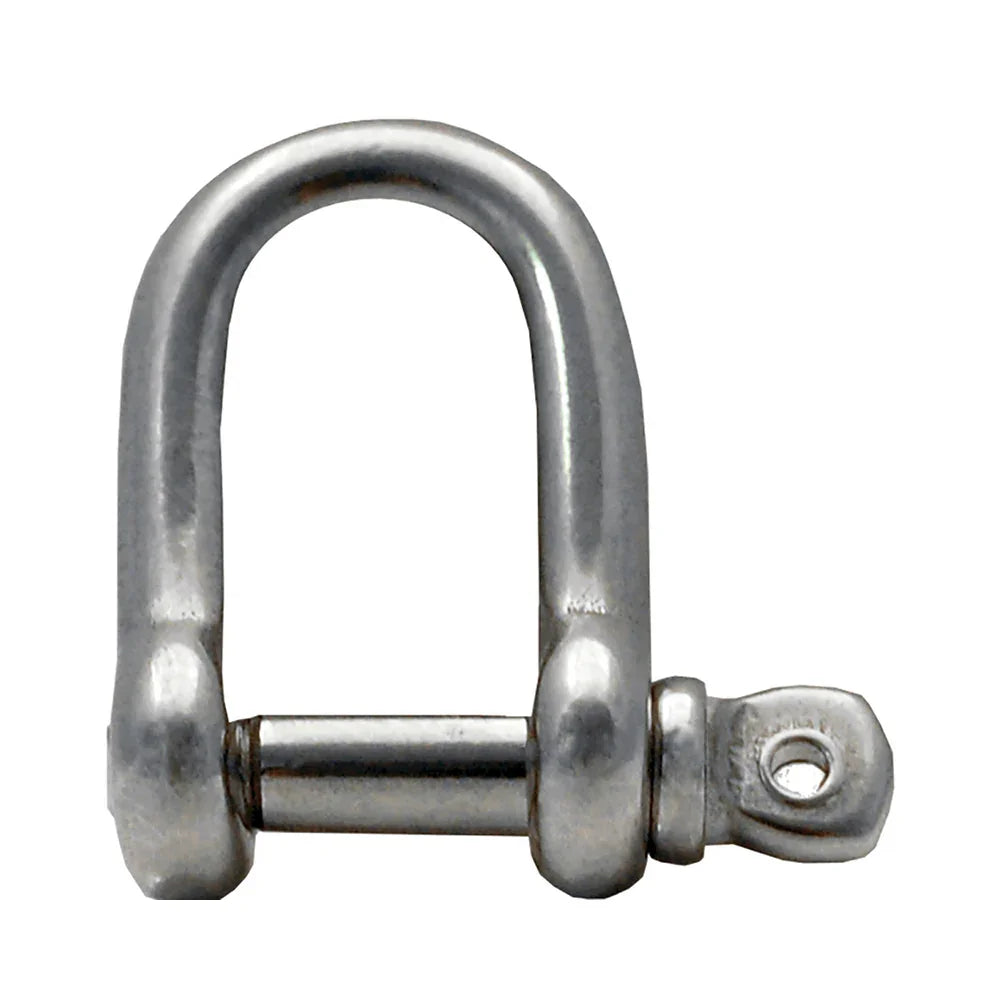

Talamex 8mm Short D-Shackle
Premium Forged 316 Stainless Steel | SKU: 08.556.108
The Talamex 08.556.108 is a professional-grade short D-shackle engineered for the demanding marine environment. Forged from high-quality AISI 316 stainless steel, this shackle offers superior resistance to pitting and corrosion in saltwater applications. Its "short" profile provides a compact and secure connection point, ideal for rigging, stays, and various deck hardware installations where space and strength are critical.
Key Features
- ✔ AISI 316 Stainless: Marine-grade A4 steel.
- ✔ Forged Strength: Enhanced structural integrity.
- ✔ Compact D-Profile: Ideal for tight rigging setups.
- ✔ Threaded Eye Bolt: Secure and easy fastening.
Technical Specs
| Pin Diameter (D) | 8 mm |
| Opening (A) | 8 mm |
| Inner Length (L2) | 28 mm |
| Inner Width (B) | 16 mm |
| Breaking Load | 2500 daN |
| Weight | ~0.065 kg |
Compatibility / Application Guide
| Category | Typical Use | Notes |
|---|---|---|
| Marine Hardware | Rigging & Stays | Standard for 8mm pin requirements. |
| Deck Equipment | Anchoring & Mooring | Secondary security and line attachment. |
| Sailing | Halyards & Blocks | Compact design prevents snagging. |
OEM Cross Reference
| Talamex MPN | 08.556.108 |
| Lindon Lewis Ref | Q053865 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Talamex marine product, distributed by Lankhorst Taselaar, known for high-standard European marine hardware.
How do I know if it is compatible?
Verify that your existing rigging or deck fitting accepts an 8mm pin. If your original part number matches 08.556.108, this is an exact replacement.
Why choose 316 Stainless Steel over 304?
AISI 316 contains molybdenum, which significantly increases resistance to chloride corrosion (saltwater) compared to 304 grade, making it the industry standard for marine rigging.
Note: Please verify your original part number and dimensions against the technical specifications above before purchasing. Distributed by 4boats.co.uk.
