Talamex 16mm Galvanised D-Shackle Heavy Duty Marine Boat Rigging 08.102.016

Talamex 16mm Galvanised D-Shackle Heavy Duty Marine Boat Rigging 08.102.016

£6.50 GBP
£6.50 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Talamex D-Shackle 16mm (Galvanised)

Professional Marine Grade Hardware | SKU: 08.102.016

The Talamex 08.102.016 is a heavy-duty 16mm D-shackle (chain shackle) engineered for reliability in demanding marine environments. Manufactured from high-tensile steel and finished with a protective galvanised coating, this shackle is an essential component for secure mooring systems, anchoring rigs, and general deck hardware applications.

RELIABILITY: Built to meet Talamex’s rigorous marine standards, offering a 4000kg breaking load for peace of mind in heavy-duty applications.

Key Features

  • ✔ Corrosion Resistant: Hot-dipped galvanised finish for saltwater durability.
  • ✔ Threaded Eye Bolt: Precision screw pin for secure and repeatable fastening.
  • ✔ Direct Fit: Compatible with 16mm chain links and marine rope thimbles.
  • ✔ Versatile Shape: Standard "D" profile ideal for inline tension loads.

Technical Specs

SKU / MPN 08.102.016
Pin Diameter 16 mm
Body Diameter 16 mm

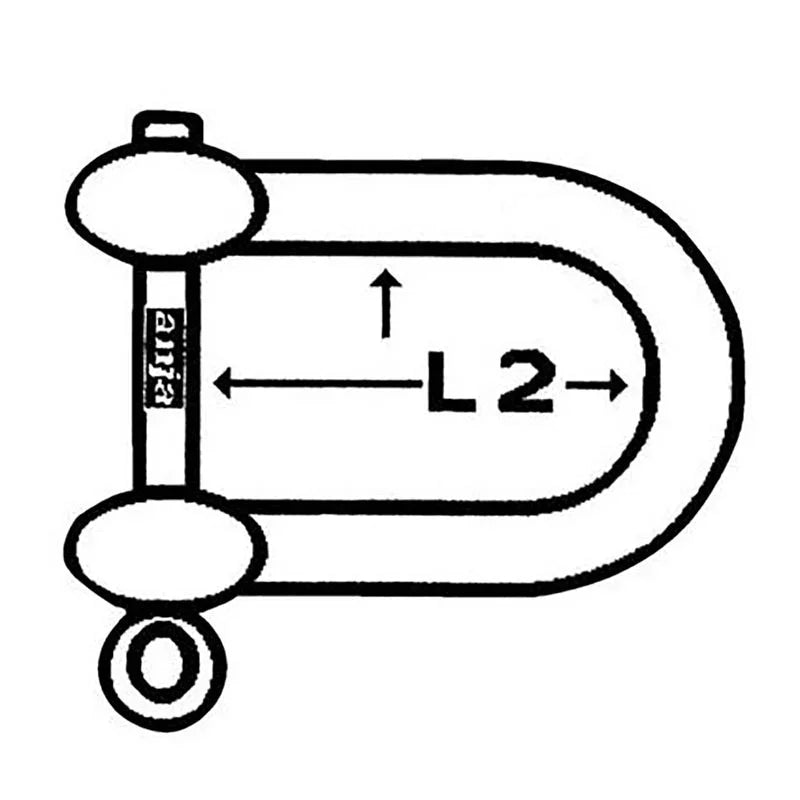

Inside Length (h) 64 mm
Inside Width (b) 32 mm
Breaking Load 4000 kg
Material Galvanised Steel

Compatibility & Fitment

Application Recommended Use Notes
Mooring Systems Buoy connection & Anchor chain Standard Marine Grade
Rigging Connecting 16mm chain/rope Ensure pin is tightened
Commercial Use General Securing Not for overhead lifting

OEM Cross Reference

Talamex SKU 08.102.016
Lankhorst Taselaar 08.102.016
Format Reference DIN 82101 (Commercial Variant)

Questions & Answers

Is this shackle suitable for permanent saltwater mooring?

Yes, the high-quality hot-dipped galvanisation provides excellent resistance to corrosion, making it ideal for marine use. However, regular inspection for wear is always recommended in harsh environments.

How do I know if it is compatible?

Verify that your chain or rope fits within the 32mm internal width. The 16mm pin is designed to match standard 14mm or 16mm chain sizes comfortably.

What is the "D" shape advantage over a Bow shackle?

D-shackles are primarily designed for straight-line (inline) tension loads. Their narrower profile compared to Bow shackles makes them ideal for connecting chain lengths or where space is limited.

Note: Please verify your original part dimensions against the references above before purchasing. Available exclusively at 4boats.co.uk.
