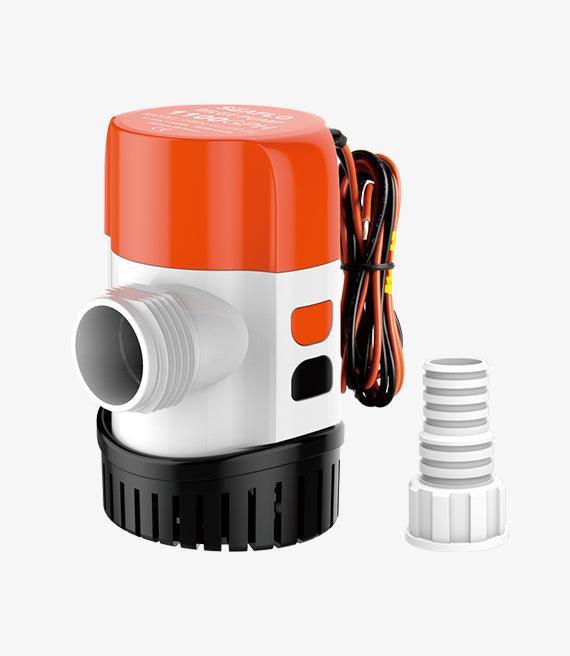

SEAFLO 24V 1100GPH Bilge Pump BP2G110013A 13A Series Marine Boat Submersible
SEAFLO 24V 1100GPH Bilge Pump BP2G110013A 13A Series Marine Boat Submersible
Couldn't load pickup availability
SEAFLO BP2G110013A 24V 1100GPH
13A Series Low-Profile Non-Automatic Bilge Pump
The SEAFLO 13A Series BP2G110013A represents the latest evolution in marine water evacuation. Engineered for 24V systems, this 1100GPH pump features an innovative quick-connect motor cartridge, allowing for rapid maintenance or replacement without disturbing your plumbing or mounting base. Its compact, low-profile design makes it ideal for tight bilge spaces in recreational and commercial vessels.
Key Features
- ✔ Quick-Connect Motor Cartridge
- ✔ Integral Check Valve Included
- ✔ Threaded Discharge Ports
- ✔ Anti-Airlock Protection
- ✔ Ignition Protected (Safe for petrol boats)
Technical Specs
| Voltage | 24V DC |
| Flow Rate | 1100 GPH (4164 LPH) |
| Max Amp Draw | 2.5A |
| Fuse Size | 5.0A |
| Max Head | 4.0m (13ft) |
| Outlet Dia. | 25mm (1") / 29mm (1-1/8") |
| Wire Lead | 1m (18 AWG) |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine Vessels | 24V DC Systems | Standard bilge evacuation for boats up to 35ft. |
| Commercial Craft | Heavy Duty 24V | High flow rate suitable for constant bilge cycles. |
| Replacement | Universal Footprint | Compatible with most standard 1100GPH mounting bases. |
OEM Cross Reference
| SEAFLO Part Number | BP2G110013A (SFBP2-G1100-13A) |
| Rule Equivalent | Rule 27D (24V 1100GPH) |
| Johnson Equivalent | Johnson L650/L750 Series (24V) |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from SEAFLO, supplied via 4Boats, designed to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN (BP2G110013A) and Cross Reference list. This model is a direct 24V replacement for most 1100GPH non-automatic bilge pumps.
Does this pump turn on automatically when water rises?
No, this is a non-automatic (manual) model. It requires a separate SEAFLO float switch or a manual dash panel switch to operate. For a fully automatic version, please see our "06 Series" or "11 Series" pumps at 4boats.co.uk.
Note: Please verify your vessel's system voltage (24V) against the references above before purchasing.
