SEAFLO 24V 750GPH Automatic Bilge Pump 06 Series Marine Boat SFBP2-G750-06
SEAFLO 24V 750GPH Automatic Bilge Pump 06 Series Marine Boat SFBP2-G750-06
Couldn't load pickup availability

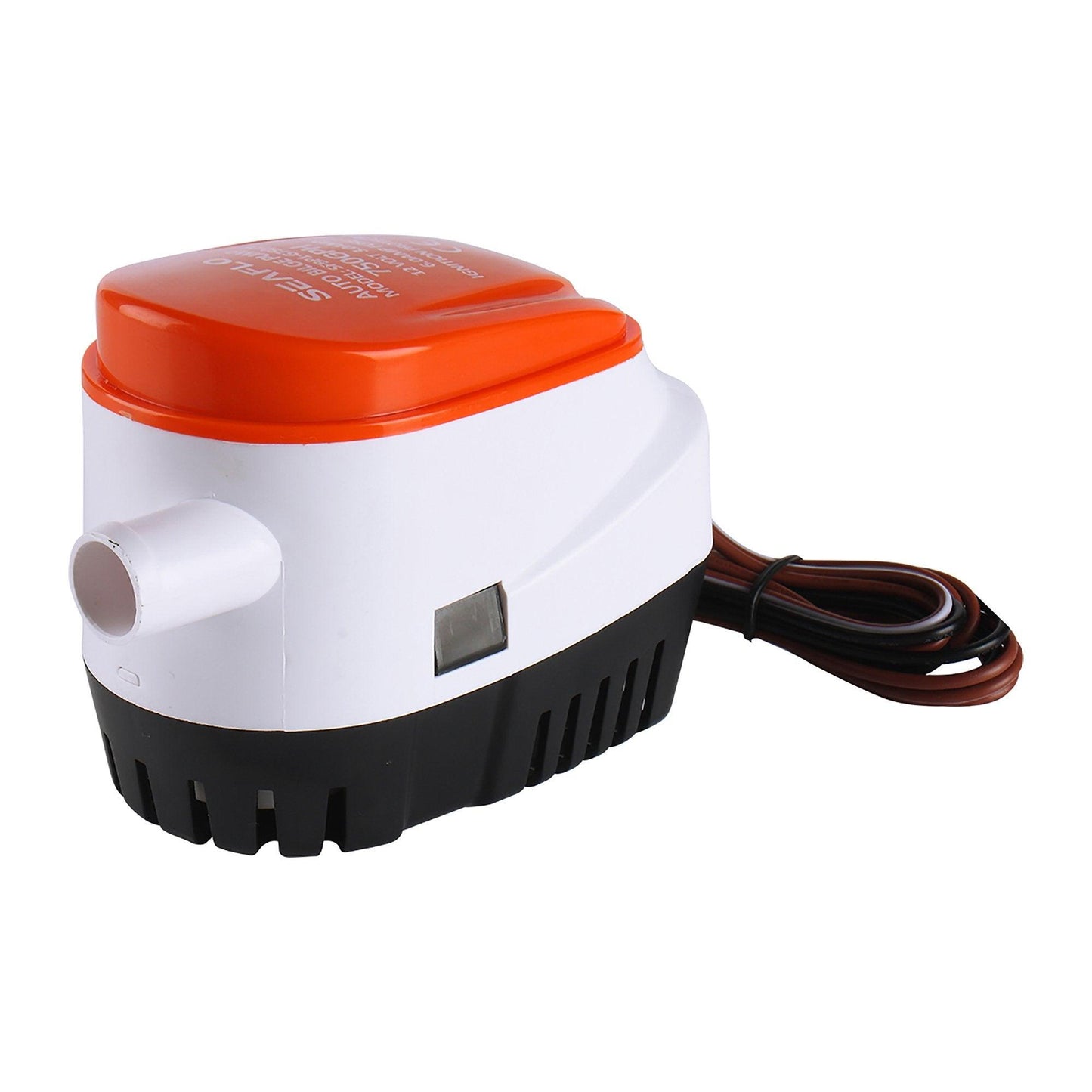

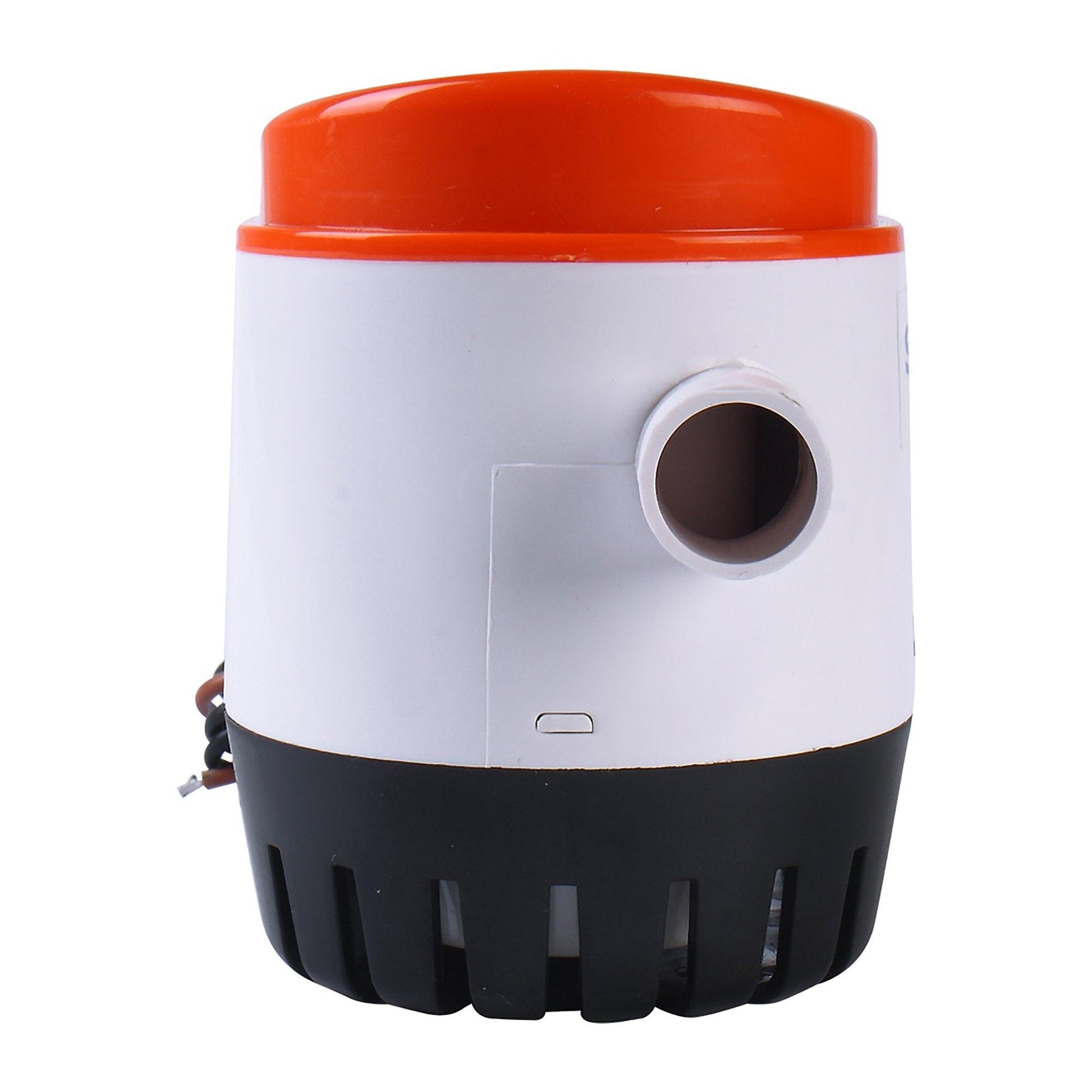

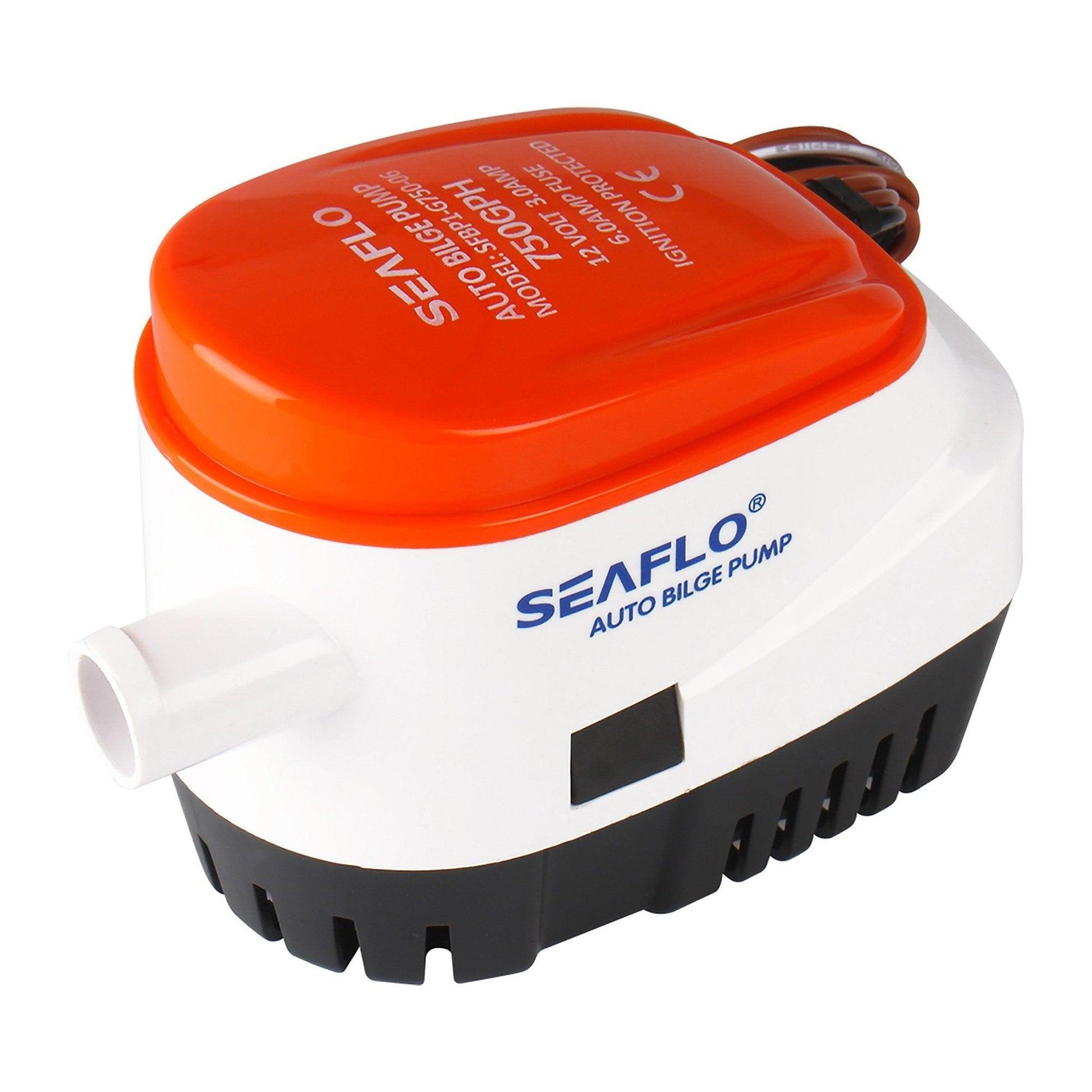

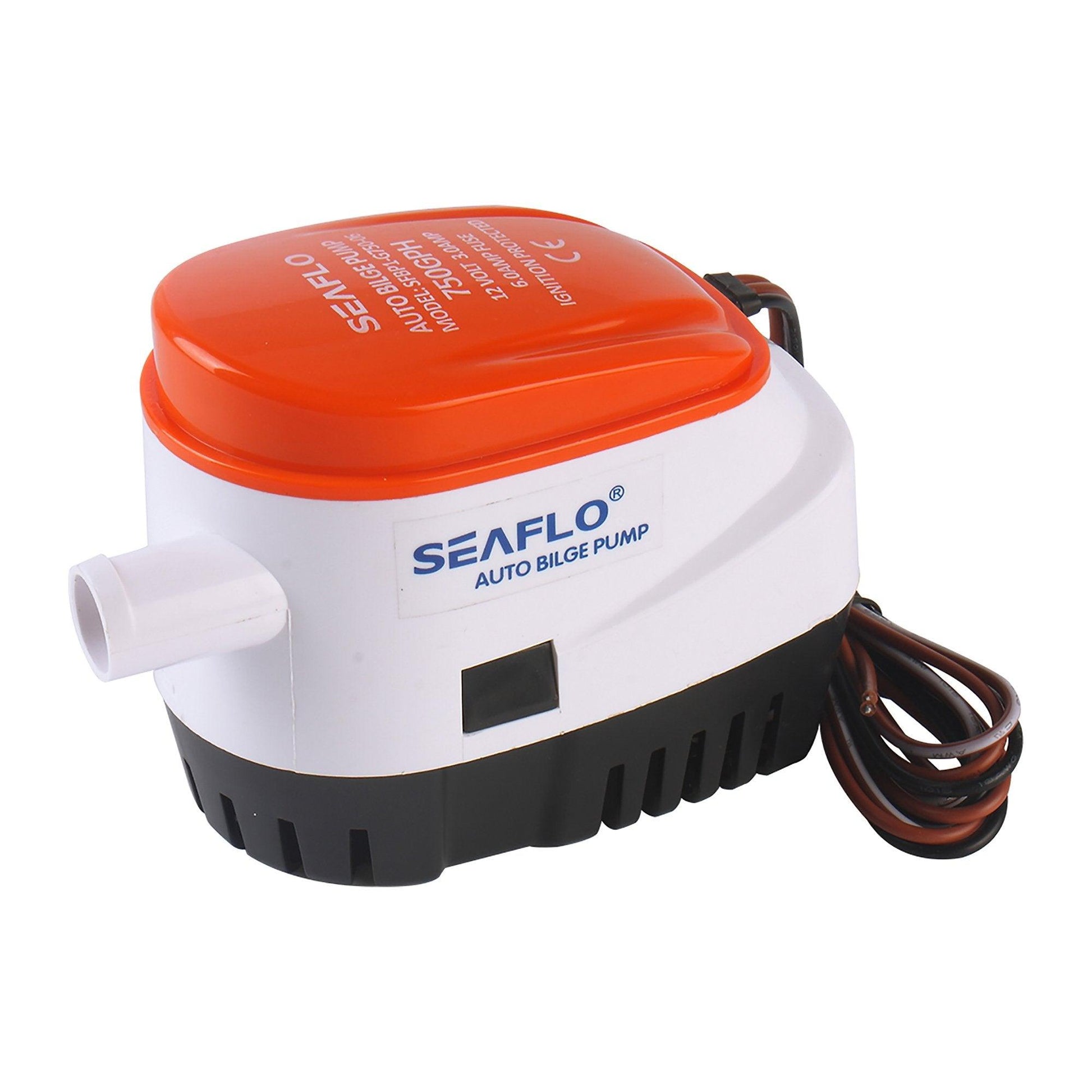

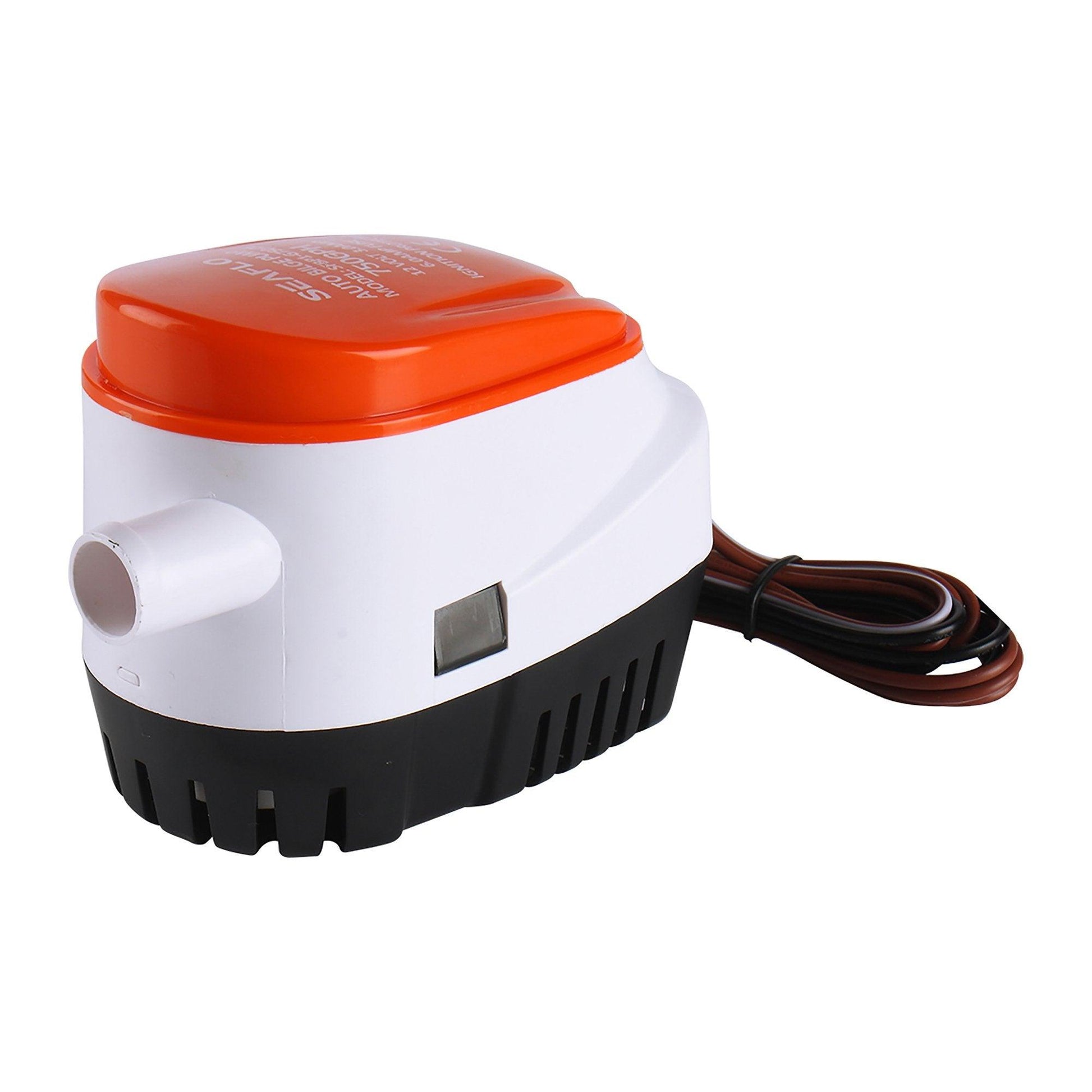

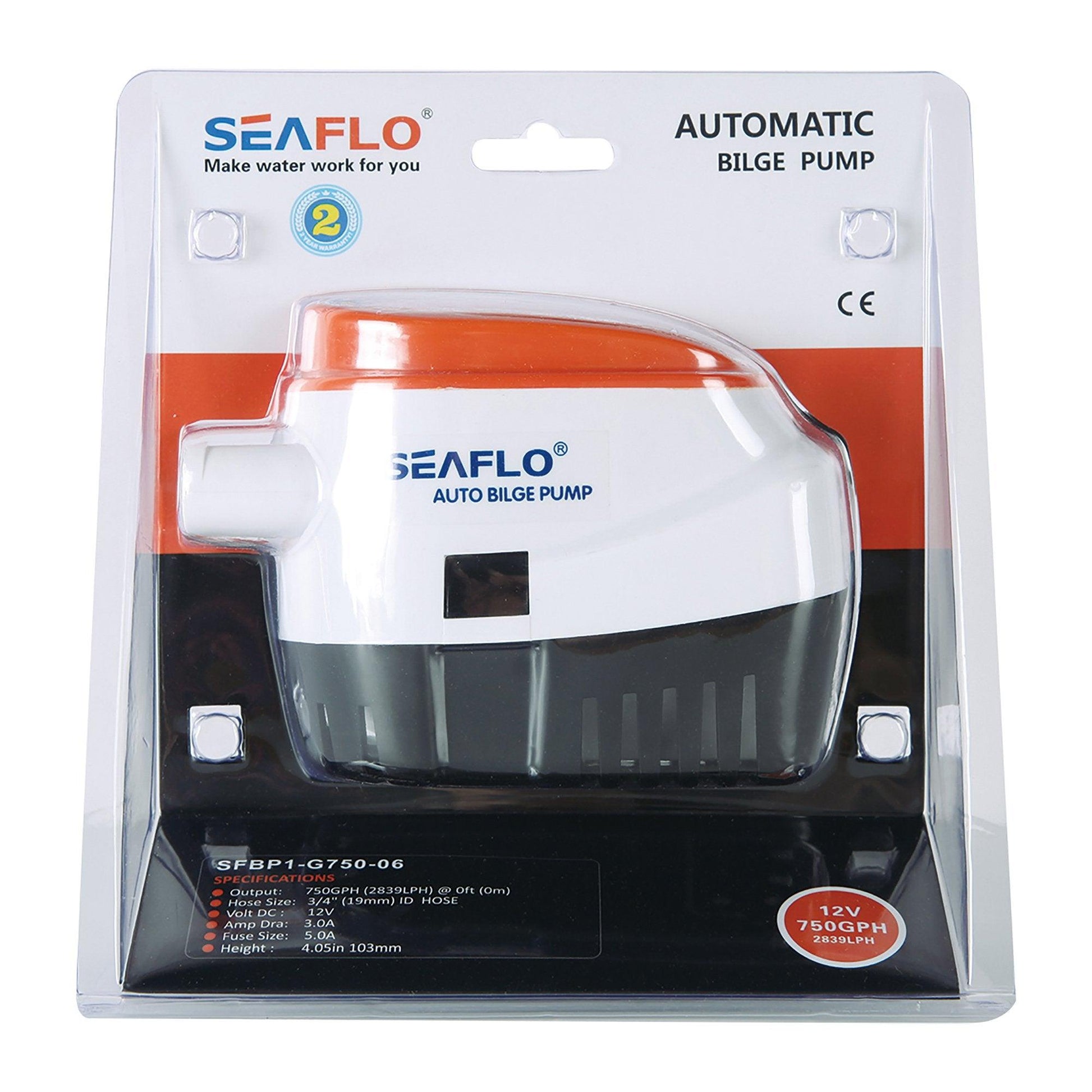

SEAFLO 24V 750GPH Automatic Bilge Pump
Premium 06-Series SFBP2-G750-06
The SEAFLO 06-Series represents the pinnacle of compact, reliable bilge management. This 24V automatic submersible pump features an integrated float switch, eliminating the need for separate installation components. Designed for harsh marine environments, it utilizes an anti-fouling impeller and a robust moisture-tight seal to ensure consistent performance in small to mid-sized vessel bilges.

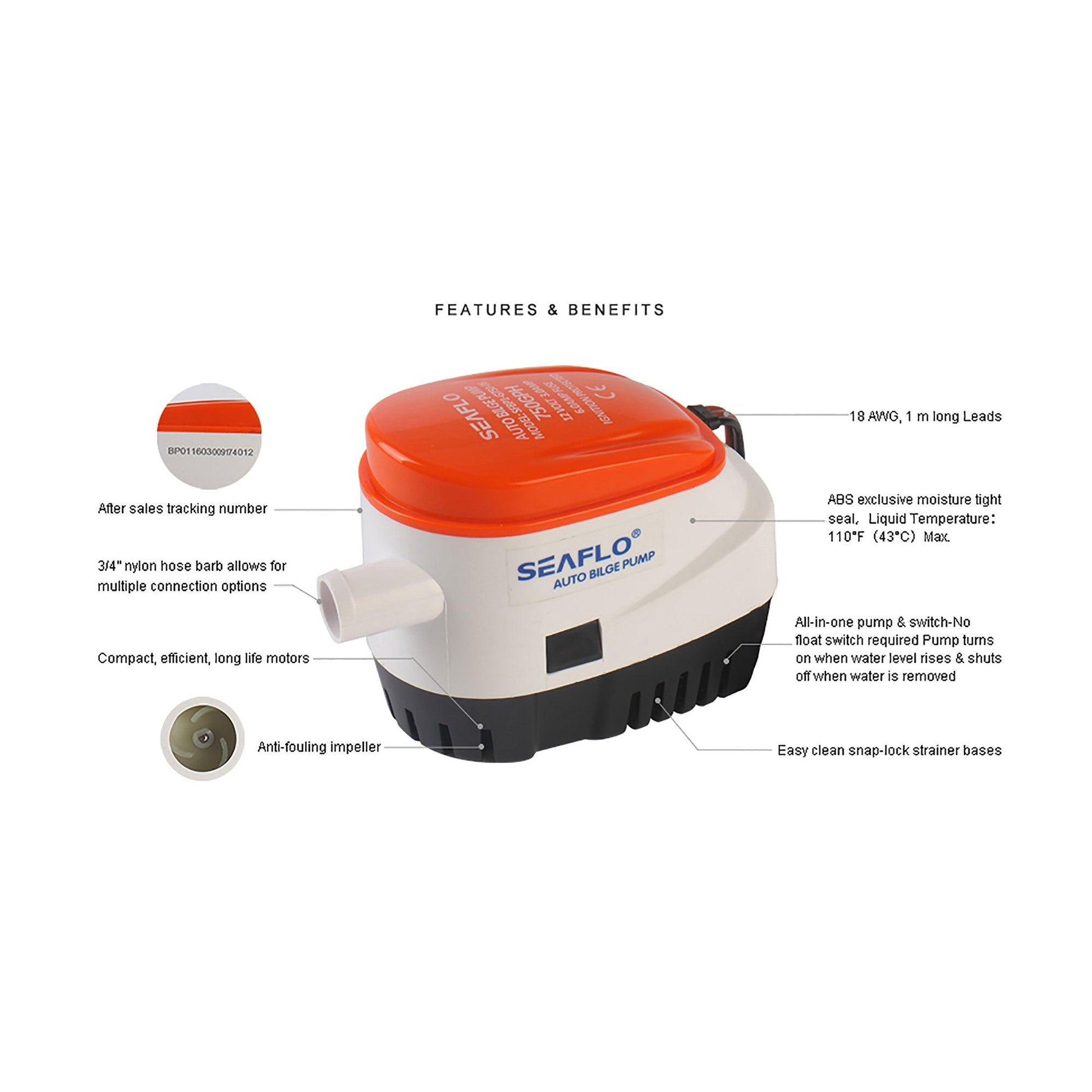

Key Features
- ✔ All-in-One Design: Integrated float switch for automatic operation.
- ✔ Eco-Friendly: Will not pump straight motor oil that enters the bilge.
- ✔ Easy Maintenance: Snap-off strainer base for quick cleaning.
- ✔ Durability: Stainless steel shaft and anti-airlock protection.
Technical Specs
| Voltage | 24V DC |
| Flow Rate | 750 GPH (2839 LPH) |
| Current Draw | 1.6 Amps |
| Fuse Size | 3.0 Amps |
| Max Head | 3.0m (approx 10ft) |
| Outlet Dia | 19mm (3/4") |
| Wire Lead | 18 AWG, 1m Length |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Marine Bilge | Vessels up to 25-30ft | Standard for 24V electrical systems |
| Dewatering | Sump or Small Compartments | Submersible use only |
OEM Cross Reference
| SEAFLO | SFBP2-G750-06 / BP2G75006 |
| Osculati | Europump II 750 (24V) |
| Rule Equivalent | Rule-Mate RM750-24 |
| Johnson Equivalent | Ultima 750 GPH (24V) |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from SEAFLO, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. Ensure your vessel utilizes a 24-volt electrical system, as this pump will not operate on standard 12V systems.
Can I use this with a manual override switch?
Yes, this pump features a three-wire configuration which allows for both fully automatic operation and manual override via a dashboard switch.
Note: Please verify your original part number and system voltage against the references above before purchasing. Domain: 4boats.co.uk.
