SEAFLO 8L Accumulator Tank 87PSI Max Marine RV Water Pump Pressure AT08702101
SEAFLO 8L Accumulator Tank 87PSI Max Marine RV Water Pump Pressure AT08702101
Couldn't load pickup availability

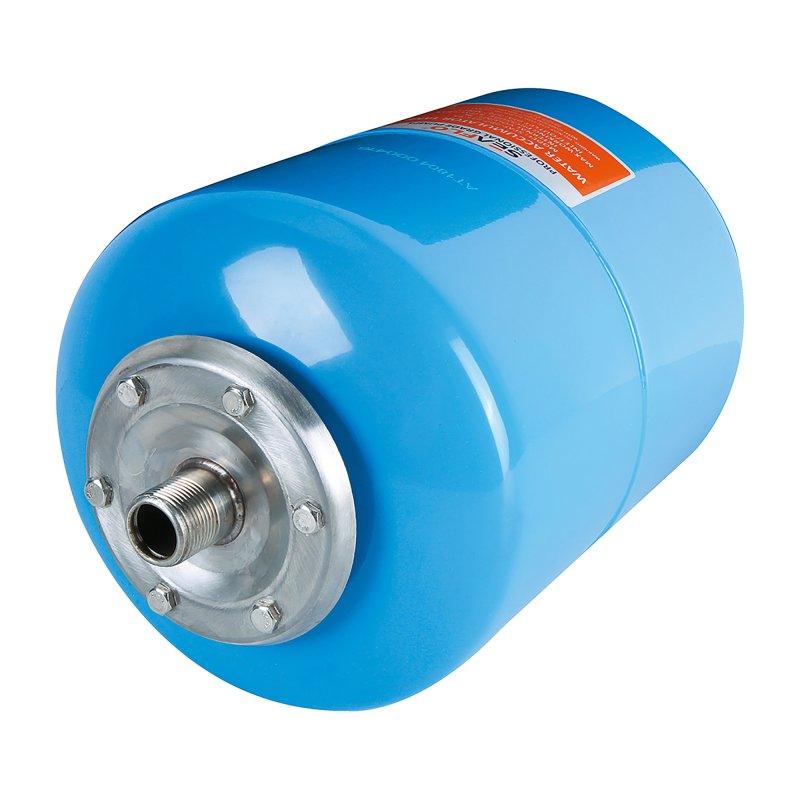

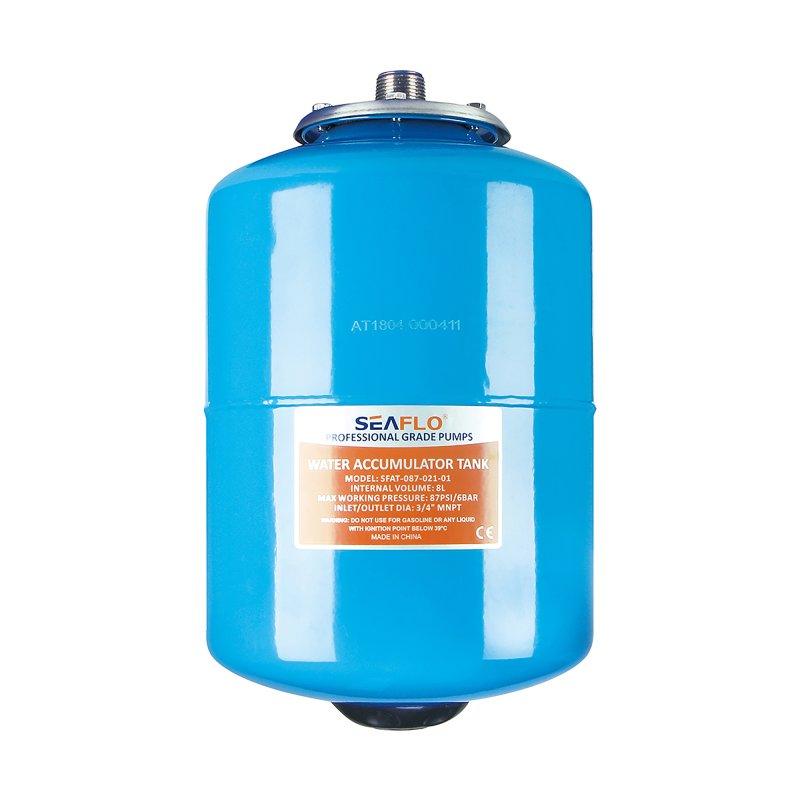

SEAFLO 8L Accumulator Tank (AT08702101)
Premium Quality Replacement Part for Marine & RV Water Systems
The SEAFLO AT08702101 is a high-performance 8-litre (2 gallon) accumulator tank designed to act as a pressure buffer for your on-board water system. By storing a reservoir of pressurized water and air, it effectively smooths out flow pulsations and prevents the frequent rapid cycling of the water pump. This results in a much quieter water system and significantly extends the service life of your pump and battery.

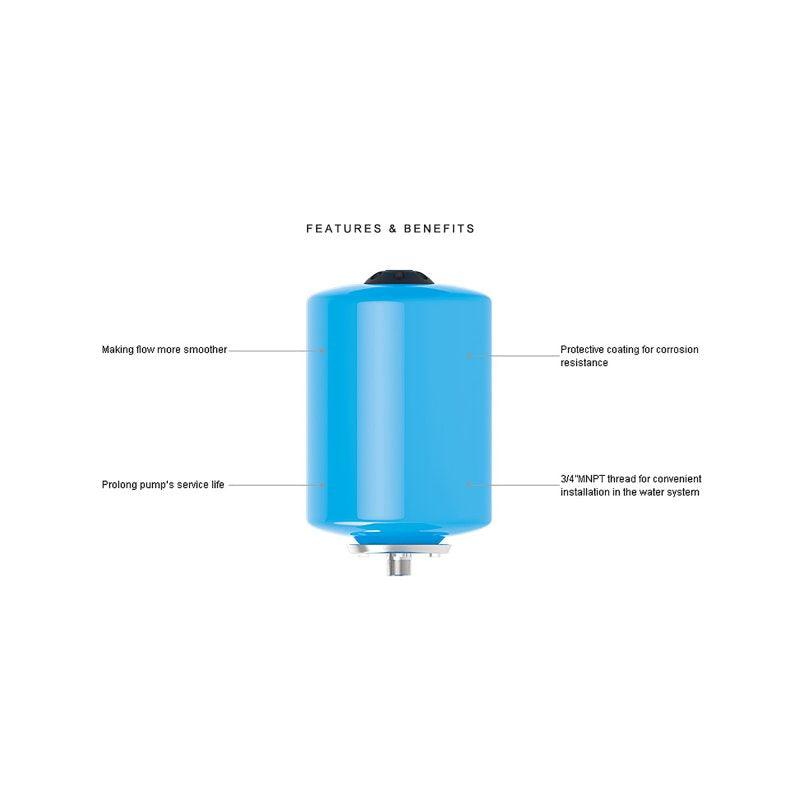

Key Features
- ✔ Direct fit for most pressurized water systems
- ✔ Reduces pump rapid cycling & noise
- ✔ FDA-safe food-grade EPDM internal bladder
- ✔ Can be mounted in any orientation
- ✔ Standard automotive style air valve for easy pre-charge adjustment
Technical Specs
| Model (SKU): | AT08702101 |
| Volume: | 8 Litres (2 Gallons) |
| Max Pressure: | 87 PSI (6.0 Bar) |
| Factory Pre-charge: | 30 PSI (± 5 PSI) |
| Inlet/Outlet Port: | 3/4" MNPT Thread |

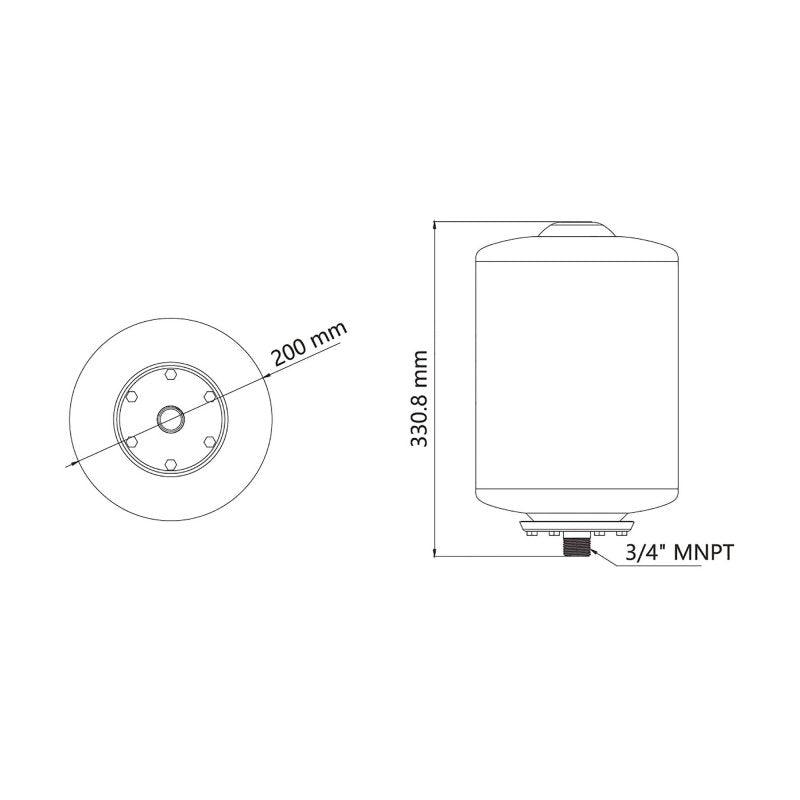

| Dimensions: | 331mm x 200mm |
| Net Weight: | 2.0 kg |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Marine / Yacht | Freshwater Systems | Compatible with 12V/24V pumps |
| RV / Caravans | Pressurized Water Loops | Ideal for multi-fixture systems |
| Solar / Off-Grid | Gravity or Pump Feed | Reduces battery drain on pumps |
| Heating / Boilers | Expansion Tank Use | Max temperature 60°C |
OEM Cross Reference
| SEAFLO Part Number | AT08702101 / SFAT-087-021-01 |
| Jabsco Reference | 23250-0000 (Equivalent size/function) |
| Other Brands | Universal 8L Marine Accumulator Tank |
Questions & Answers
Is this a genuine original part?
This is a premium quality SEAFLO part, manufactured to meet or exceed original equipment standards for fitment and high-pressure performance.
How do I know if it is compatible?
Check your existing port sizes (this unit uses 3/4" MNPT) and space availability. If your system relies on a pressurized diaphragm pump, this 8L tank will be a suitable upgrade or replacement.
What is the recommended pre-charge pressure?
For optimal operation, the pre-charge should be set at ~3 PSI below your water pump's "cut-in" (start) pressure. You can adjust this using the standard tire-style air valve on the tank.
Note: Please verify your existing connection threads and dimensions against the technical specs provided above before purchasing from 4boats.co.uk.
