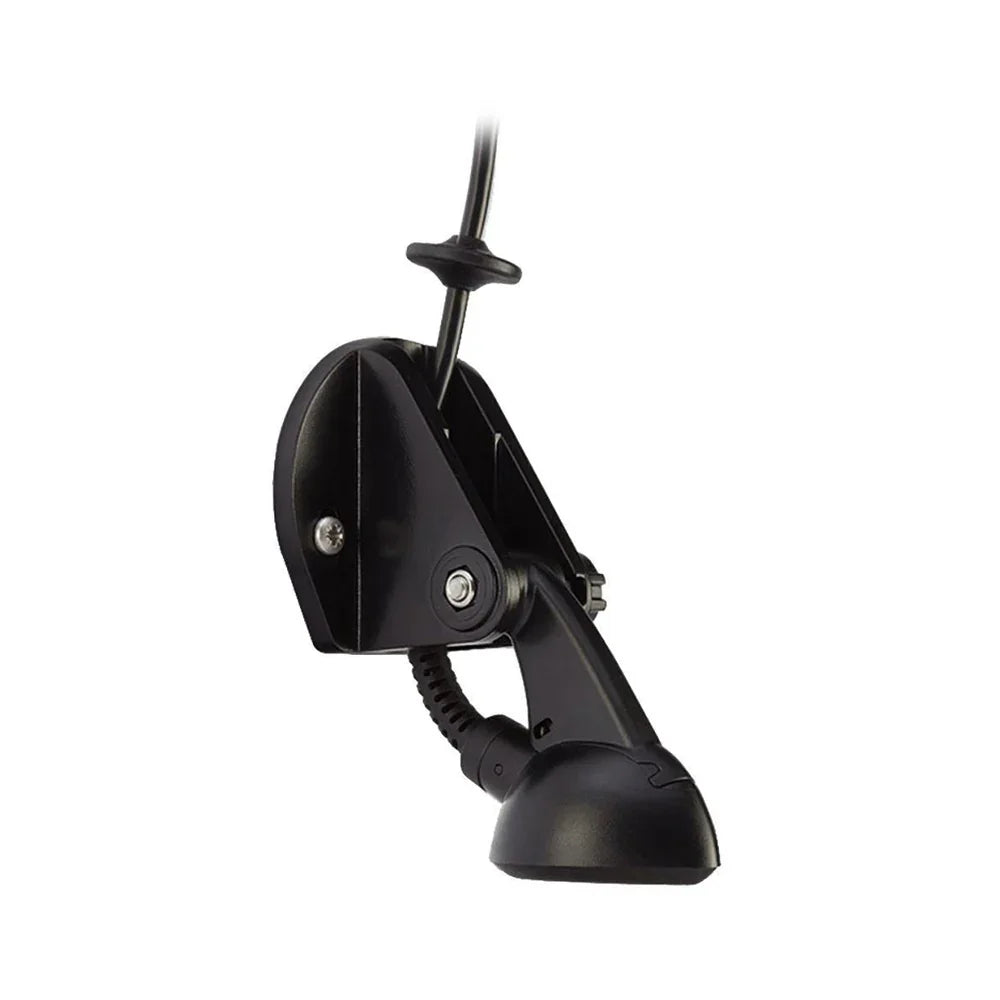

Raymarine CPT-S Transom Mount Transducer (E70342)
High-Definition CHIRP Sonar with Depth & Temperature
The Raymarine CPT-S (E70342) is a high-performance transom mount transducer designed to deliver crystal-clear sonar imagery using High CHIRP technology. Engineered for simplicity and efficiency, this plastic/urethane transducer provides accurate depth and seawater temperature data in a compact, easy-to-install package. It is the ideal choice for small to medium-sized boats with outboard engines looking for reliable bottom tracking at speed.
Key Features
- ✔ High CHIRP sonar (170 - 230 kHz)
- ✔ Wide 25° conical beam angle
- ✔ Integrated seawater temperature sensor
- ✔ Quick-install kick-up transom bracket
- ✔ Slim design for low drag
Technical Specs
| Frequency | 170-230 kHz (High CHIRP) |
| Beam Width | 25° Conical |
| Max Depth | 900 ft (274 m) |
| Cable Length | 10 Meters (32.8 ft) |
| Connector | 9-Pin Male |
| Material | Plastic / Urethane |
Compatibility / Fitment Guide
| Raymarine Series | Connection Type | Notes |
|---|---|---|
| Element S Series | Direct Plug-and-Play | Optimized for Element S displays. |
| Axiom / Axiom Pro / Axiom XL | Requires Adapter A80490 | 9-pin to 25-pin adapter required. |
| Element HV Series | Requires Adapter A80559 | Only supports High CHIRP (no HyperVision). |
| CP100 Sonar Module | Direct Plug-and-Play | Compatible with CP100 modules. |
| aSeries/eS Series (ending in x8) | Direct Plug-and-Play | Compatible with a68, a78, eS78, etc. |
OEM Cross Reference
| Raymarine Part Number | E70342 |
| UPC / EAN | 723193813102 |
Questions & Answers
Is this a genuine Raymarine part?
Yes, this is an authentic Raymarine CPT-S High CHIRP transducer, manufactured to original equipment standards for maximum performance and durability.
Does it support DownVision sonar?
No, the CPT-S series is strictly a High CHIRP sonar transducer and does not include DownVision or SideVision elements. For DownVision, you would typically look at the CPT-100 or CPT-DV series.
What is included in the box?
The package includes the CPT-S transducer with 10m cable, a plastic kick-up transom mounting bracket, and all necessary stainless steel installation hardware.
Note: Please verify your display unit's connector and compatibility against the references above before purchasing. This product is not compatible with the Raymarine Dragonfly series.
