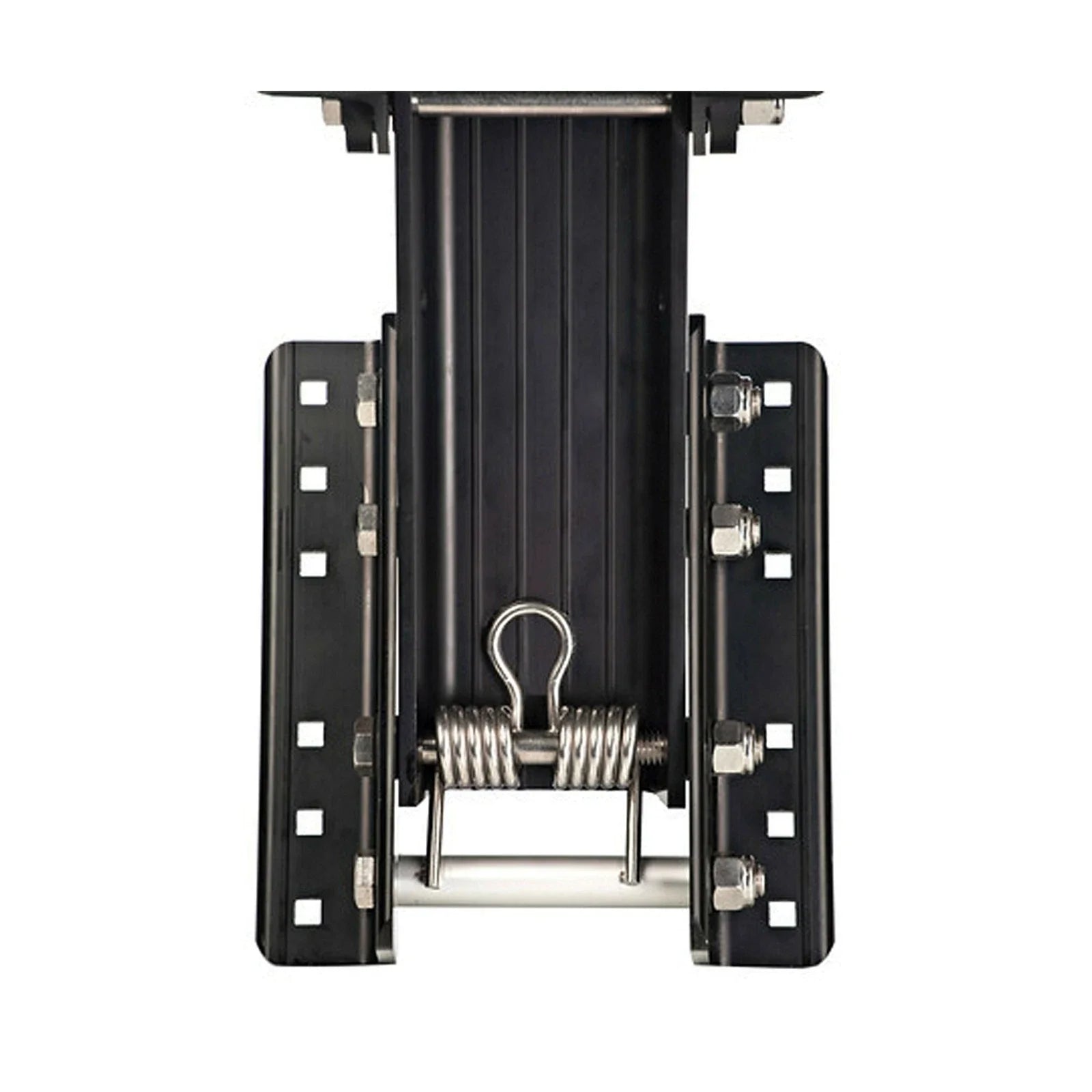

RELIABILITY: Built with heavy-duty stainless steel torsion springs to counterbalance motor weight, making vertical adjustments effortless even with heavy 4-stroke outboards.

Key Features

• ✔ 5-Position vertical locking mechanism
• ✔ Hard-coat black anodized aluminum finish
• ✔ 2" thick extra-wide polypropylene board
• ✔ Aircraft-type stainless steel hardware
• ✔ Includes 55-0415 safety cable

Technical Specs

Max HP Rating:	35 HP
Max Motor Weight:	263 lbs (120 kg)
Vertical Travel:	10 Inches
Setback (Up):	8.75 Inches
Setback (Down):	14 Inches
Board Dimensions:	11.5" x 12"

Engine Type	Max Capacity	Application Notes
4-Stroke Outboard	Up to 35 HP	Designed for modern high-torque auxiliary motors.
2-Stroke Outboard	Up to 35 HP	Universal fit for standard transom-mount clamps.
Shaft Length	Short or Long	Adjustable positions allow for fine-tuning prop depth.

Is this a genuine original part?

Yes, this is an authentic Panther Marine product, engineered to the highest marine standards for auxiliary engine mounting.

How do I know if it is compatible?

This bracket is compatible with any outboard motor up to 35HP and 263lbs that uses a standard transom-style screw clamp mount. Verify your engine weight before purchase.

Can the springs be adjusted or replaced?

The heavy-duty torsion springs are factory-set to counterbalance the weight of 4-stroke motors. For safety reasons, you should not attempt to remove or replace the springs manually.

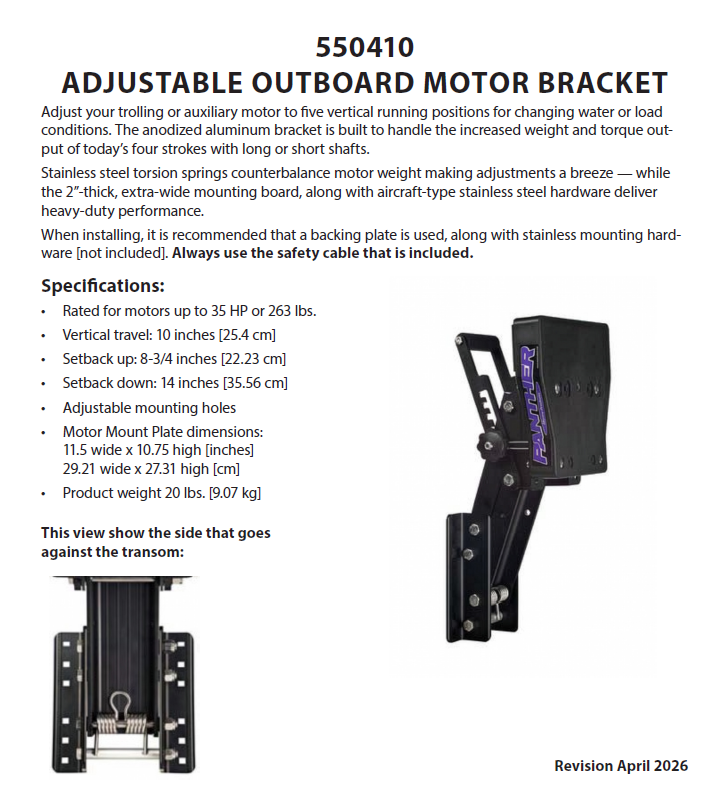

Owner Manual
