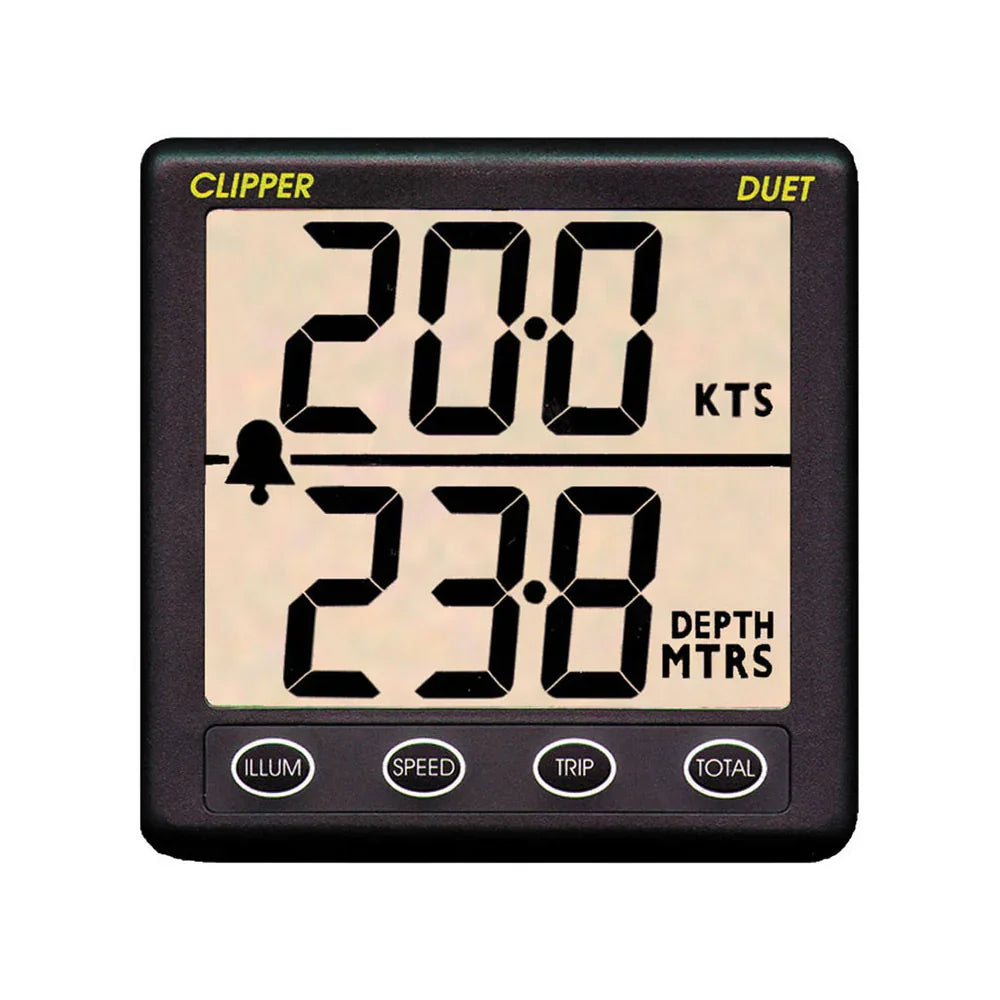

NASA Clipper Duet Marine Speed Depth Log System Instrument + Transducers 12V
NASA Clipper Duet Marine Speed Depth Log System Instrument + Transducers 12V
Couldn't load pickup availability
NASA Clipper Duet System
Combined Speed, Log & Echo Sounder
The NASA Clipper Duet is one of the world's best-selling marine instruments, combining a precision echo sounder and a speed/distance log into a single, space-saving unit. Designed for the harsh marine environment, it features a high-contrast, backlit display with massive 20mm digits, ensuring critical data is readable from across the cockpit in all lighting conditions.
Key Features
- ✔ Dual Display: Depth and Speed shown simultaneously
- ✔ Complete Kit: Includes both Speed and Depth transducers
- ✔ User-Adjustable: Selectable units (Metres/Feet, Knots/MPH/KPH)
- ✔ Safety Alarms: Audible shallow water and speed limit warnings
- ✔ Smart Offset: Programmable keel offset for true depth safety
Technical Specs
| Voltage: | 12V DC |
| Current: | 20mA (65mA with backlight) |
| Dimensions: | 110mm x 110mm |
| Cut-out Size: | 87mm x 67mm |
| Frequency: | 150kHz (Depth) |
| Backlighting: | Adjustable 3-Level Red |
Compatibility / Fitment Guide
| Requirement | Details | Notes |
|---|---|---|
| Hull Type | GRP (Glass Reinforced Plastic) | Standard for through-hull/in-hull |
| Power Supply | 12V DC Battery Systems | Low power consumption |
| Installation | Cockpit or Cabin Panel | Weatherproof front face |
OEM Cross Reference
| Manufacturer Part Number | CLIP-DUET / CLIPPER DUET |
| Alternate Codes | NC89, CN TE440804, 1730501 |
| System Type | Clipper Navigation Series |
Questions & Answers
Is this a genuine NASA Marine part?
Yes, this is an authentic NASA Marine product manufactured in the United Kingdom, supplied as a complete kit with transducers and a weather cover.
How do I know if it is compatible?
We recommend checking the SKU (CLIP-DUET). This system is compatible with standard 12V marine power and fits any standard 110mm instrument cut-out. It is ideal for GRP hulls where through-hull transducers can be fitted.
Can the depth transducer be mounted inside the hull?
Yes, the depth transducer can be mounted "in-hull" using a separate NASA In-Hull Mounting Kit (sold separately), provided the hull is solid GRP and not a sandwich/cored construction.
Note: Please verify your vessel's hull type before installing transducers. Always follow the included NASA Marine wiring diagram for 12V connections at 4boats.co.uk.
