Lalizas AISI 316 Stainless Steel Boat Davit 85kg Max Lift 60mm Tube 70141
Lalizas AISI 316 Stainless Steel Boat Davit 85kg Max Lift 60mm Tube 70141
Couldn't load pickup availability

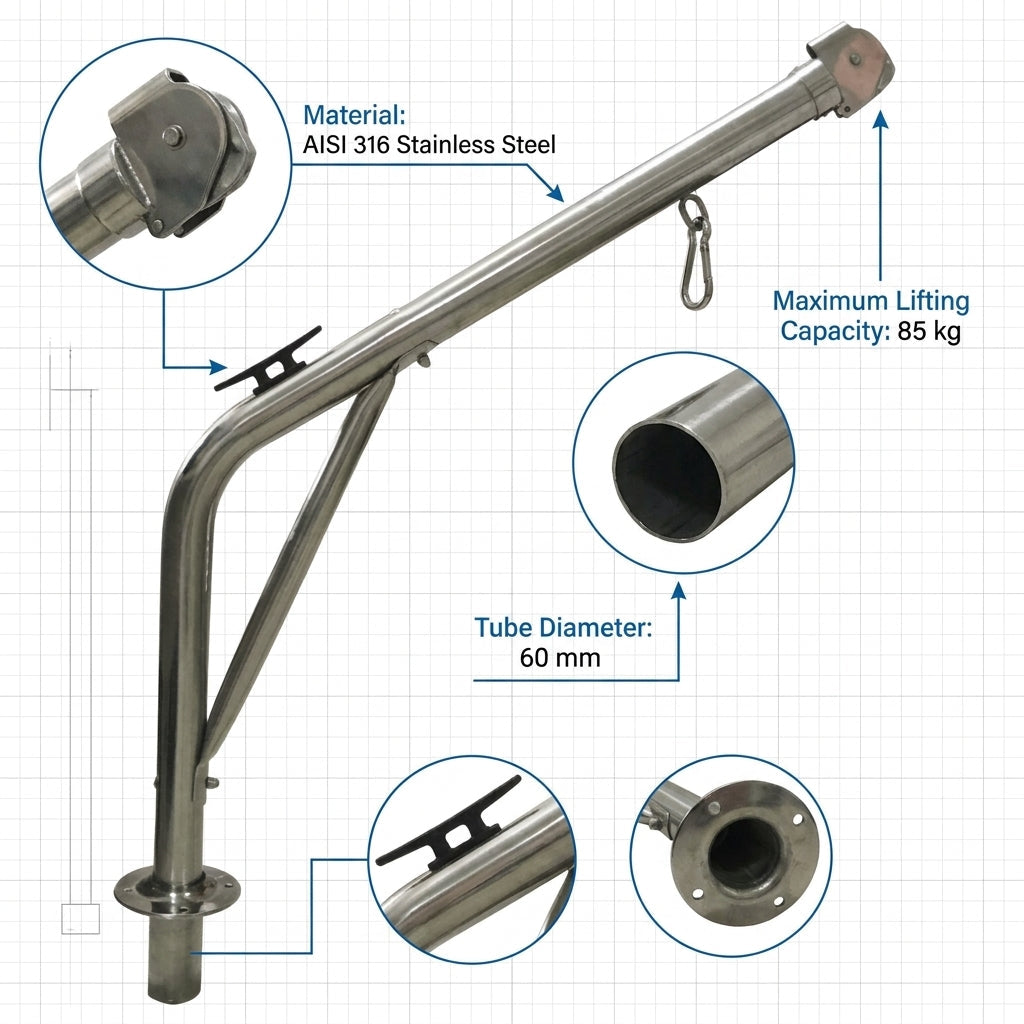

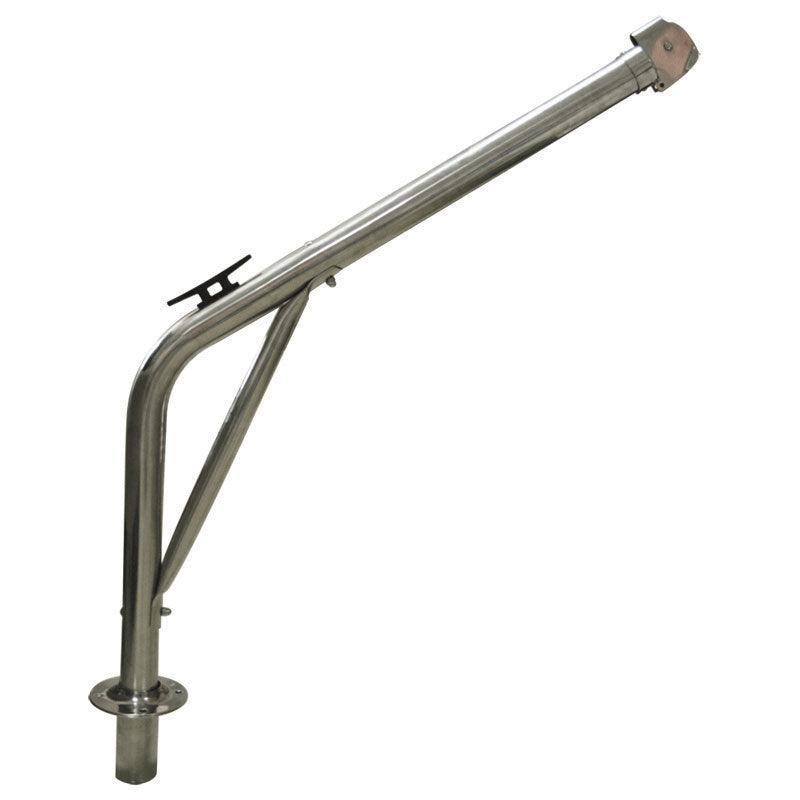

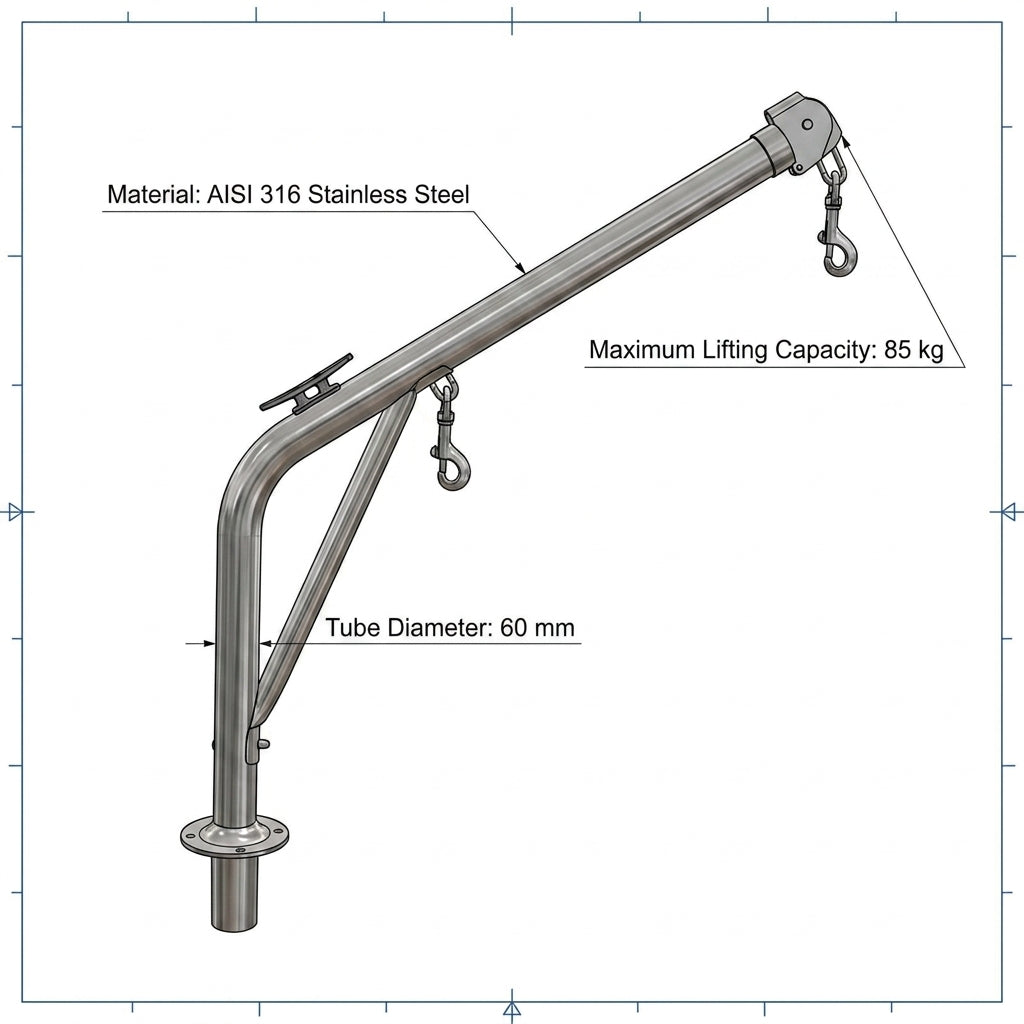

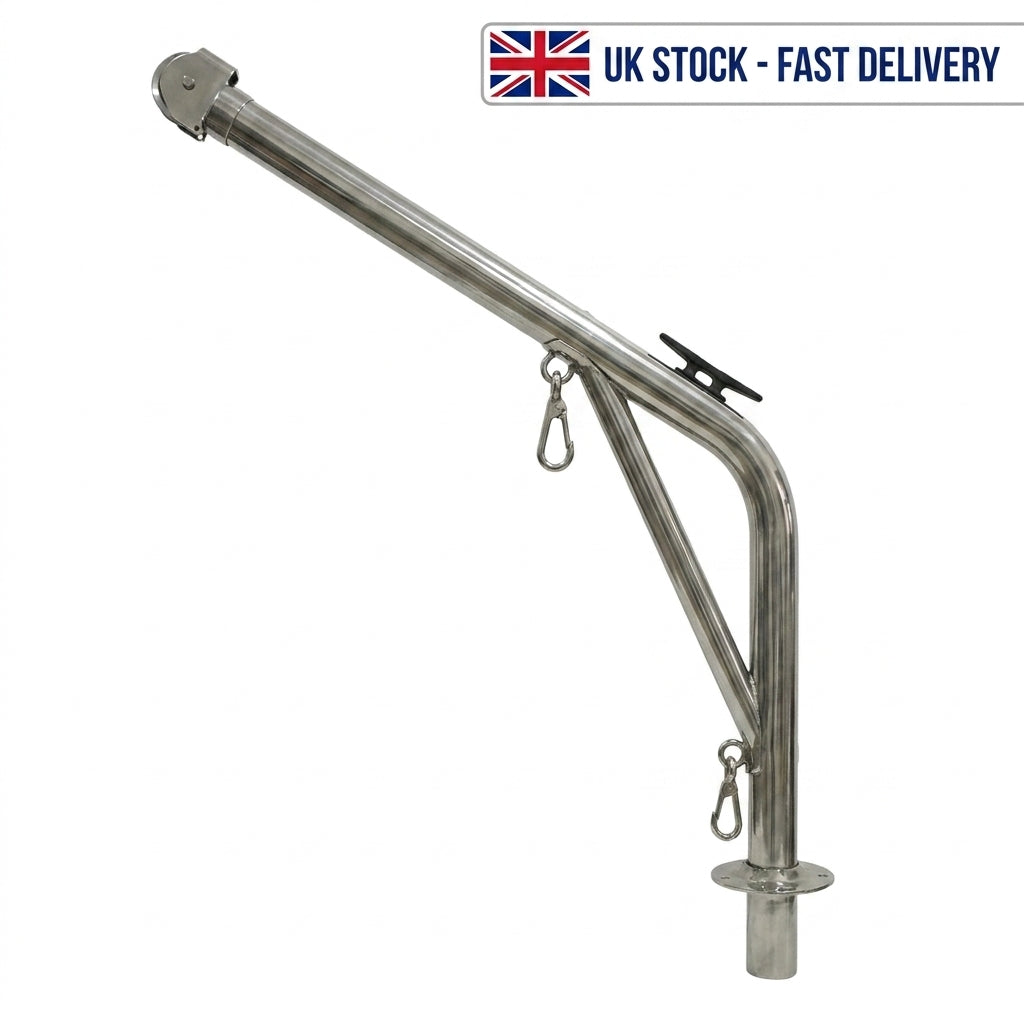

AISI 316 Stainless Steel Davit - 85kg
Lalizas Premium Marine Lifting System (SKU: 70141)
Upgrade your vessel's utility with this premium AISI 316 Stainless Steel Davit. Engineered for the harsh marine environment, this davit is designed to provide a reliable and elegant solution for lifting and storing tenders, dinghies, or jet skis. The mirror-polished finish not only looks professional but provides maximum resistance to salt-water corrosion.
Key Features
- ✔ Marine Grade: AISI 316 Mirror Polished Stainless Steel
- ✔ High Capacity: 85kg safe working load
- ✔ Swivel Design: Easy positioning of your tender
- ✔ Removable: Can be removed from the socket when not in use

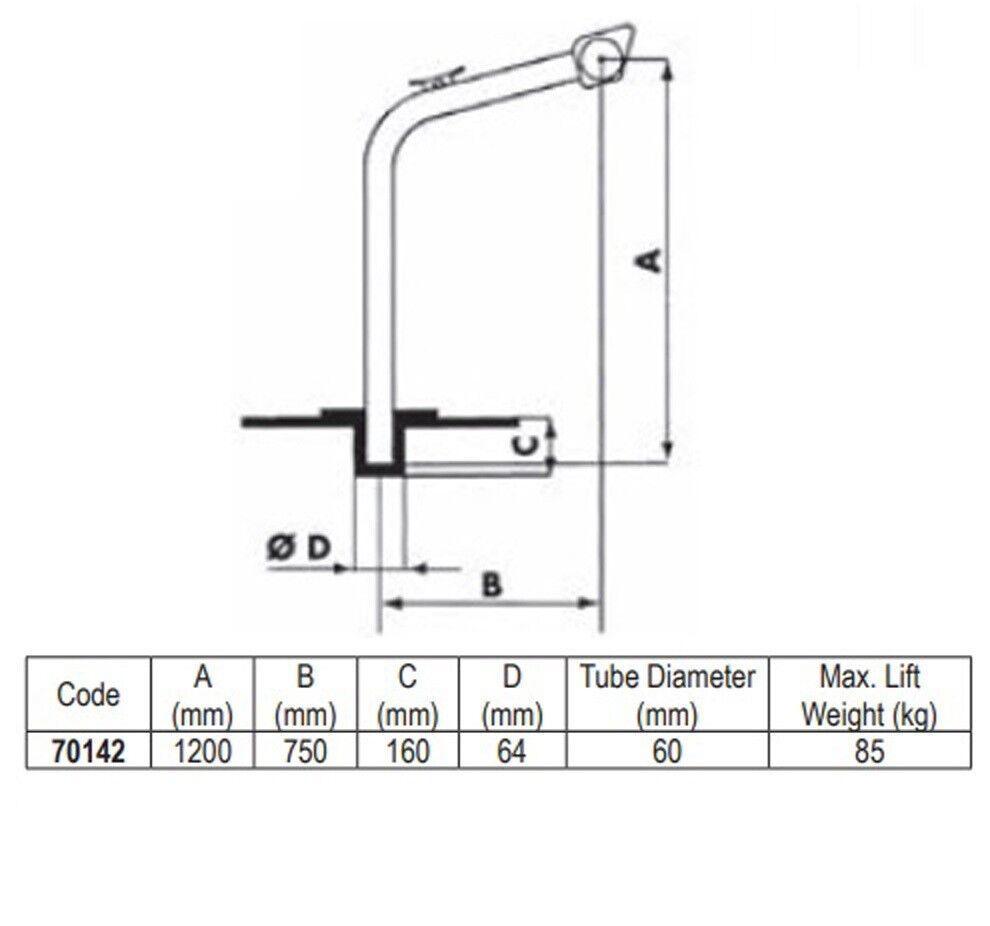

Technical Specs
| Tube Diameter | 60 mm |
| Max Lift Height (A) | 1200 mm |
| Reach/Projection (B) | 750 mm |
| Socket Depth (C) | 160 mm |
| Base Outer Dia (D) | 64 mm |
| Max Load | 85 kg |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Inflatable Tenders | Manual Lifting | Suitable for most SIBs/RIBs under 85kg. |
| Outboard Engines | Cargo/Utility | Ideal for lifting 4-stroke outboards to rail. |
| Deck Mounting | Flush Mount Socket | Requires 64mm diameter deck clearance. |
OEM Cross Reference
| Lalizas MPN | 70141 |
| Industry Ref | AISI 316 Davit 85kg / 60mm |
Questions & Answers
Is this a genuine original part?
This is a high-quality Lalizas marine component, manufactured to international yachting standards for reliability in offshore conditions.
How do I know if it is compatible?
Check the total weight of your tender plus your outboard motor. If the combined weight is 85kg or less, this arm is rated for the load. Ensure your deck has the 160mm depth required for the socket.
Does it include the mounting socket?
Yes, the Lalizas 70141 typically includes the stainless steel deck socket designed to receive the 60mm tube arm.
Note: Please verify your vessel's deck reinforcement and load capacity before installation. Professional fitting is recommended for high-load applications.
